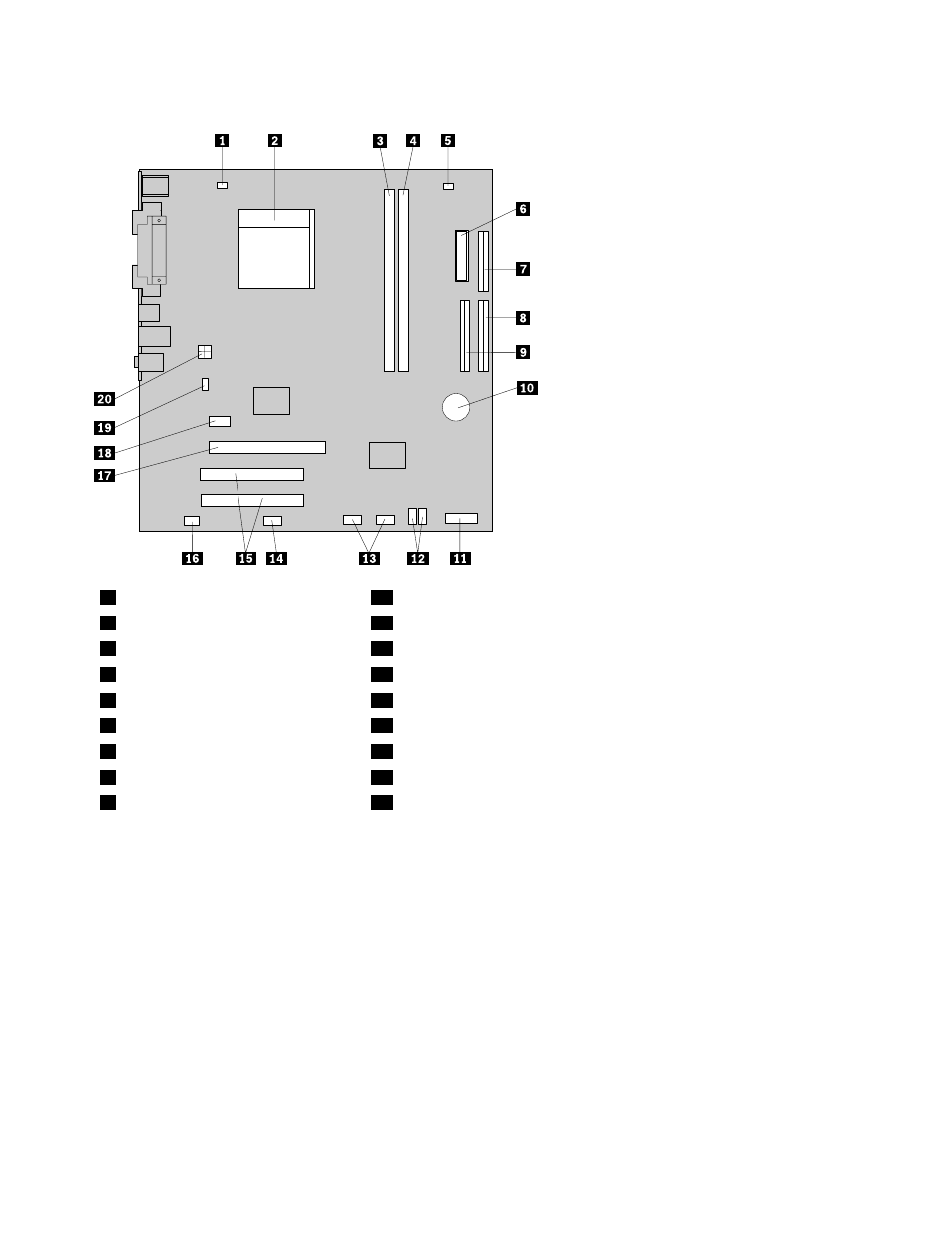

Machine Types 7387, 7388, and 7389

1

Microprocessor fan connector

11

Front panel (power switch/LED) connector

2

Microprocessor and heat sink

12

SATA IDE connectors (2)

3

Memory connector 1

13

Front USB connectors (2)

4

Memory connector 2

14

Serial (COM2 connector)

5

Clear CMOS/Recovery jumper

15

PCI adapter connectors

6

Power supply connector

16

Front audio connector

7

Diskette drive connector

17

PCI Express x16 graphics adapter connector

8

IDE connector 1

18

PCI Express x1 graphics adapter connector

9

IDE connector 2

19

System fan connector
