Small feed roll bracket assembly removal, Small feed roll bracket assembly removal -12 – Lexmark 1020 User Manual
Page 45

Repair Information 4-12
4078-00X
Small Feed Roll Bracket Assembly Removal
1. Remove the front cover.
2. Remove the rear cover.
3. Remove the sheet feeder.
4. Remove the system board.
5. Remove the four small feed roller springs from the carrier frame.
6. Push down on each of the small feed roll assemblies to remove
them from the small feed roll bracket.

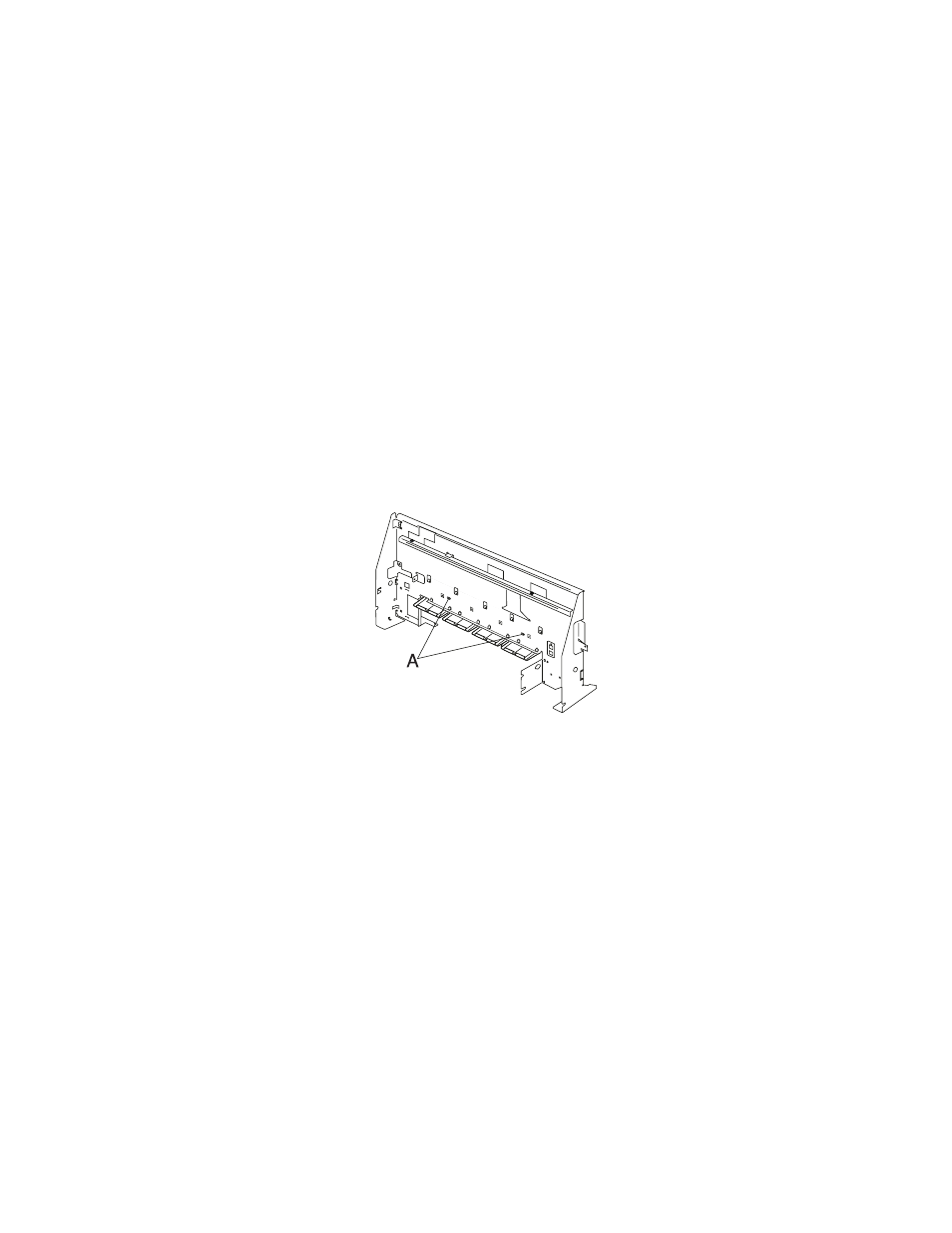

7. Push the two locking tabs [A] to the rear to release the small
feed roll assembly from the carrier frame.
