Rear cover removal, Rear cover removal -10 – Lexmark 1020 User Manual
Page 43

Repair Information 4-10
4078-00X
Rear Cover Removal
1. Remove the front cover.

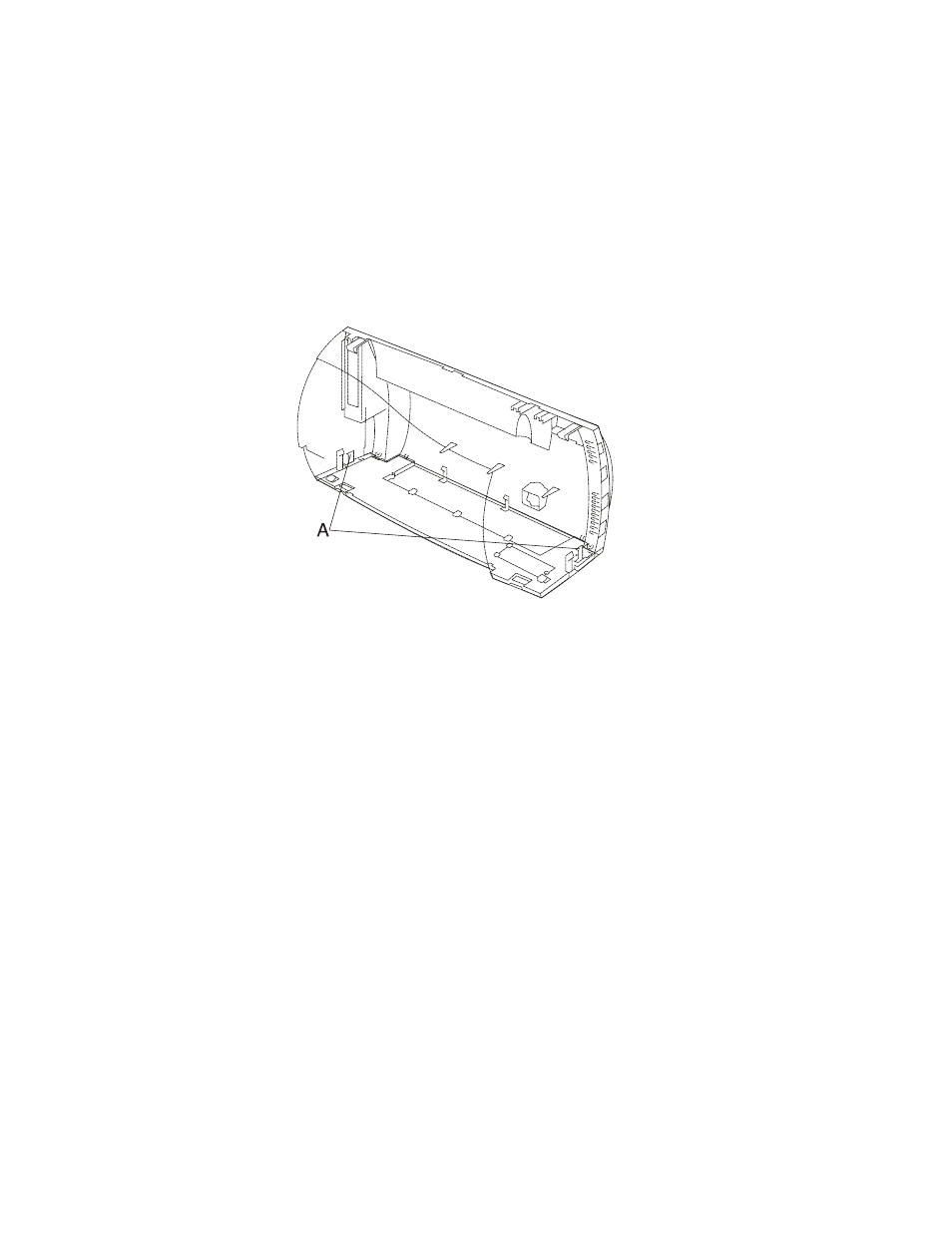

2. Pry upwards on the two rear cover latches [A].
3. Work the tabs of the rear cover free from the base assembly.
4. To reassemble, place the cover over the tabs in the base
assembly and press towards the front of the machine until the
cover latches. Be sure the parallel connector snaps do not get
trapped behind the cover.
