Operating information – Lochinvar Shield SNA285-125 User Manual
Page 50
50
Shield control module
• Press once to go into Menu Mode
• Press again to exit Menu Mode
• Press to toggle between digits when
entering the hour, minutes, etc., or
when entering date and time

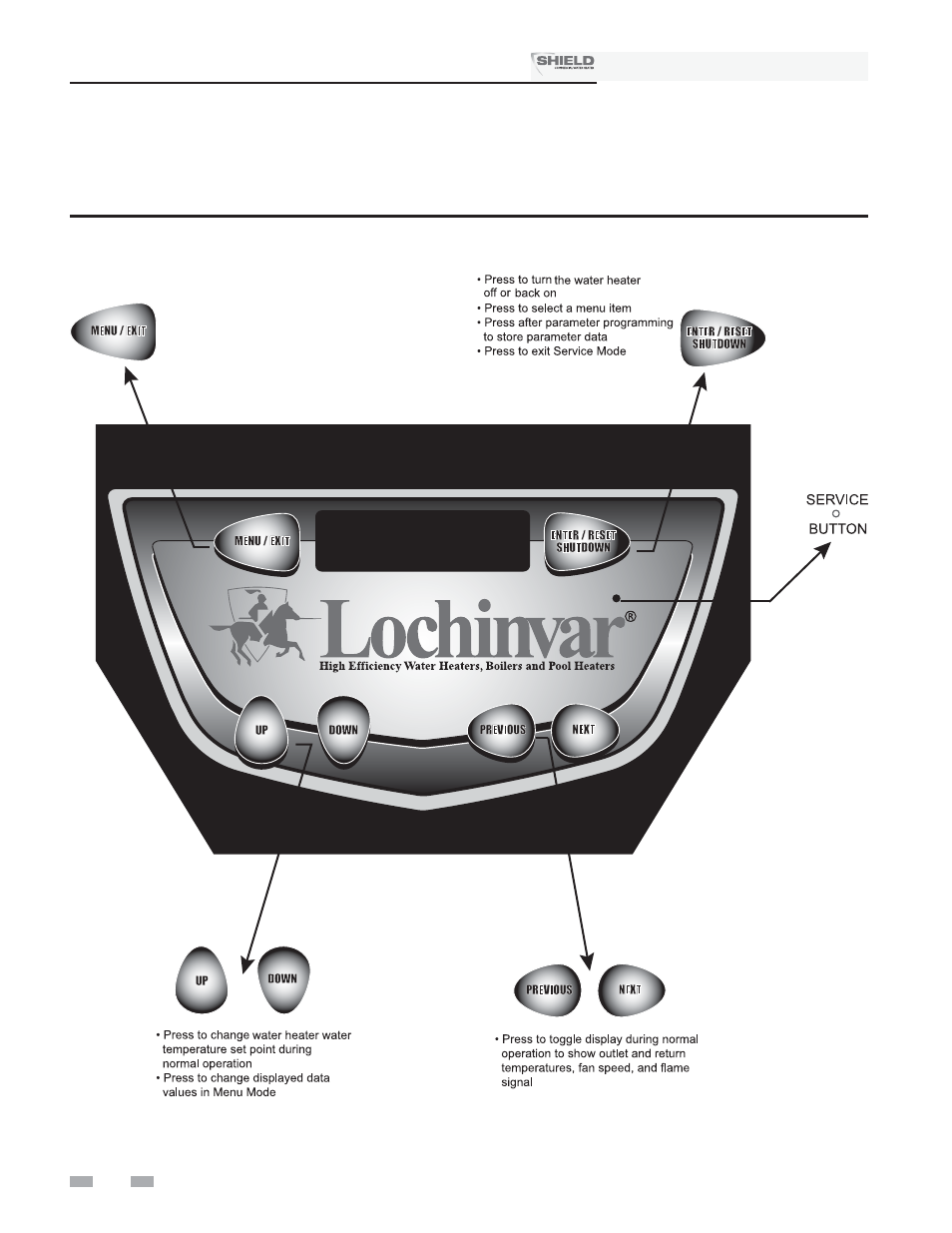

Figure 11-1 Control Panel
Use the control panel (FIG. 11-1) to set temperatures, operating conditions, and monitor water heater operation.
11
Operating information
Installation & Service Manual
