24

3

Sidewall direct venting

Sidewall termination – optional concentric vent

Multiventing sidewall terminations

When two (2) or more direct vent appliances are vented near
each other, each appliance must be individually vented (see
FIG. 3-13). NEVER common vent or breach vent this appliance.
When two (2) or more direct vent appliances are vented near
each other, two (2) vent terminations may be installed as shown
in FIG. 3-13. The vent terminations must be at least 36 inches
away from the first two (2) terminations. It is important that
vent terminations be made as shown to avoid recirculation of
flue gases. Dimension A in FIG. 3-13 represents the distance
between pipes or rain shields, as touching or a 2 inch maximum
separation.

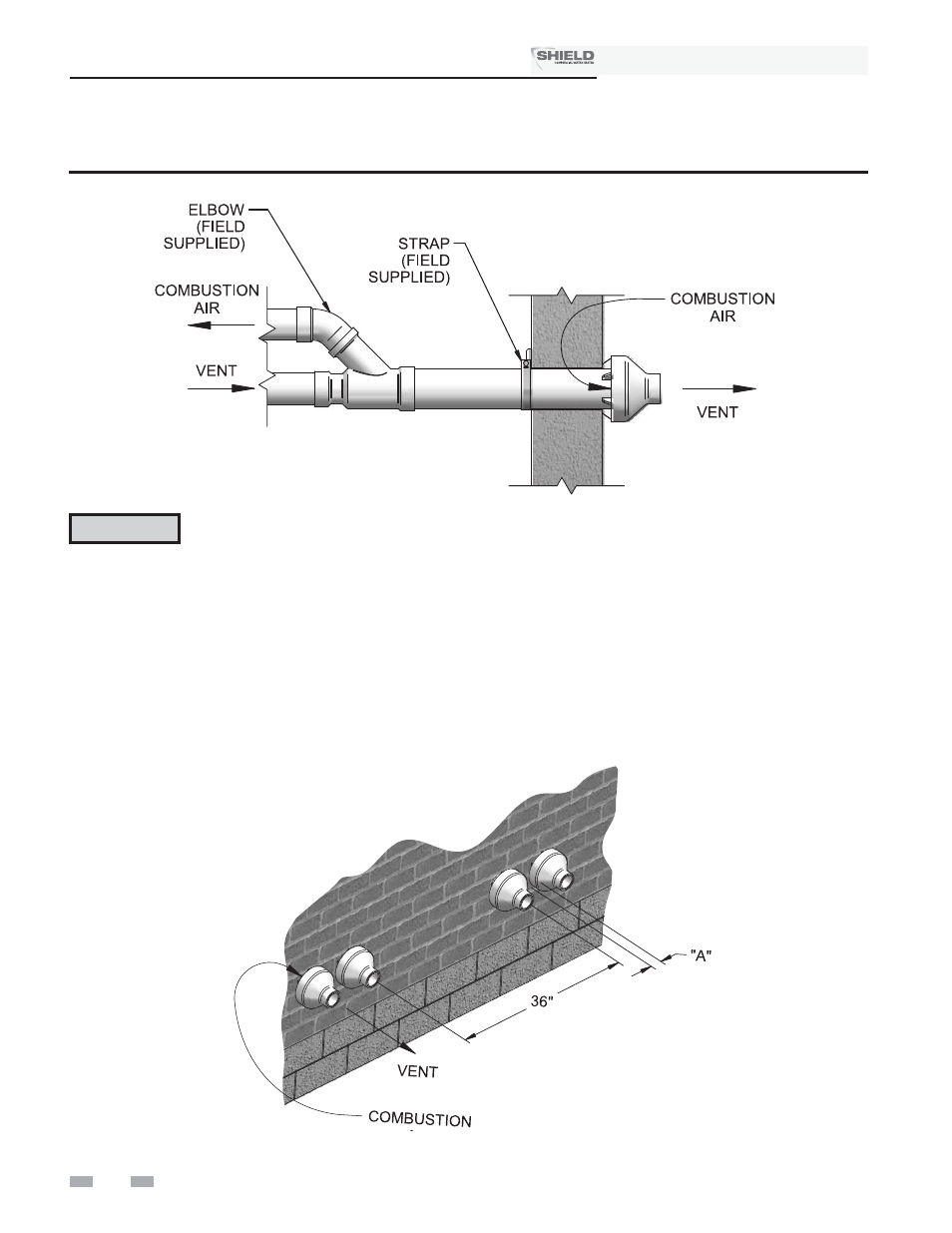

Figure 3-13 Concentric Vent and Combustion Air Termination Dimension A as
Touching or 2 inches Maximum Separation

Figure 3-12 Concentric Vent Sidewall Attachment

DO NOT use field-supplied couplings to
extend pipes. Airflow restriction will
occur and may cause intermittent
operation.

9.

Cement appliance combustion air and vent pipes to the
concentric vent termination assembly. See FIG. 3-12 for
proper pipe attachment.

10. Operate the appliance one (1) heat cycle to ensure

combustion air and vent pipes are properly connected
to the concentric vent termination connections.

CAUTION

Note: CVK3003 shown for illustration purposes.

Installation & Service Manual

TM
