LST MCP5A Series User Manual
Specifi cations description

© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
MCP5A_DBL_LST_EN_0804.PDF • PAGE 1
A
Building Safety. Building Security.
Specifi cations
Description

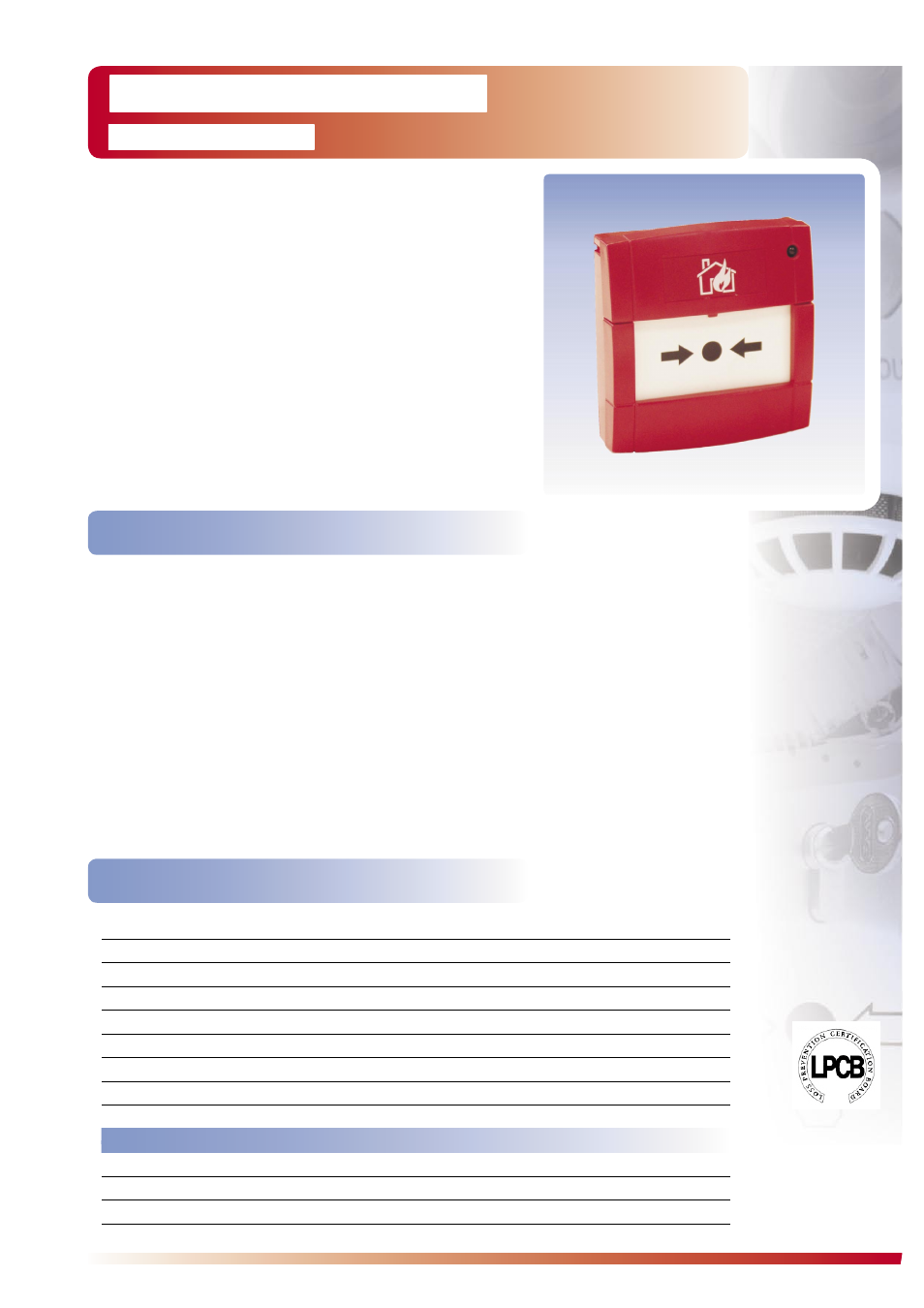

The Manual Call Points Series MCP5A are certifi ed to
