MERLIN LEGEND Communications System Release 6.0
System Manager’s Guide
555-660-118
Issue 1
February 1998
About the System
Page 2-13 Incoming Trunks
2

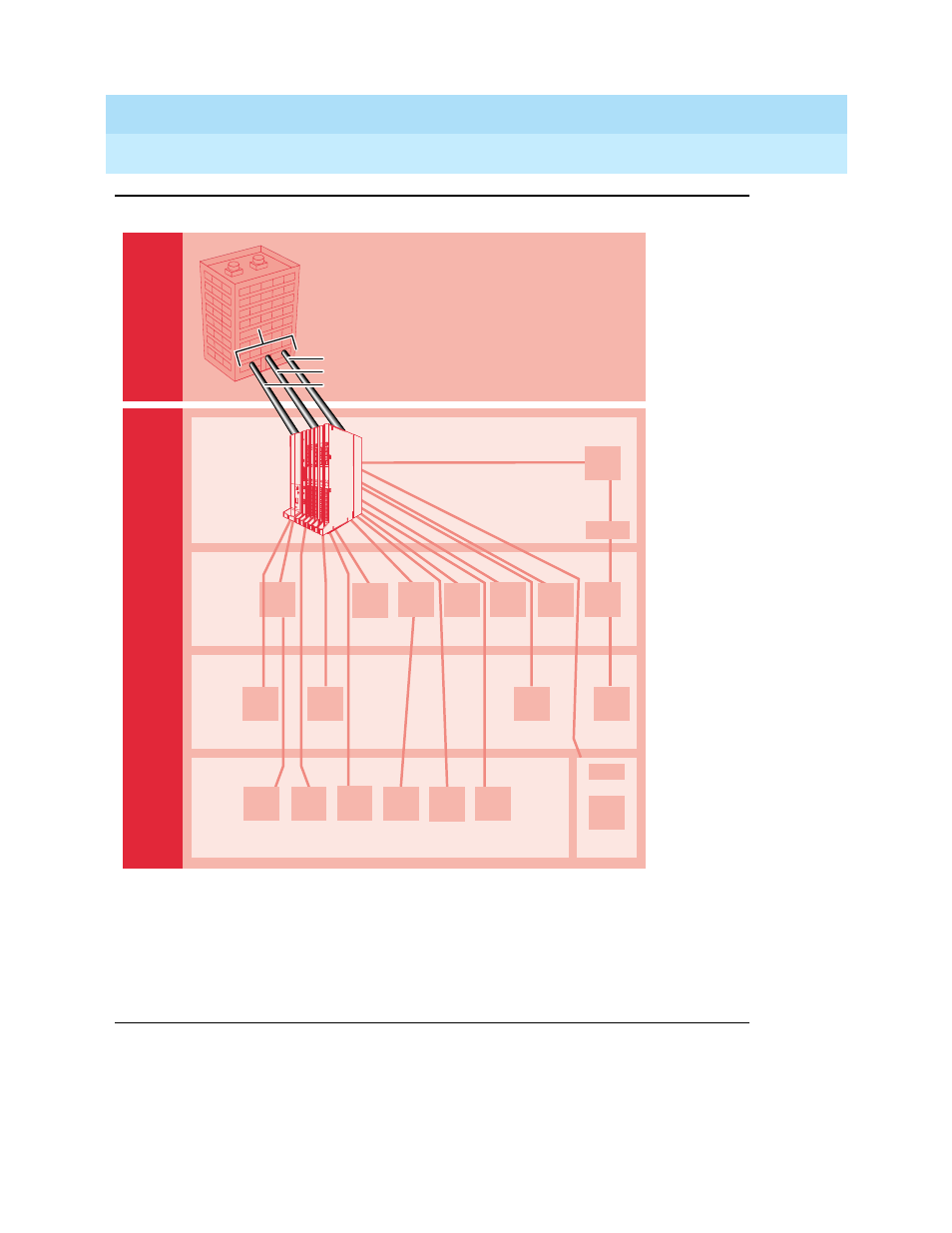

Figure 2–6. Incoming Trunks
Telephone
Company
MERLIN
LEGEND
Auxiliary
Components
Telephones
and Other
Equipment
MERLIN
LEGEND
Communications
System
Control Unit
Applications
Telephone Company
Central Office
(CO)
Incoming Trunks
Loop-Start Trunk
Ground-Start Trunk
Digital Facility
CAUTION POWER
ON OFF
AG INPUT
FR
GND
Turn o ff power b efore insertin g or rem oving modules
408 GS/LS 44GS or LS Outside Lines/ 8 Analog
T elephones
(A TL)
408 008 MLX 8 MLX (Digital)
T elephones
012
PR OCESSOR
