• Detector base for fl ush mounting in
false ceilings
• Conduit box for surface mounting
• Detector base backplate
• Code cards for selection of the
detector address
• Detector mounting bracket
Detector base for fl ush mounting (ADM technology)
Dimensions ш Ч H 150 × 15 (mm)
Colour white
Weight 70g
Order number 246034
Order name Detector Base/Anal./XP95/Disc/Apo 45681-250

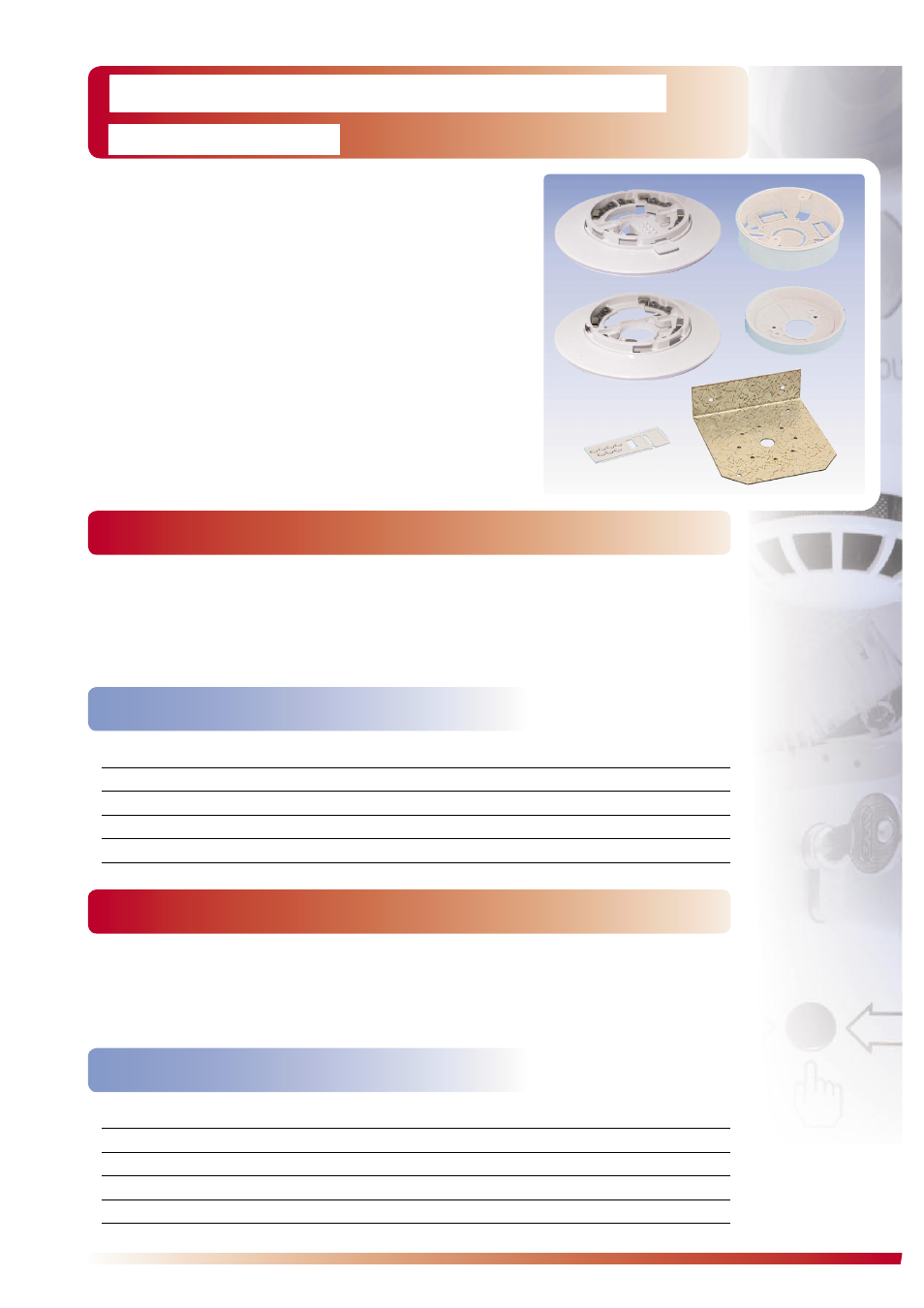

The detector base in fl ush mounting design (fi g. A) ac-
commodates automatic fi re detectors Series XP95 and
Discovery for use in ADM loops with Apollo/Discovery
protocol. It is specially designed for mounting in false
ceilings made of mineral fi bre.
The detector address is selected by means of a code
card in the detector base. Therefore the detector can
be changed without additional tools. The package con-
tents includes a cover plate.
Specifi cations
Detector base for fl ush mounting (conventional technology)
Dimensions ш Ч H 150 × 15 (mm)
Colour white
Weight 70g
Order number 246035
Order name Detector Base/Conv./60/65/Apo 45681-251
The detector base in fl ush mounting design (fi g. B) ac-
commodates automatic fi re detectors in addressable
conventional technology. It is specially designed for
mounting in false ceilings made of mineral fi bre.
Individual detector addressing can be achieved by
connecting the optional Address Module NG60-1. The
package contents includes a cover plate.
Specifi cations
