6
SX .4 Series Amplifiers
F
e
a
tures

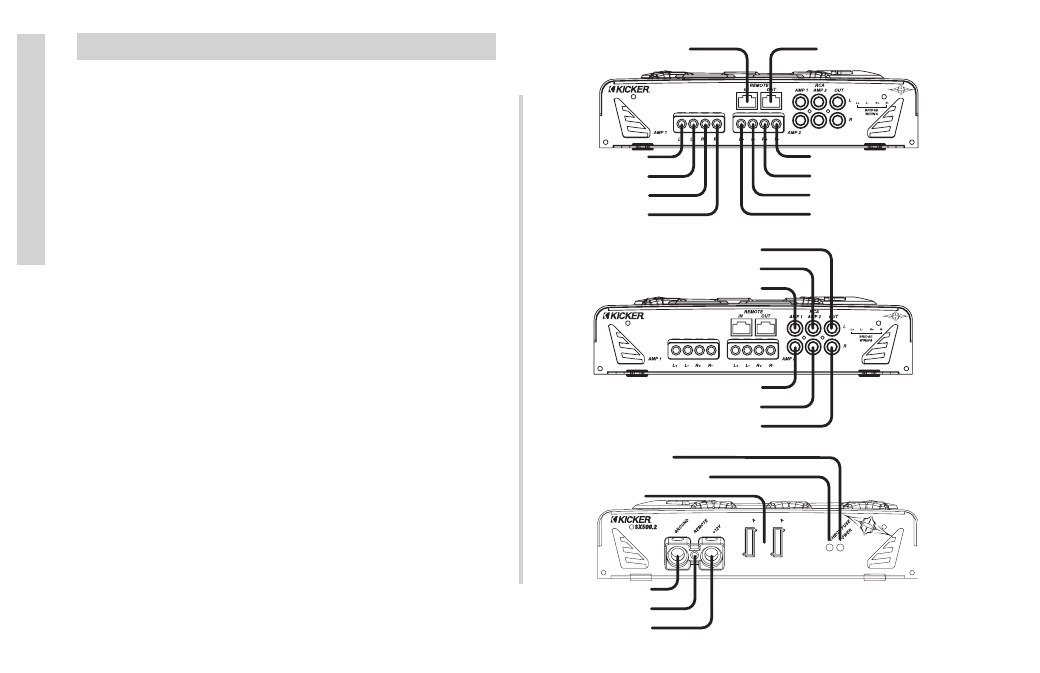

End Panel Views
The BLAST Port is used to connect the Remote Bass Level
Controller and for transferring control signals from one SX
amplifier to another SX amplifier. An RJ45 cable is required to
connect the BLAST Port (Out) of one amp to the BLAST Port (In)
of another. This is only required if you want to control more than
one amplifier with the same Bass Level Controller. More details
on this further in the manual.
The speaker terminals are custom-machined connectors with
full protective shrouds and are designed to accept heavy gauge
speaker wire assures maximum power transfer and damping with
minimal power loss.
Gold-plated RCA input connectors and PAST jacks provide
solid input and output connections for your pre-amp signal.
Custom-machined power block accepts up to a 2 Ga wire for
both power and ground connections and up to an 8 Ga for
remote turn-on assures maximum power transfer with
minimal loss.
On-board fusing (number of fuses vary by amp size) to
protect amplifier against over current conditions and reverse
polarity.
Power LED indicates amplifier is powered up and operating.
Check Fuse LED indicates a fault with the end panel fuses.
This could be fuses which are not seated properly, faulty fuses or
blown fuses.
Left +
Left -
Right +
Right -
BLAST Port In BLAST Port Out
Left +
Left -
Right -
Right +
Amp 2 Left Input
Left PAST
Right PAST
Amp 1 Left Input
Amp 1 Right Input
Amp 2 Right Input
XX XX
Ground
Remote
+ 12 Volt
Fusing
Power LED
Check Fuse LED
