English 73
• Never insert the screws in any other screw hole than the
one specified. If you screw them in another hole, it will
contact and may cause damage to the mechanical parts
inside the unit.

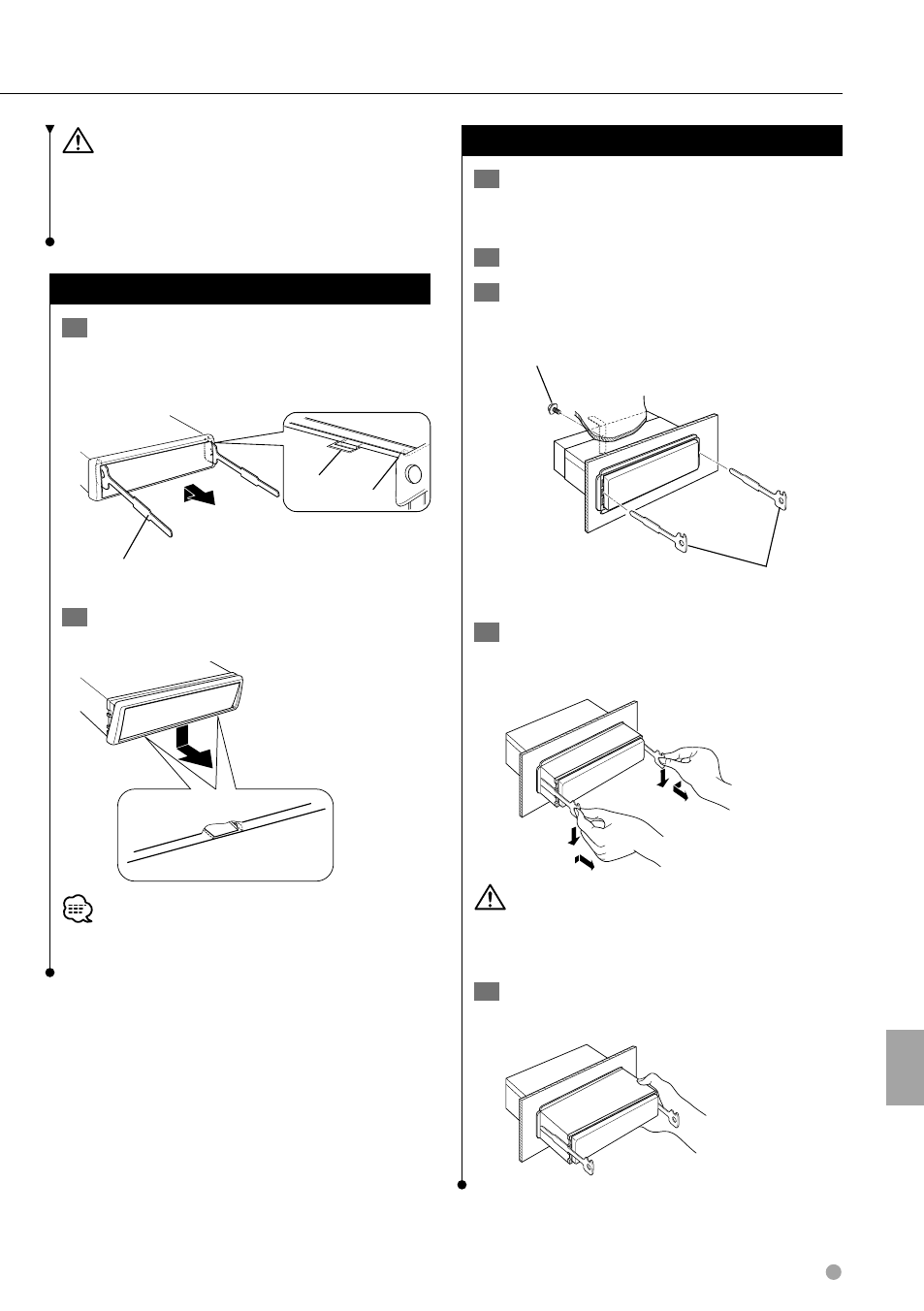

Removing the hard rubber frame
1 Engage the catch pins on the removal tool and
remove the two locks on the upper level.
Upper the frame and pull it forward as shown
in the figure.
Catch
Lock
Accessory
2
Removal tool
2 When the upper level is removed, remove the
lower two locations.
• The frame can be removed from the bottom side in the
same manner.
Removing the Unit
1 Refer to the section
rubber frame> (page 73) and then remove the
hard rubber frame.
2 Remove the screw (M4 × 8) on the back panel.
3 Insert the two removal tools deeply into the
slots on each side, as shown.
Accessory 2
Removal tool
Screw (M4×8)
(commercially available)
4 Lower the removal tool toward the bottom,
and pull out the unit halfway while pressing
towards the inside.
• Be careful to avoid injury from the catch pins on the
removal tool.
5 Pull the unit all the way out with your hands,
being careful not to drop it. Installa
tion
