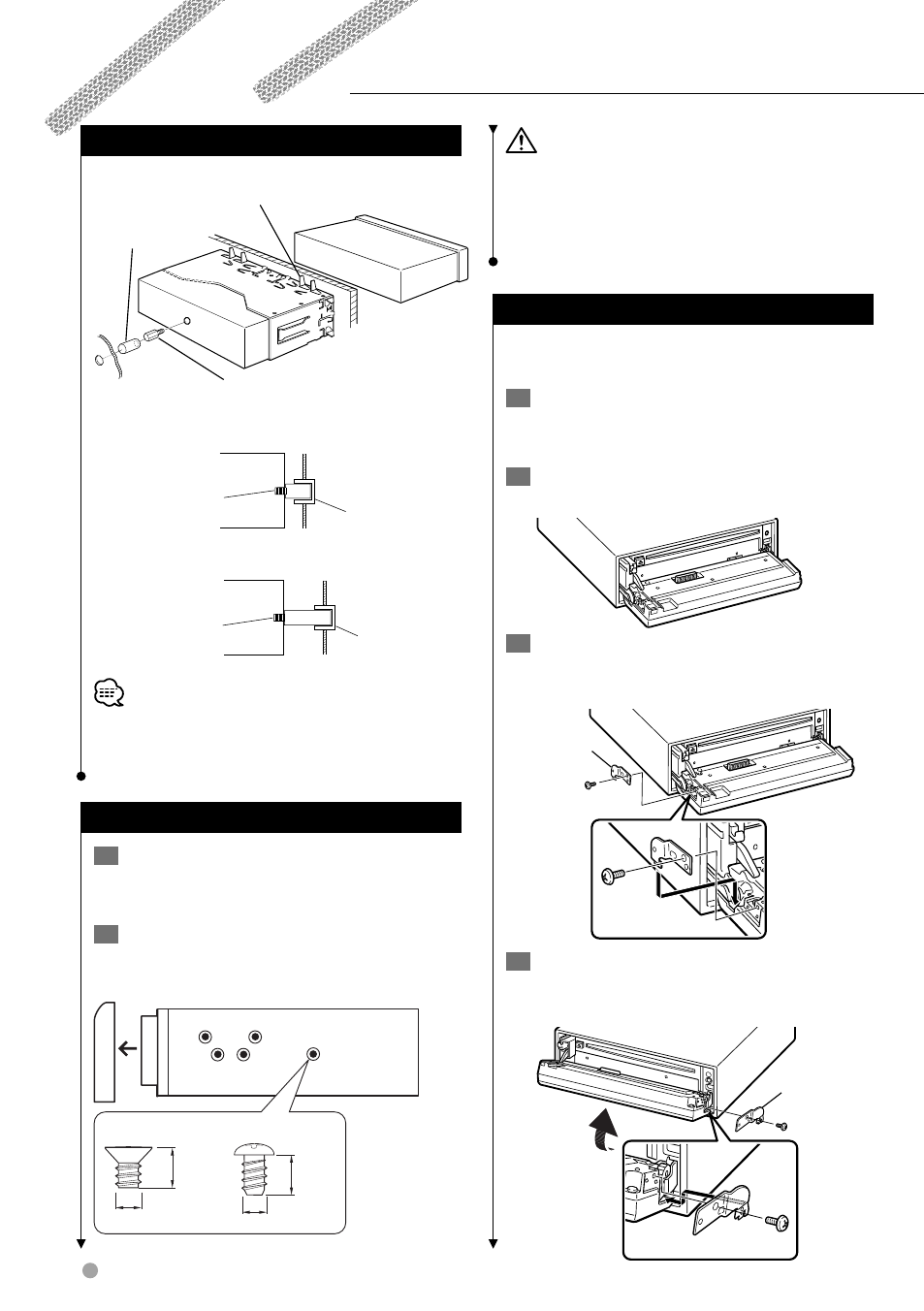

72 KDV-MP6333/KDV-MP6433
• During installation, do not use any screws except for
those provided. The use of different screws might result
in damage to the main unit.
• Damage may occur if a screwdriver or similar tool is used
with excessive force during the installations.
Screwing the Faceplate on the Unit
If you want to fasten the faceplate to the main
unit so that it does not fall off.
1 Refer to the section
rubber frame> (page 73) and then remove the
hard rubber frame.
2 Drop open the faceplate by pressing the
Release button.
3 Tighten the screw (ш2 Ч 5 mm) (Accessory
5)
and bracket (Accessory
6) in the hole shown
on the diagram.
Accessory 5
Accessory
6
4 Tighten the screw (ш2 Ч 5 mm) (Accessory
5)
and bracket (Accessory
7) in the hole shown
on the diagram.
Accessory
7
Accessory 5
Installation
Non-Japanese cars
Firewall Accessory
90
Attachment screw
Bend the tabs of the mounting sleeve with a screwdriver
or similar utensil and attach it in place.
Accessory !
Rubber Bush
• When the space between the unit and Firewall is
narrow
• When the space between the unit and Firewall is
wide
Unit
Unit
Firewall
Accessory
!
Rubber Bush
Accessory
9
Attachment screw
Firewall
Accessory
!
Rubber Bush
Accessory
0
Attachment screw
• Make sure that the unit is installed securely in place. If
the unit is unstable, it may malfunction (for example, the
sound may skip).
Japanese cars
1 Refer to the section
rubber frame> (page 73) and then remove the
hard rubber frame.
2 Align the holes in the unit (two locations on
each side) with the vehicle mounting bracket
and secure the unit with the accessory screws.
8 mm
MAX.
ø5mm ø5mm
8mm
MAX.
T
N T
N
T/N
T : Toyota cars
N : Nissan cars
3
4
For Nissan car For Toyota car
