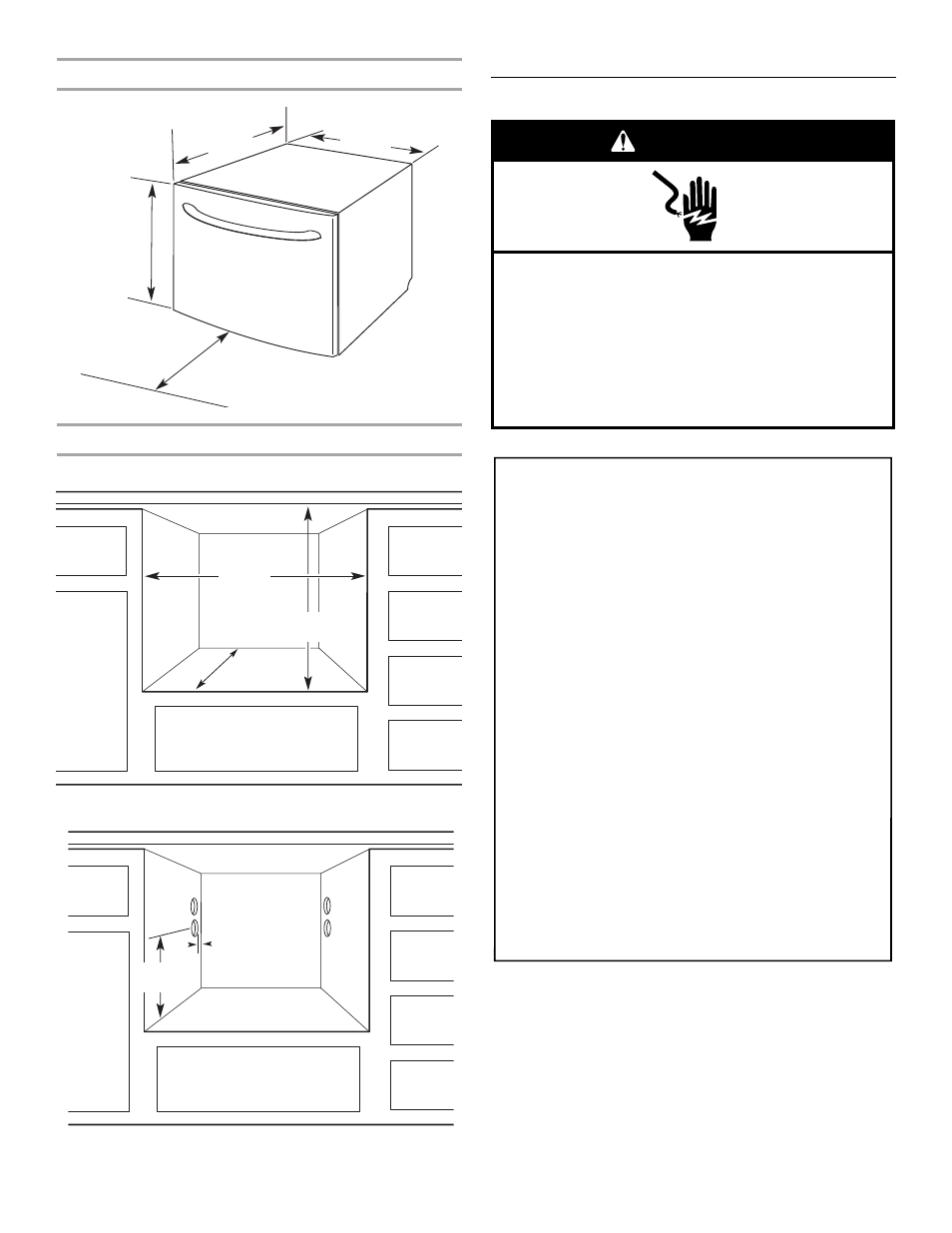

Product Dimensions
Installation Clearances
Cutout dimensions
Preferred utililty area
NOTE: All holes should be drilled at 1½" (3.8 cm) diameter.
Electrical Requirements
Contact a qualified electrician.
Ensure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances.
A. Choose left-hand or right-hand drain and water connection route.
B. Choose left-hand or right-hand electric connection route.
23
³⁄₈
"
(62 cm)
24"
(61 cm)
17"
(43.2 cm)
19
¹⁄₄
"
(48.9 cm)
17" (43 cm) Min.
18
¹⁄₂
" (47 cm) Max.
23
¹⁄₂
"
(59.7
cm)
24"
(61
cm)
8"
(20.3 cm)
¹⁄₂
"
(1.3
cm)
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
■
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and
ordinances.
WARNING:
Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
■
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the dishwasher.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
