KITCHENAID KUDD03STBL - Manual (Page 15)

15
OVERLAY PANEL INSTALLATION INSTRUCTIONS
Custom Overlay Drawer Panel
If you plan to install a custom wood panel, you will need to create
the panel yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for panel specifications.
IMPORTANT:
■ The thickness of the overlay panel must be
¹⁄₂" (12.7 mm) to
³⁄₄" (19.05 mm).
■ Do not exceed the height dimension for the overlay panel(s).
Panel(s) that exceed the height dimension may damage the
drawer dishwasher, cabinets or countertop.
■ The width of the overlay panel may vary according to the
width of the cabinet opening.

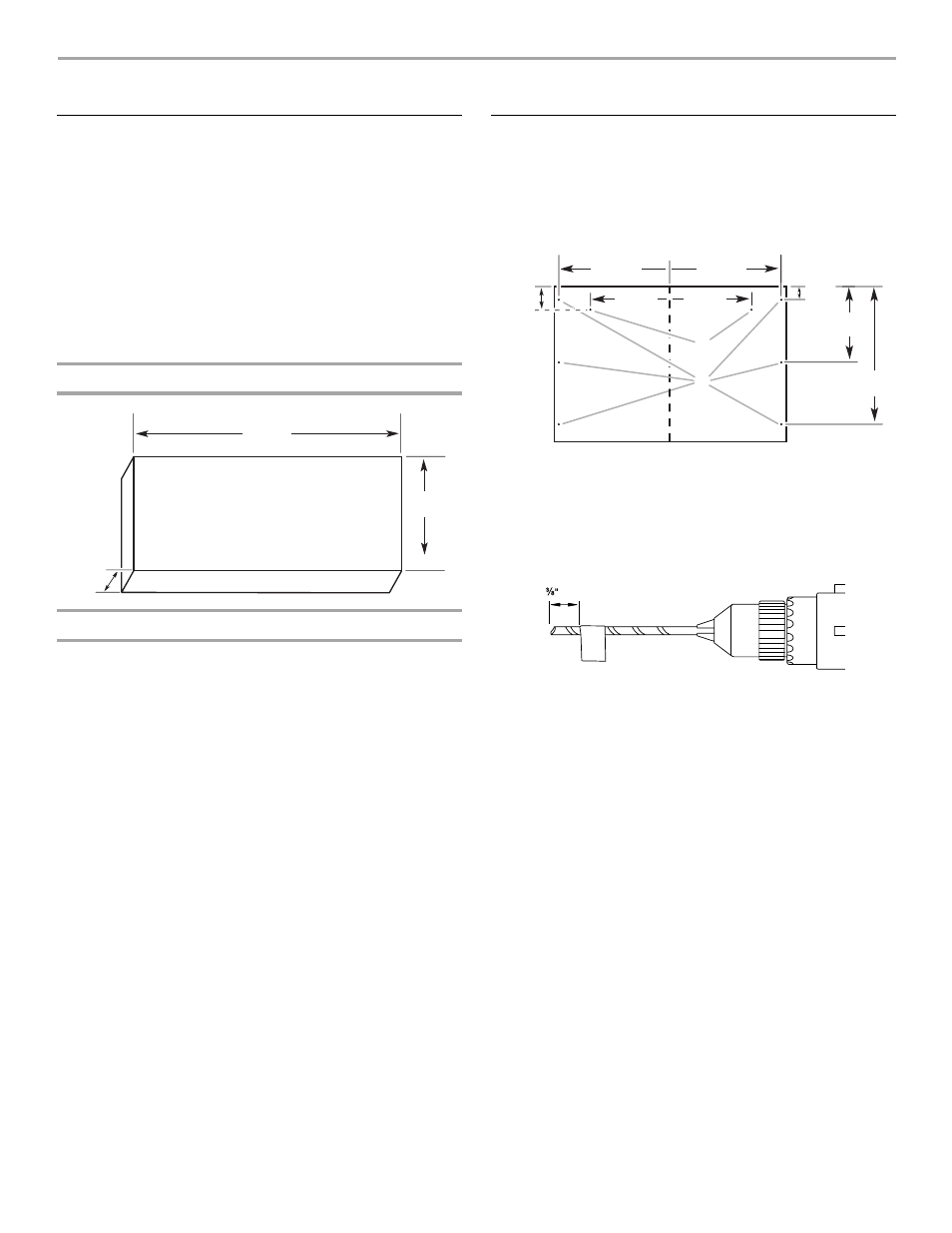

Overlay Panel Dimensions
Hardware Installation
Center the hardware (left to right) onto the overlay panel. When
installing the hardware, be sure that the mounting screws are
flush with the back of the overlay panel.
Preparing Custom Panel
1. Lay the custom panel face down on a clean, soft work
surface.
2. Using a pencil, mark the centerpoints of the two panel
fastener pilot holes and the six pilot holes needed for the
panel.
3. Using a ¹⁄₈" drill, drill each hole ³⁄₈" (1 cm) deep.
IMPORTANT: To avoid drilling through to the front of the
overlay panel, do not drill deeper than
³⁄₈" (1 cm).
23 7 / 16 "
(59.5 cm)
16 1 / 4 "
(41.3 cm)
3 / 4 "
(1.9 cm)
A. Center line
B. Panel fastener pilot holes (2)
C. Pilot holes (6)
1 1 / 2 "
(3.8 cm)
A
(20.7 cm)
8 1 /
8
"
(20.7 cm)
8"
(20.2 cm)
(36.6 cm)
C
B
(28.5 cm)
11 1 / 4 "
(28.5 cm)
2 1 / 2 "
(6.3 cm)
11 1 / 4 "
8 1 /
8
"
14 1 /
8
"
(1 cm)
