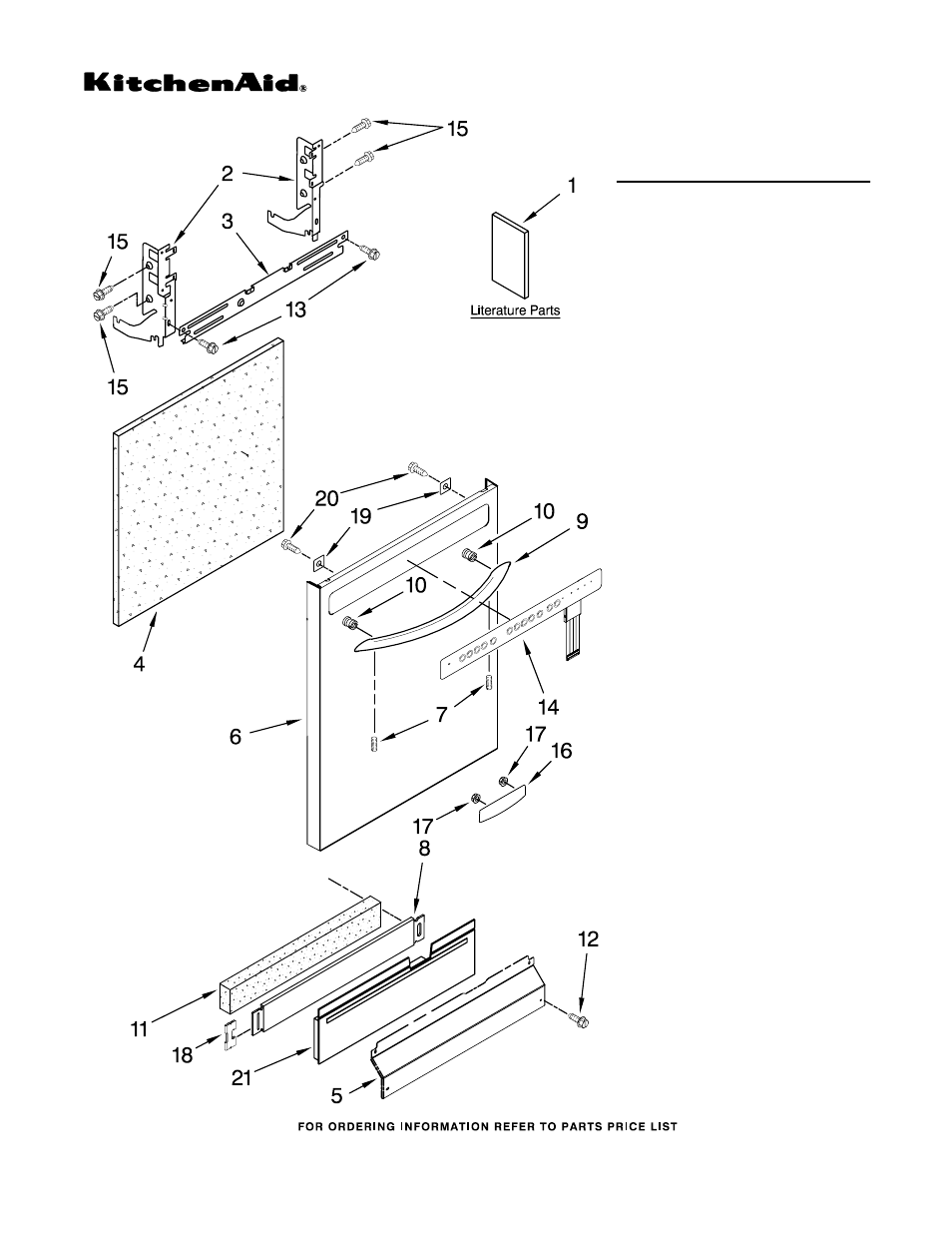

DOOR AND PANEL PARTS

1

For Model: KUDE70CVSS1

(Stainless)

3−09 Litho in U.S.A. (ll) (eeb)

Part No. W10260781 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1

Literature Parts

W10056407 Instructions,

Installation

W10194847 Energy Guide
W10208710 Guide, Use & Care

Spanish

W10208709 Guide, Use & Care

English/French

W10142826 Tech Sheet
W10158347 Tech Sheet, French

2

Arm, Hinge

8534854 Left
8534853 Right

3

8268983 Stiffener, Door

4 W10073520 Insulation, Door
5

Access Panel

W10194851 Black

6

Panel, Full Front
(Includes Items

4, 10, 16, 17,

19 AND 20)

W10137621 Stainless

7

8534008 Screw

8

Toe Panel

(Includes
Items 11 & 18)

8558252 Black

9

Handle Assy
(Includes Item 7)

W10083935 Stainless

10

8564951 Stud, Mounting

11

8268581 Insulation,

Toe Panel

12

Screw

302868 Black

13

304392 Screw

14 W10056420 Bezel
15

3400071 Screw

16

Nameplate

W10021850 Stainless

17

2004333 Nut

18

8269016 Clip, Grounding

19 W10133538 Plate, Backing
20 W10123421 Screw
21 W10056310 Panel, Access

Panel
