5. Reinstall electric box cover with all wires contained inside the
terminal box.

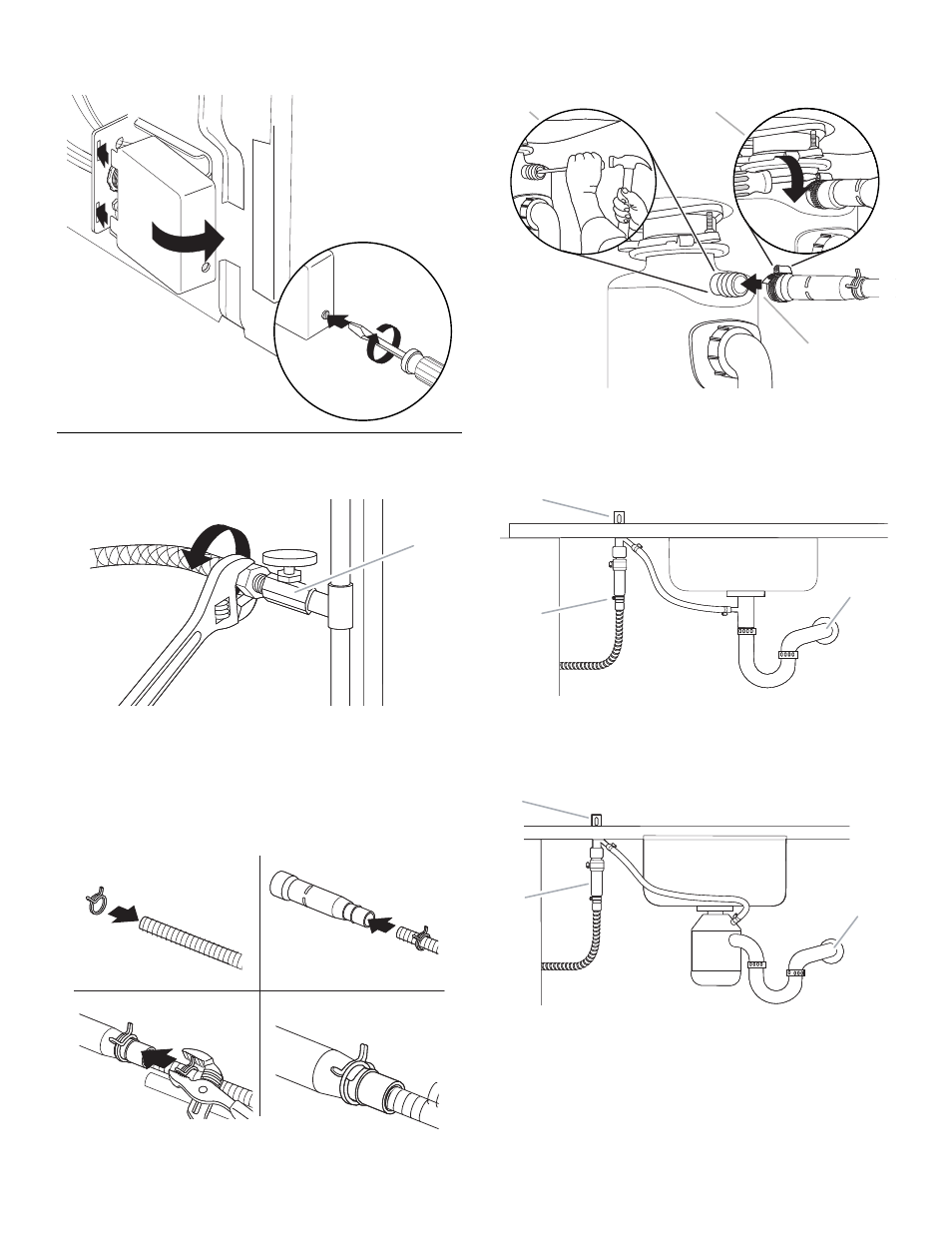

Connect Water Supply Line and Drain Hoses
1. Connect water supply line to the water valve under the sink.
2. Slide clamps onto drain hoses (Figure A). Do not cut drain
hoses.
3. Push hose into drain connector until fully seated (Figure B).
Several “clicks” will be heard.
4. Slide clamp into position (figures C and D).
5. Connect the drain hose using one of the following options:
Option 1: Waste disposer no drain air gap
Option 2: No waste disposer and drain air gap
Option 3: Waste disposer and drain air gap
A. Hot water supply
A
A
B
C
D
A. For new construction, remove disposer plug.
B. Connect drain connector to waste disposer.
C. Tighten clamp.
A. Drain hose connector
B. Drain air gap
C. Waste
A. Drain hose connector
B. Drain air gap
C. Waste
A
C
B
B
A
C
A
B
C
