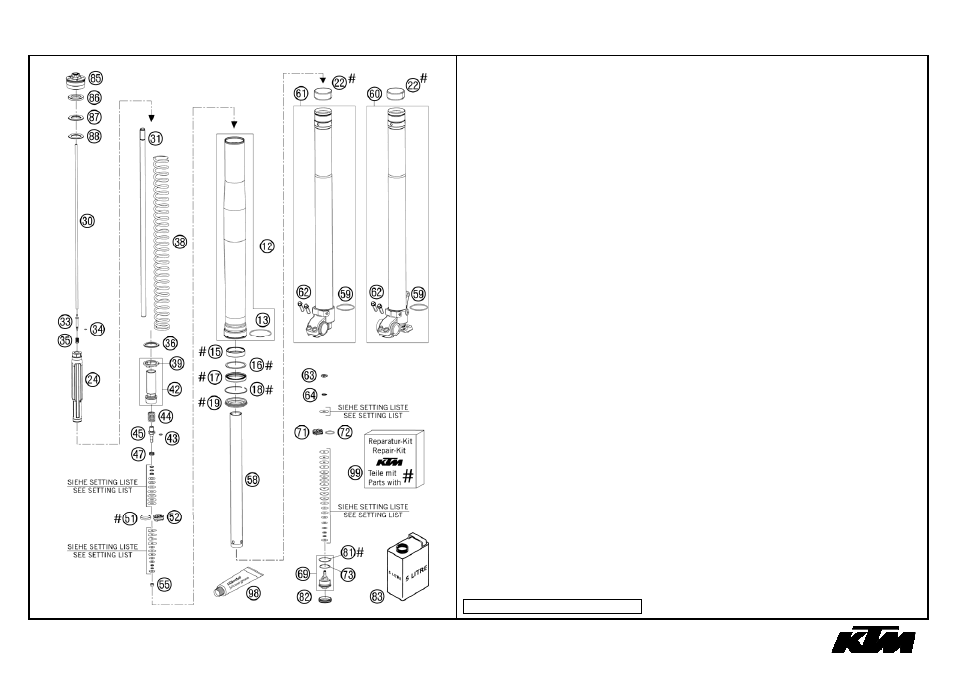

Fork, Legs – KTM SUPERENDURO R 950 User Manual
Page 7
950 SUPERENDURO R AUS/UK 2007
FIG PART
NUMBER
DESCRIPTION
QTY
12 48600553E
OUTER TUBE L=640MM D=54/60 06
2
13 48600016
GUIDING RING D=58MM
2
15 48600429
DU-BUSH D48XD52X12DDL02
2
16 48600013
SUPPORT RING 50 X 57,6 X 1,5
2
17 48600399
OIL SEAL RING 48X57,8X9,5
2
18 48600070
LOCK WASHER SB58
2
19 48600400
DUST CAP D=48 58,4X11,8
2
22 48600428
DU-BUSH D47XD49X20DDL02
2
24 48600241S1
HYDR.STOP L=200MM D=31,9 CPL.
2
30 48600143
ADJUSTMENT TUBE L=467MM 06
2
31 48600538
PISTON ROD D=14 M11X1 L=501
2
33 48600189
NEEDLE REBOUND 2003
2
34 48600046
O-RING NBR 3X1,5
2
35 48600033
SPRING REBOUND NEEDLE C=4N/MM
2
36 48600037
SPACER 42X26,5X5
2
38 91410045S
SPRING 5,9 N/MM SET D=5,5MM
2
39 48600021
INTERM. RING 26,2 X 43 X 3
2
42 48600196S
SCREW SLEEVE M29,3X1 L=90 CPL.
2
43 48600239
O-RING NBR 8X1,25
2
44 48600403
REBOUND SPRING D=15MM L=34,5MM
2
45 48600203
TAB REBOUND D=3 03
2
47 35480377
SPRING CHECK VALVE D=0,5
2
51 48600060
PISTON RING 5X1X84
2
52 48600042
PISTON REBOUND D=27,7
2
55 40540486
NUT M6X0,5 REBOUND
2
58 48600537
TUBE 28X29,3X1 L=435 ALU D=8,5
2
59 48600048
O-RING NBR 46 X 2
2
60 48600534S1
AXLE CLAMP L/S + TUBE CPL. 07
1
61 48600238S2
AXLE CLAMP R/S + TUBE CPL. 07
1
62 0015080253
HH COLLAR SCREW M 8X25 WS=10
4
63 48600163
CHECK VALVE NUT M6X0,5 D=2
2
64 48600202
SPRING CHECK VALVE D=0,7
2
69 48600152S1
TAP COMPRESSION CPL. 03
2
71 48600047
PISTON COMPRESSION D=27,9
2
72 46811499
O-RING NBR 21X2
2
73 35480320
O-RING NBR 24X2
2
076300150 / C076300150
* NEW PART
X AS REQUIRED
5
FORK
LEGS
