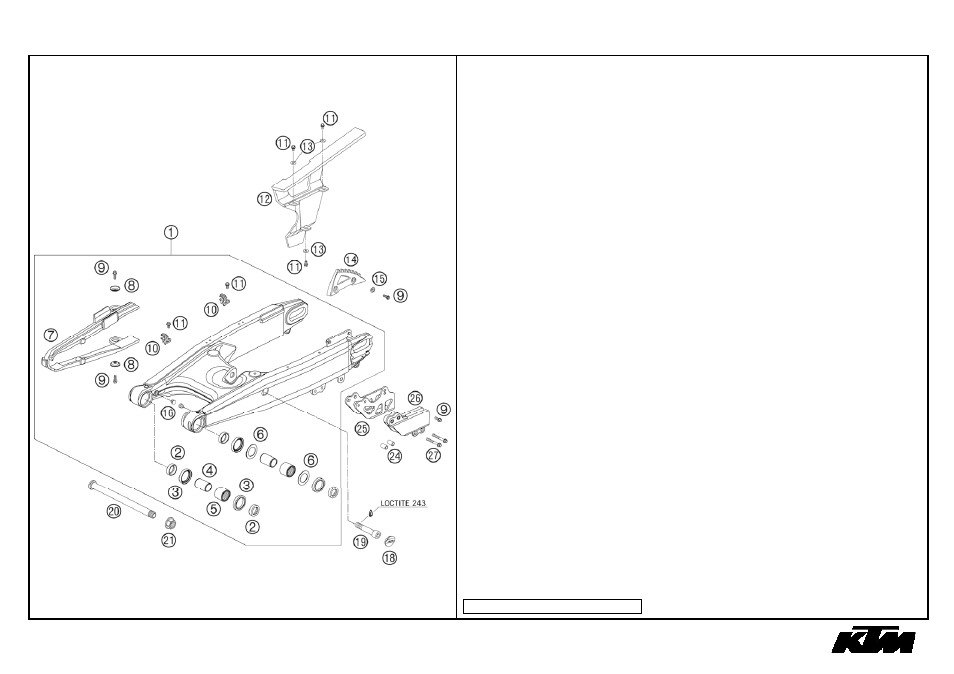

950 SUPERENDURO R AUS/UK 2007
FIG PART
NUMBER
DESCRIPTION
QTY
1 63004030044
SWING ARM CPL. 950 SE 06
1
2 60004034000
BUCKET F. SHAFT SEAL RING 03
4
3 0760304073
SHAFT SEAL RING 30X40X7
4
4 60004032000
INNER RING JR20X25X38,5 03
2
5 60004031000
NEEDLE BUSH HK2526B 03
2
6 60004033000
STOP DISK 03
2
7 63004066000
CHAIN SLID. GUARD SWINGARM 06
1
8 72210079000
BUCKET
2
9 0015060163
HH COLLAR SCREW M 6X16 WS=8
5
10 5461107610030
RET. CLAMP F. BRAKE HOSE BLACK
2
11 0009050103
SPECIAL SCREW M 5,0X10
5
12 60004061100
CHAINGUARD 06
1
13 0021050003
WASHER DIN9021-A 5,3
3
14 60004075000
REAR SPROCKET GUARD 03
1
15 50308053000
BUSH FOR SPOILER 6X11X16X7,5
2
16 60004042000
PLUG SFL12 GREY 05
2
18 60004041000
PLUG SWINGARM 03
1
19 60004017000
SCREW M14X1,5 L=73MM 03
1
20 63004037144
SWING ARM BOLT 272,5MM 06
1
21 60004038000
COLLAR NUT M19X1,5 WS=27MM 03
1
24 54607072100
BUSH 6,5X10X22MM
2
25 54607070144
RETAINING PLATE CPL.
1
26 63004070000
CHAIN GUIDE 06
1
27 0015060503
HH COLLAR SCREW M 6X50 WS=8
2
066300400 / C066300400
* NEW PART
X AS REQUIRED
12
SWING
ARM
