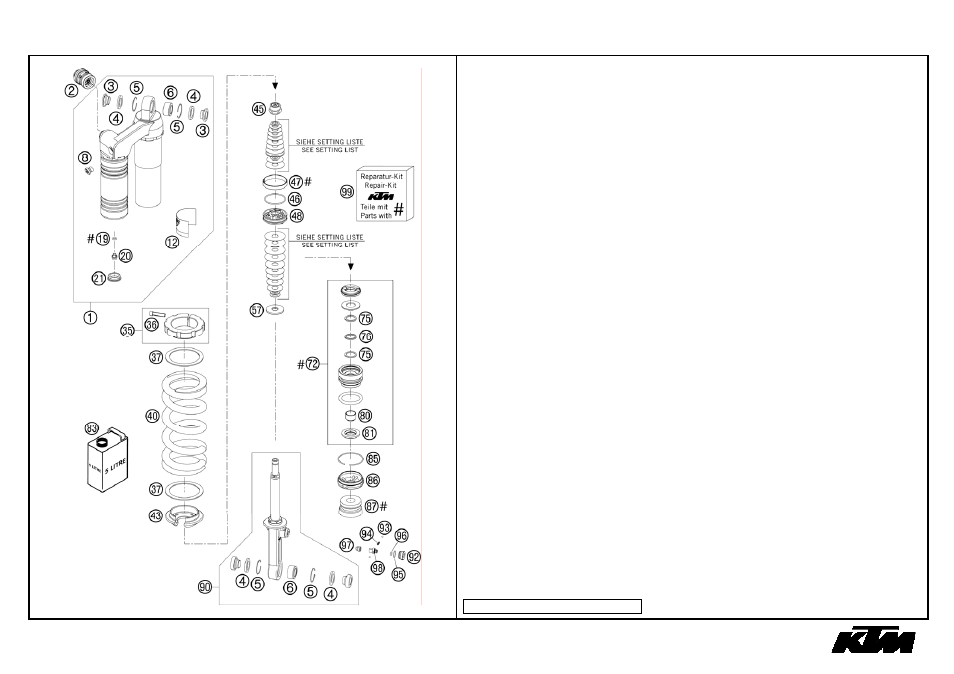

Shock, Absorber, Disassembled – KTM SUPERENDURO R 950 User Manual
Page 16
950 SUPERENDURO R AUS/UK 2007
FIG PART
NUMBER
DESCRIPTION
QTY
1 46180398S2
MONOSHOCK TOP PART CPL. 07
1
2 50180213S4
DCC-COMPR.DAMP.CONTROL
CPL.
03
1
3 50180366
ADAPTOR BUSH KGW 14X24
2
4 46180003
OIL SEAL KGW D=25
4
5 50180168
WASHER KGW D=25
4
6 50180005
BUSHING KGW 1525 HD
2
8 50180095
BLEED PLUG R 1/8
1
12 52000044
STICKER WP KTM
1
19 46810893
O-RING NBR 5,28X1,78
1
20 36120151
SCREW PLUG M5X6
1
21 46811208
RUBBER CAP "DO NOT OPEN"
1
35 46180394S
ADJUSTING NUT M52X1,5
1
36 46180354
AH SCREW M5X25
1
37 50180410
INTERM.RING D=58
2
40 91010277S
SPRING 140-215 (59)D=13,75 TIT
1
43 46180396
SPRING RETAINER H=15 D=28
1
45 46180597
PISTON ROD NUT 06
1
46 46810035
O-RING VITON 37,82X1,78
1
47 46810361
PISTON RING
1
48 46810560
PISTON 6+6D7
1
57 14460017
REBOUND DISC H=4
1
72 46180341S
ADAPTOR CPL. D=46 H=28 D=38
1
75 50180102
BACKUPRING 22,55X1,5
2
76 50180101
QUAD RING 18X2,62
1
80 46180119
DU-BUSH 18X20X12
1
81 50180082
DUST SEAL 1835
1
83 50180342S1
SHOCK ABSORBER FLUID 5 LT '03
1
85 46810010
CIRCLIP 49X1,5
1
86 46180397
COVER H=9,5
1
87 50180276
BUMP RUBBER WP60 D=18-26
1
90 46180399S2
MONOSHOCK BOTTOM PART CPL. 07
1
92 46180005
RESERVOIR CAP M16X1
1
93 40540603
STEEL BALL D=3MM
2
94 48600028
SPRING D=2,9 L=7,9
1
95 46180013
O-RING NBR 12X1
1
96 50180222
O-RING NBR 4X1,5
1
076300460 / C076300460
* NEW PART
X AS REQUIRED
14
SHOCK
ABSORBER
DISASSEMBLED
