950 SUPERENDURO R AUS/UK 2007

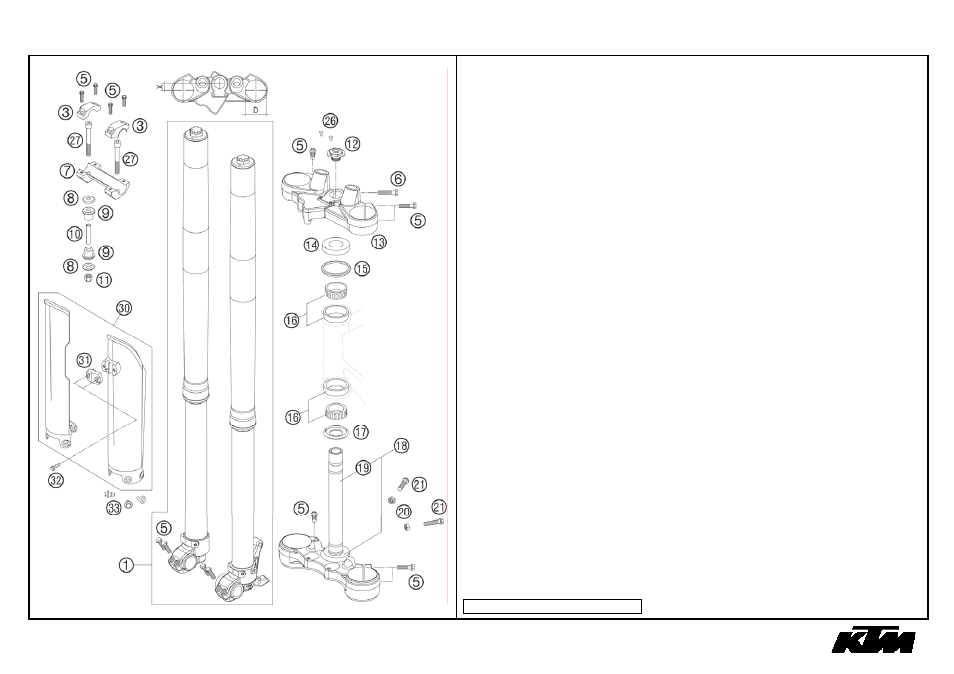

FIG PART
NUMBER
DESCRIPTION
QTY
1* 14187C32
FRONT FORK WP SUPERENDURO 07
1
3* 5900103830001S
HANDLEBAR CLAMP 28MM 07
2
5 0015080303
HH COLLAR SCREW M 8X30 WS=10
16
6 0015080353
HH COLLAR SCREW M 8X35 WS=10
1
7* 5900103920001S
HANDLEBAR SUPPORT 28MM 07
1
8 56401042000
WASHER 10,5X32X2
4
9 56401040000
RUBBER BUSHING
4
10 56401041100
SPACER TUBE 10,2X12X44
2
11 0982100003
SELF LOCK.NUT DIN0982-M10 HIGH
2
12 54801036200
STEER.HEAD SCREW M20x1,5 SW=27
1
13* 6000103402001S
TOP TRIPLE CLAMP X=20MM D=54MM
1
14 61001086000
STEERING HEAD COVER 05
1
15 54601184000
STEARING HEAD GASKET TOP
1
16 54201081100
TAPERED ROLLER BEARING CPL. 06
2
17 54601084100
O-RING SUPPORT W. SEALING LIP
1
18* 6000103202001S
BOTTOM TRIPLE CLAMP CPL D=60MM
1
19 60001033000
FORK TUBE LC8 ADV 03
1
20 0934080003
HEXAGON NUT DIN0934-M 8
2
21 0933080253
HH SCREW DIN0933-M 8X25
2
26 60103088000
PLUG ZK 8/5 06
2
27 0984100703
AH SCREW DIN6912-M10X70
2
30 5900109400030
FORK PROTECT. L/S+R/S BLACK 02
1
31 58201085000
CLAMP F.SPEED CABLE D=8MM 2001
1
32 0017060203
EJOT PT SCREW K60X20 WS=6
2
33 59001092050
SPECIAL SCREW M6X12,5 WS=8
6
066300100 / C076300100
* NEW PART
X AS REQUIRED
4
TELESCOPIC FORK
