Side, Stand – KTM SUPERENDURO R 950 User Manual

Page 11

background image

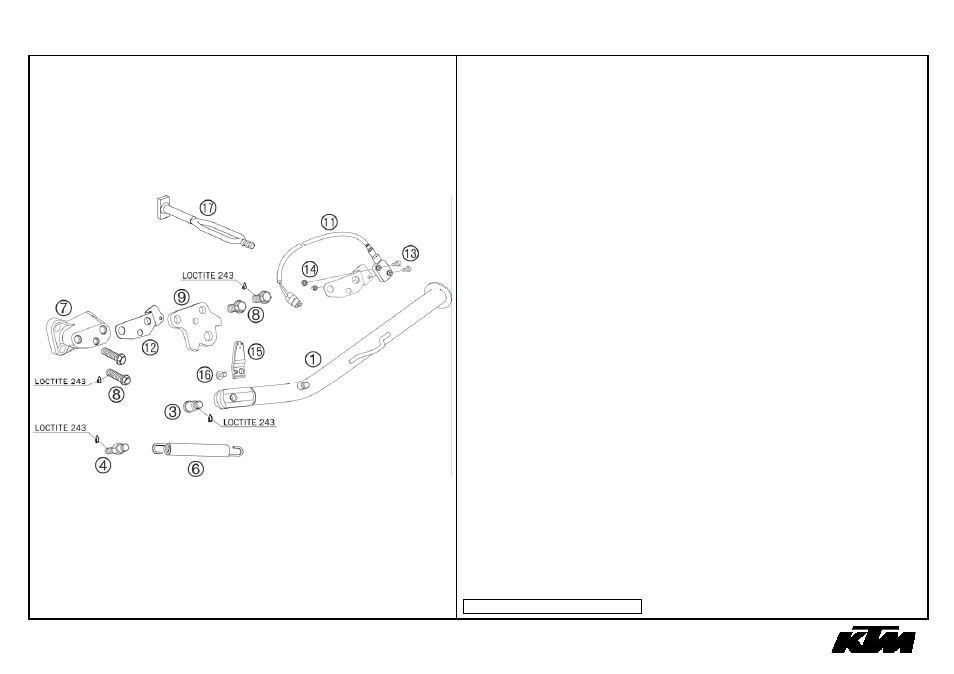

950 SUPERENDURO R AUS/UK 2007

FIG PART

NUMBER

DESCRIPTION

QTY

1 6300302300030

SIDE STAND L=349MM SE 06

1

3 62503027100

SCREW F. SIDE STAND M10X31,2

1

4 61003028001

SCREW SIDE STAND SPRING 05

1

6 61003024000

SPRING L=116 MM 05

1

7 60003026000

SIDE STAND BRACKET 03

1

8 0015100303

HH COLLAR SCREW M10X30 WS=13

4

9 60103028000

SIDE STAND PICKUP 06

1

11 61011045000

SIDE STAND SENSOR 05

1

12 60103029000

SUPPORT F.SIDE STAND SWITCH 06

1

13 0084040123

CYL.HEAD SCREW DIN84A M4x12

2

14 0985040003

SELF LOCKING NUT DIN0985-M 4

2

15 60103029050

MAGNET HOLDER ADV. 06

1

16 0015060123

HH COLLAR SCREW M 6X12 WS=8

1

17 50303018000

RUBBER L=145MM

1

066300350 / C066300350

* NEW PART

X AS REQUIRED

9

SIDE

STAND
