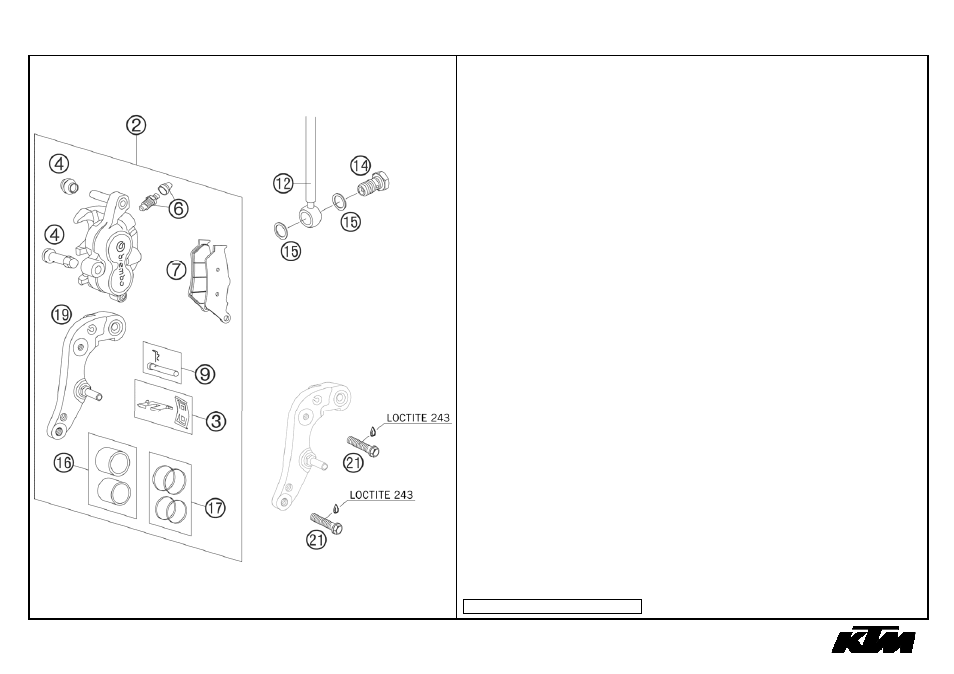

Brake, Caliper, Front – KTM SUPERENDURO R 950 User Manual

Page 31

background image

950 SUPERENDURO R AUS/UK 2007

FIG PART

NUMBER

DESCRIPTION

QTY

2 60113015000

BRAKE CALIPER FRONT L/S 06

1

WITH BRAKE CALIPER SUPPORT

3 60013018000

RETAINING PLATE SET FRONT 03

1

4 54613218000

CUP SET SHORT

1

6 60013020000

BLEEDER SCREW WITH CAP

1

7 60013030000

BRAKE PAD SET FR.TT2172HHA '03

1

9 60013017000

BOLT SET L/S

1

12 63013012000

BRAKE HOSE FRONT 06

1

14 50213025000

HOLLOW SCREW M10X1X19

1

15* 0603100141

COPPER GASKET DIN7603-10X14X1

2

16 60013083000

BRAKE PISTONS

1

17 60013019000

REP.KIT SEALING RINGS 30/32MM

1

19 60113049100

BRAKE CALIPER SUPPORT FR. L/S

1

WITH RETAINING PLATE

21 0015080353

HH COLLAR SCREW M 8X35 WS=10

2

066301320 / C076301320

* NEW PART

X AS REQUIRED

29

BRAKE

CALIPER

FRONT
