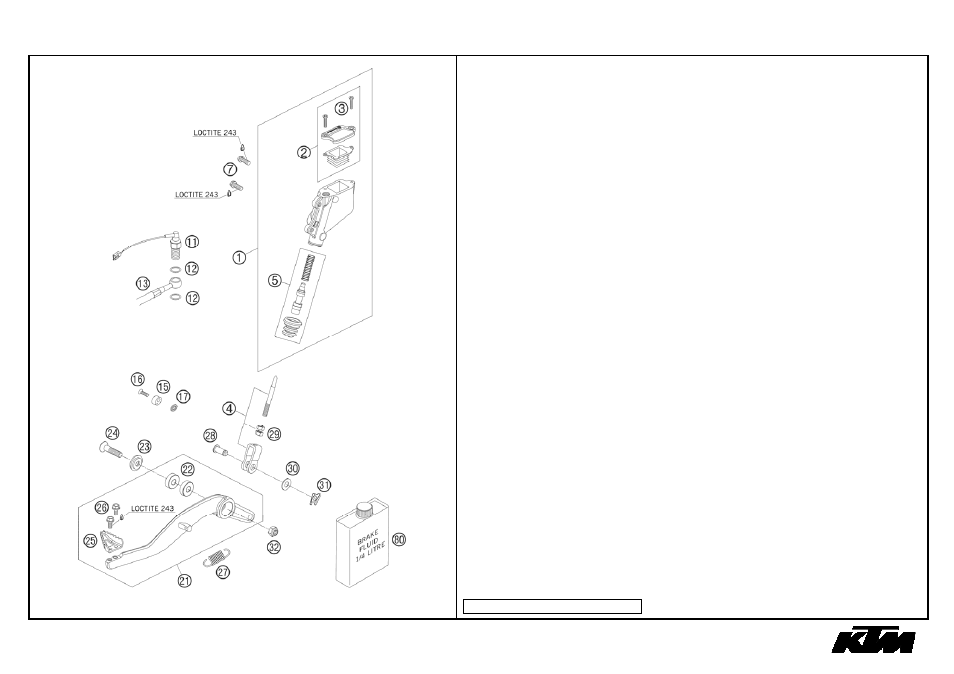

Rear, Brake control – KTM SUPERENDURO R 950 User Manual
Page 30

950 SUPERENDURO R AUS/UK 2007
FIG PART
NUMBER
DESCRIPTION
QTY
1 60013060100
MAIN BRAKE CYLINDER CPL. 06
1
2 60013059000
COVER MAIN BRAKE CYLINDER CPL.
1
3 0965040161
FLAT HEAD SCREW DIN0965-M 4X16
2
4 63013056044
PUSH ROD CPL. 06
1
5 60013061000
REPAIR KIT PISTON 03
1
7 59009062016
SPECIAL SCREW M6X16 WS=8 10.9
2
11 50311051100
BRAKE LIGHT SWITCH REAR '98
1
12* 0603100141
COPPER GASKET DIN7603-10X14X1
2
13 62513072000
BRAKE HOSE REAR 05
1
15 58413048000
BRAKE LEVER STOP LC4 03
1
16 0991060203
FLAT H.SCREW DIN7991-M6X20 8.8
1
17 0797060003
TOOTH LOCK WASH. DIN6797-A 6,4
1
21* 6001305004401S
FOOT BRAKE LEVER CPL. 07
1
22 0625006087
GROOVED BALL BEAR. 608 2RS C3
2
23 60003061000
SPECIAL WASHER ALU 8X24MM 03
1
24 0991080353
FLAT HEAD SCREW DIN7991-M 8X35
1
25 60013051000
STEP PLATE FOOT BRAKE LEVER 03
1
26 0015050123
HH COLLAR SCREW M 5X12 WS=8
2
27 54603062000
RETURN SPRING FOR BRAKE LEVER
1
28 60013057000
BOLT F. LINK FORK 8X20X16,5
1
29 0934060003
HEXAGON NUT DIN0934-M 6
2
30 0125080003
WASHER DIN0125-A 8,4
1
31 60013058000
SECURING CLIP D=8MM 03
1
32 0985080003
SELF LOCKING NUT DIN0985-M 8
1
80* 00062030000
BRAKE FLUID DOT 5.1
1
066301310 / C076301310
* NEW PART
X AS REQUIRED
28
REAR
BRAKE CONTROL
