950 SUPERENDURO R AUS/UK 2007

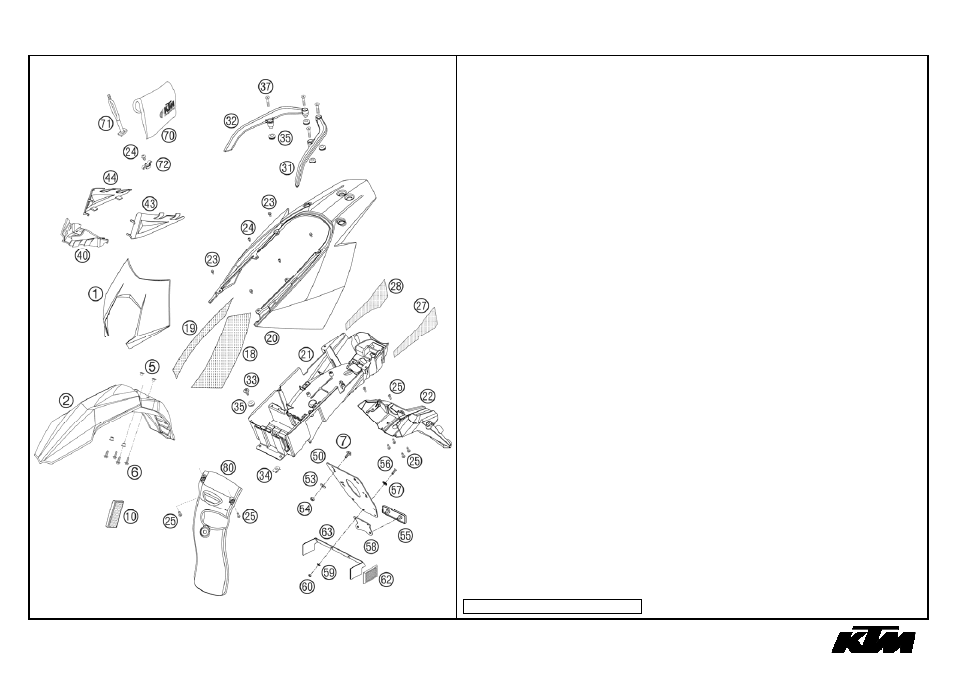

FIG PART NUMBER DESCRIPTION QTY
1 5860800100030B HEAD LIGHT MASK BLACK 06 1
WITH DECAL
2 6300801000004 FENDER FRONT ORANGE 06 1
5 58408009050 SPACER BUSHING FRONT FENDER 4
6 0014060203 HH COLLAR SCREW M 6X20 WS=8 4
7 0014060153 HH COLLAR SCREW M 6X15 WS=8 4
10 60012080000 SIDE REFLECTOR YELLOW 03 x
ONLY FOR USA+AUS+UK
18* 62508018150 THERM. PROT.FOIL L/S ABOVE 07 1
19* 62508018160 THERM.PROT.FOIL R/S ABOVE 07 1
20 6250801800030B REAR END TOP PART BLACK 06 1
WITH DECAL
21 62508019200 REAR END LOWER PART 06 1
22 63008015000 NUMB.PLATE CARRIER 06 1
23 0015050123 HH COLLAR SCREW M 5X12 WS=8 4
24 0016050121 SCREW FOR PLASTIC 50X12 3
25 0017060203 EJOT PT SCREW K60X20 WS=6 8
27* 62508019250 THERMAL PROTECTON FOIL L/S 07 1
28* 62508019360 THERMAL PROTECTON FOIL R/S 07 1
31* 6301200800001S HAND GRIP L/S 07 1
32* 6301200900001S HAND GRIP R/S 07 1
33 60035001000 SCREW RADIATOR BRACKET M6 03 2
34 54603048100 RANGE CHANGE METAL NUT M6 2
35 41001052000 RUBBER SLEEVE D=12MM 6
37 0991080403 FLAT HEAD SCREW DIN7991-M 8X40 4
40 60003087000 SPLASH PROTECTOR FRAME 05 1
43 62503083000 COVER FRAME L/S REAR 05 1
44 62503084000 COVER FRAME R/S REAR 05 1
50* 60012081200 LICENCE FITTING 06 1
53 0021060003 WASHER DIN9021-A 6,4 4
54 0985060003 SELF LOCK. NUT DIN0985-M 6 4
55 58412080000 REFLECTOR RED LC4 '98 1
56 0966050163 OVAL HEAD SCREW DIN0966-M 5X16 2
57 40006006000 WASHER 6MM 2
58 58412080050 BRACKET FOR REFLECTOR 1
59 0125050003 WASHER DIN0125-A 5,3 2
066300800 / C076300800 * NEW PART X AS REQUIRED
21
MASK, FENDERS
