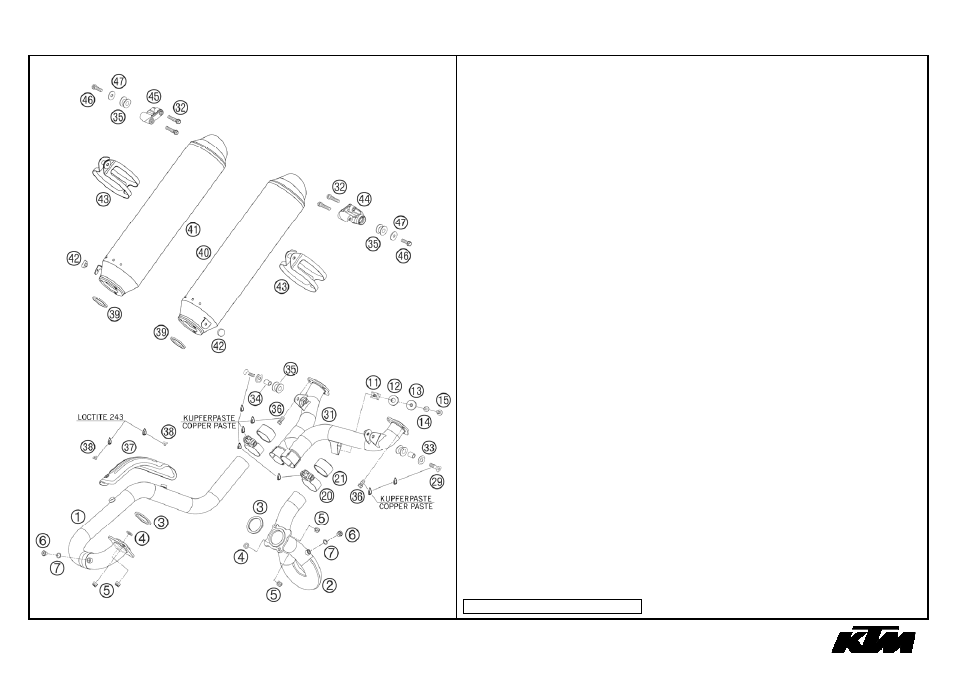

950 SUPERENDURO R AUS/UK 2007
FIG PART
NUMBER
DESCRIPTION
QTY
1 63005007000
EXHAUST PIPE FRONT 06
1
2 60005008000
EXHAUST PIPE REAR 03
1
3 60005005000
GASKET 03
2
4 0125080003
WASHER DIN0125-A 8,4
2
5 51010086100
SELF LOCKING NUT M 8 CU
4
6 0908100000
PLUG DIN0908-M10X1 A2
2
7 0603100141
COPPER GASKET DIN7603-10X14X1
2
11 54603048100
RANGE CHANGE METAL NUT M6
1
12 51005067000
INSOLATE WASHER 8,5X28X3
1
13 63005013000
INSULATING DISK 06
1
14 54830048000
DISTANCE BUSHING F. CHAIN.
1
15 0014060253
HH COLLAR SCREW M 6X25 WS=8
1
20 60105051000
CLAMP CPL. D=49,2MM 06
2
21 60005005001
GRAPHIT RING 42X47X25 03
2
29 0991080353
FLAT HEAD SCREW DIN7991-M 8X35
2
31 63005048000
DISTRIBUTOR TUBE 06
1
32 0015080303
HH COLLAR SCREW M 8X30 WS=10
4
33 58303061100
SPECIAL WASHER ALU 8X24 MM ELO
2
34 62505069000
SPACER BUSH. 8,5X12X18MM 05
2
35 54305068100
DAMP. COMPONENT SILICONE GREY
4
36 0015080163
HH COLLAR SCREW M 8X16 WS=10
6
37 63005011000
THERMAL SHIELD 06
1
38 0991060082
FLAT H.SCREW M6X8 DIN7991 NIRO
2
39 60005005002
EXHAUST GASKET 03
2
40 62505083100
SILENCER L/S 05
1
41 62505083000
SILENCER R/S 05
1
42 54308042000
RUBBER BUFFER
2
43 60005095000
CLAMP FOR SILENCER CPL. 03
2
44* 6000508500001S
SILENCER/HANDLE HOLDER L/S 07
1
45* 6000508600001S
SILENCER/HANDLE HOLDER R/S 07
1
46 0015080253
HH COLLAR SCREW M 8X25 WS=10
2
47 0021080003
WASHER DIN9021-A 8,4
2
48 0797050000
TOOTH LOCK WASHER DIN6797-J
2
066300500 / C076300500
* NEW PART
X AS REQUIRED
16
EXHAUST SYSTEM
