3-16 Machine Information
Machine Information

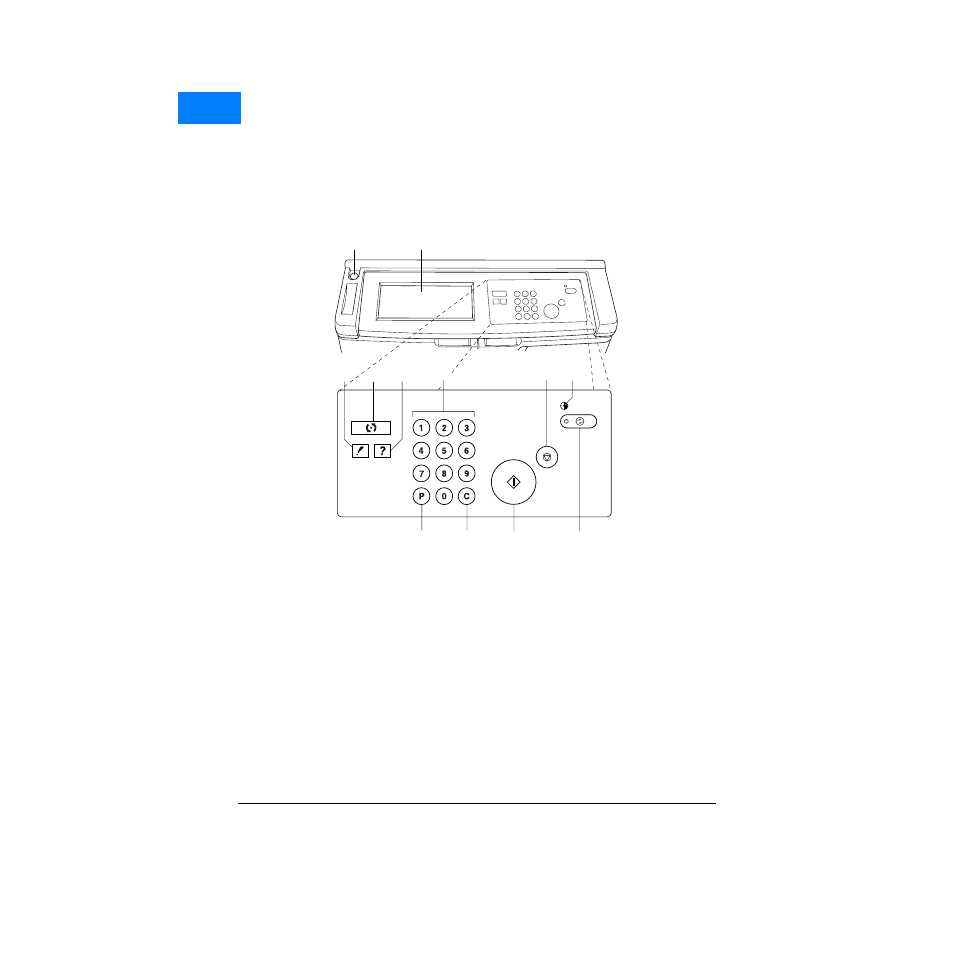

Control Panel Layout
1
Power switch
turns printer power On/Off when pressed.
2
LCD touch screen
displays machine and printing status, help information, interactive
screens, and touch keys for selecting all functions.
3
CHECK
displays a screen showing all settings that are selected for the current job.
4
MODE
switches the machine operation mode.
5
HELP
displays a screen with help for the currently selected function, or to access the
Key Operator Mode Screen.
6
Keypad
enters numeric values.
7
STOP/PAUSE
stops the printing sequence; deletes the stored memory.
8
TIMER
lights when the timer function is set.
9
POWER SAVER ON/OFF
activates power-saving mode for times when the printer is
inactive, or activates timer interrupt mode when weekly timer function is active.
10
START
restarts printing after mishandled paper is cleared or the paper tray is
replenished with paper.
11
CLEAR QTY
. allows resetting of print quantity.
12
[P] (counter)
displays the Counter Screen or accesses programming modes for
setting special functions.
CHECK
TIMER
STOP/PAUSE
START
CLEAR QTY.
COUNTER
HELP
POWER SAVER
ON / OFF
e
r
q
w
y
u
i
o
!0
t
!1
!2
