Step 23, Assembly – Keys Fitness Power System KF-2060 User Manual
Page 37
Assembly
37
Step 23
Note: Stretch all cables out completely and make sure all twisting is removed before
installing.

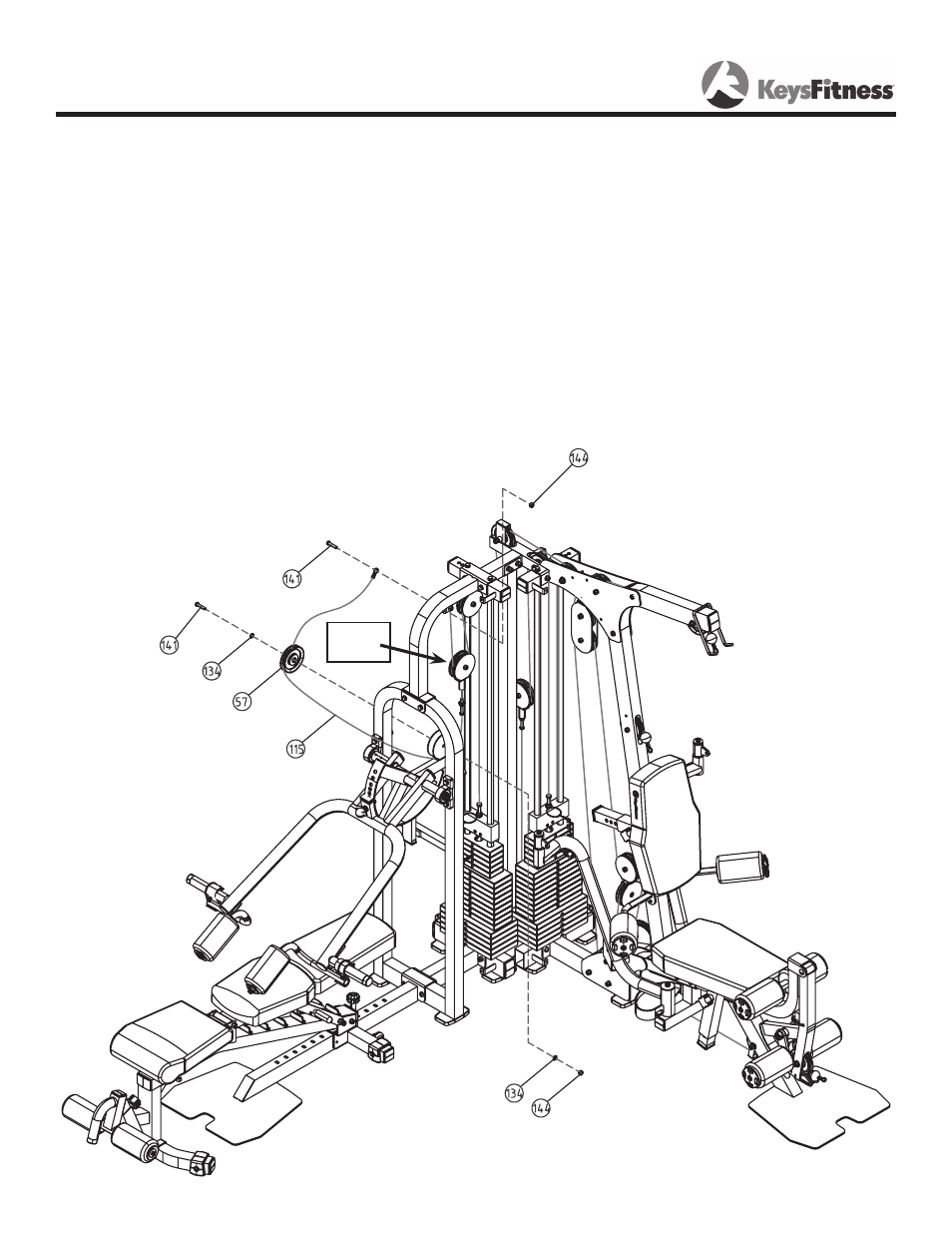

Install Short Chest Cable (115) as detailed in Figure 23. Follow dotted lines to identify exact
location of pulleys. See Page 43 “Cable View” for more detail.
Start by threading the cable into the floating pulley bracket.
You will need the following for installation:
Pulley (57) - Qty. 1
Cable (115) - Qty. 1
Nut (144) - Qty. 2
Washer (134) - Qty. 2
Bolt (141) - Qty. 2
Figure 23
Floating
Pulley
