Assembly

35

Step 21

Note: Stretch all cables out completely and make sure all twisting is removed before install-
ing.
Install Pec Dec Cable (112) as detailed in Figure 21. Follow dotted lines to identify exact
location of pulleys.
See Page 43 “Cable View” for more detail.

You will need the following for installation:
Cable (112) - Qty. 1
Pulley (57) - Qty. 3
Bolt (141) - Qty. 3
Washer (143) - Qty. 6
Nut (144) - Qty. 3
Philips Screw (103) - Qty. 2

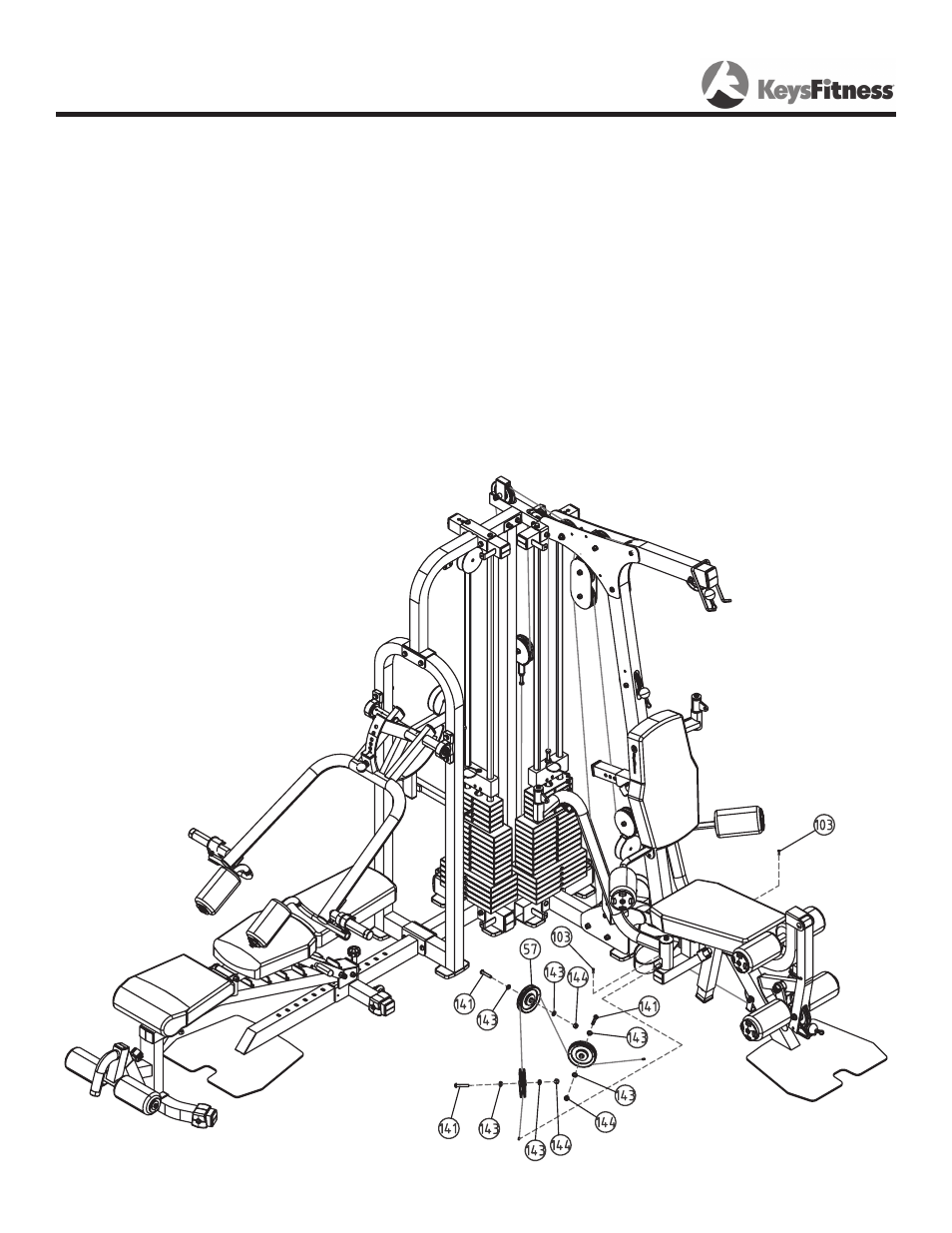

Figure 21
