Assembly

32

Step 18

Note: Stretch all cables out completely and make sure all twisting is removed before
installing.

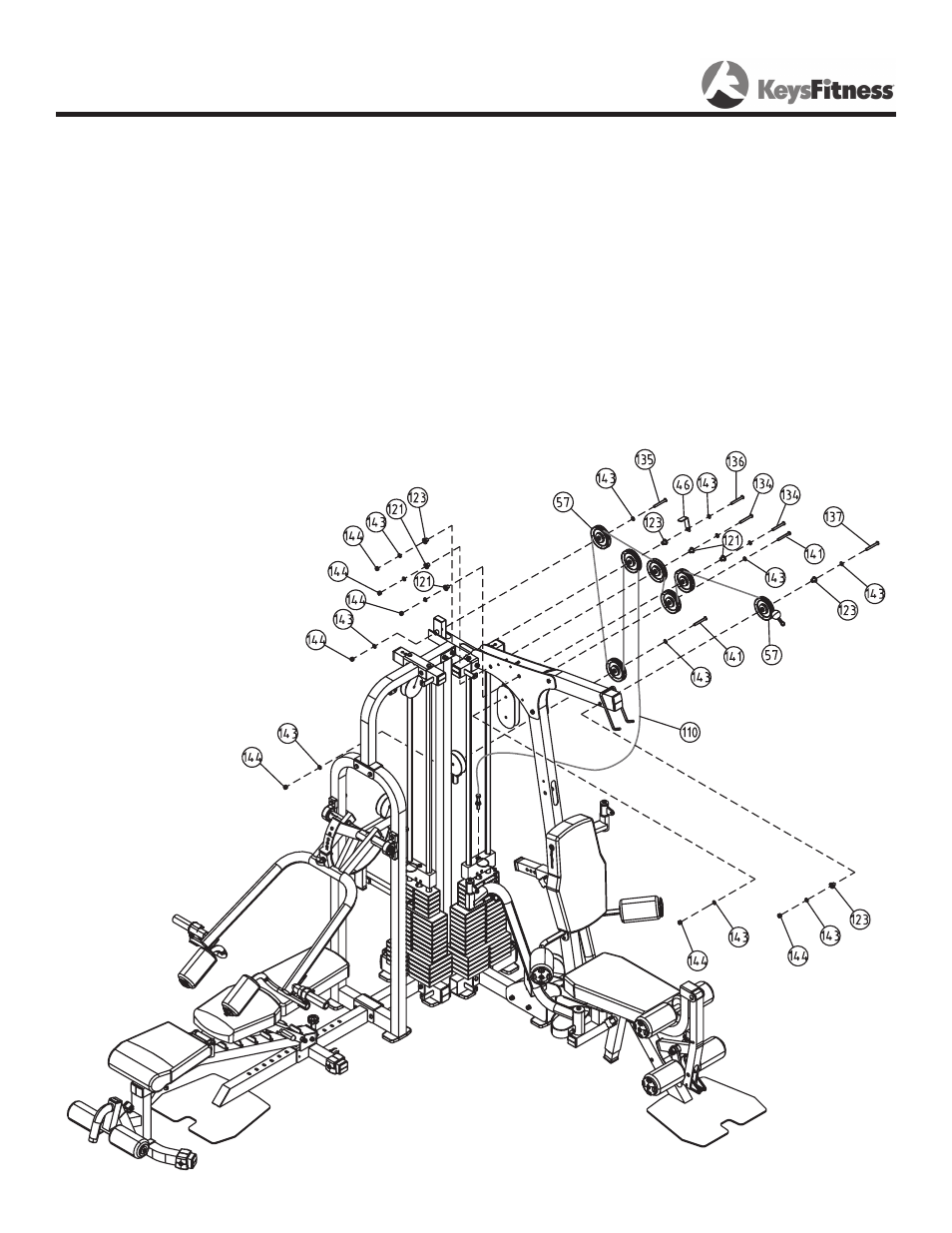

Install Lat Cable (110) as detailed in Figure 18. Follow dotted lines to identify exact location
of pulleys. See Page 43 “Cable View” for more detail.
 Start by threading cable end into Top Plate (55).
You will need the following for installation:
Pulley (57) - Qty. 7
Cable (110) - Qty. 1
Nut (144) - Qty. 7
Long Pulley Spacer (123) - Qty. 4
Longer Pulley Spacer (121) - Qty. 4
Washer (143) - Qty. 14

Figure 18

Bolt (134) - Qty. 2
Bolt (135) - Qty. 1
Bolt (136) - Qty. 1
Bolt (137) - Qty. 1
Bolt (141) - Qty. 2
