Assembly

34

Step 20

Note: Stretch all cables out completely and make sure all twisting is removed before
installing.

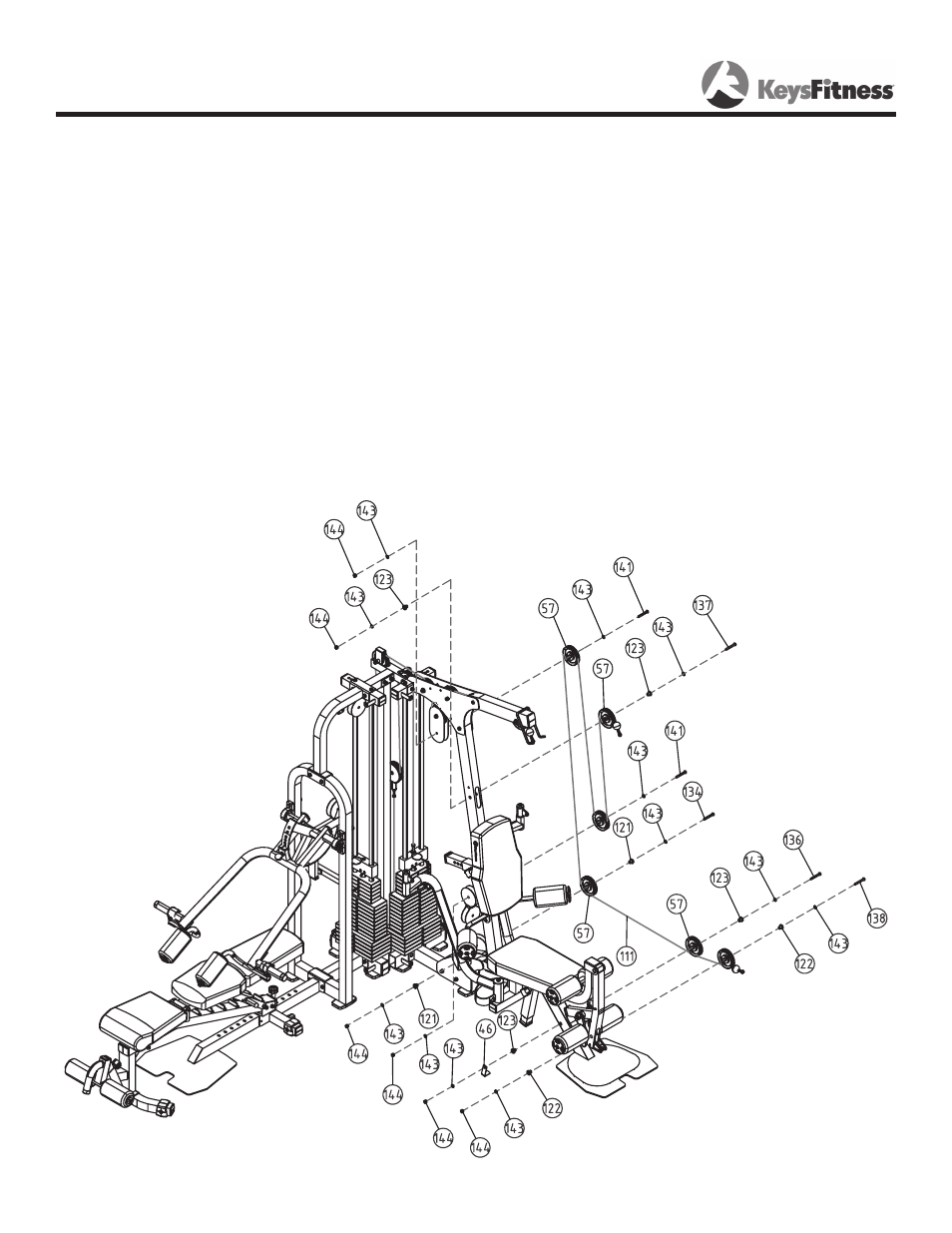

Install Low Row Cable (111) as detailed in Figure 20. Follow dotted lines to identify exact
location of pulleys. See Page 43 “Cable View” for more detail.

Start by installing cable under the pulley at Leg Extension location.
You will need the following for installation:
Pulley (57) - Qty. 6
Cable (111) - Qty. 1
Nut (144) - Qty. 6
Long Pulley Spacer (123) - Qty. 4
Longer Pulley Spacer (121) - Qty. 2
Short Pulley Spacer (122) - Qty. 2
Cable Retainer Bracket (46) - Qty. 1

Figure 20

Bolt (134) - Qty. 1
Bolt (136) - Qty. 1
Bolt (137) - Qty 1
Bolt (138) - Qty. 1
Bolt (141) - Qty. 2
Washer (143) - Qty. 12
