Step 22, Assembly – Keys Fitness Power System KF-2060 User Manual
Page 36
Assembly
36
Step 22
Note: Stretch all cables out completely and make sure all twisting is removed before
installing.

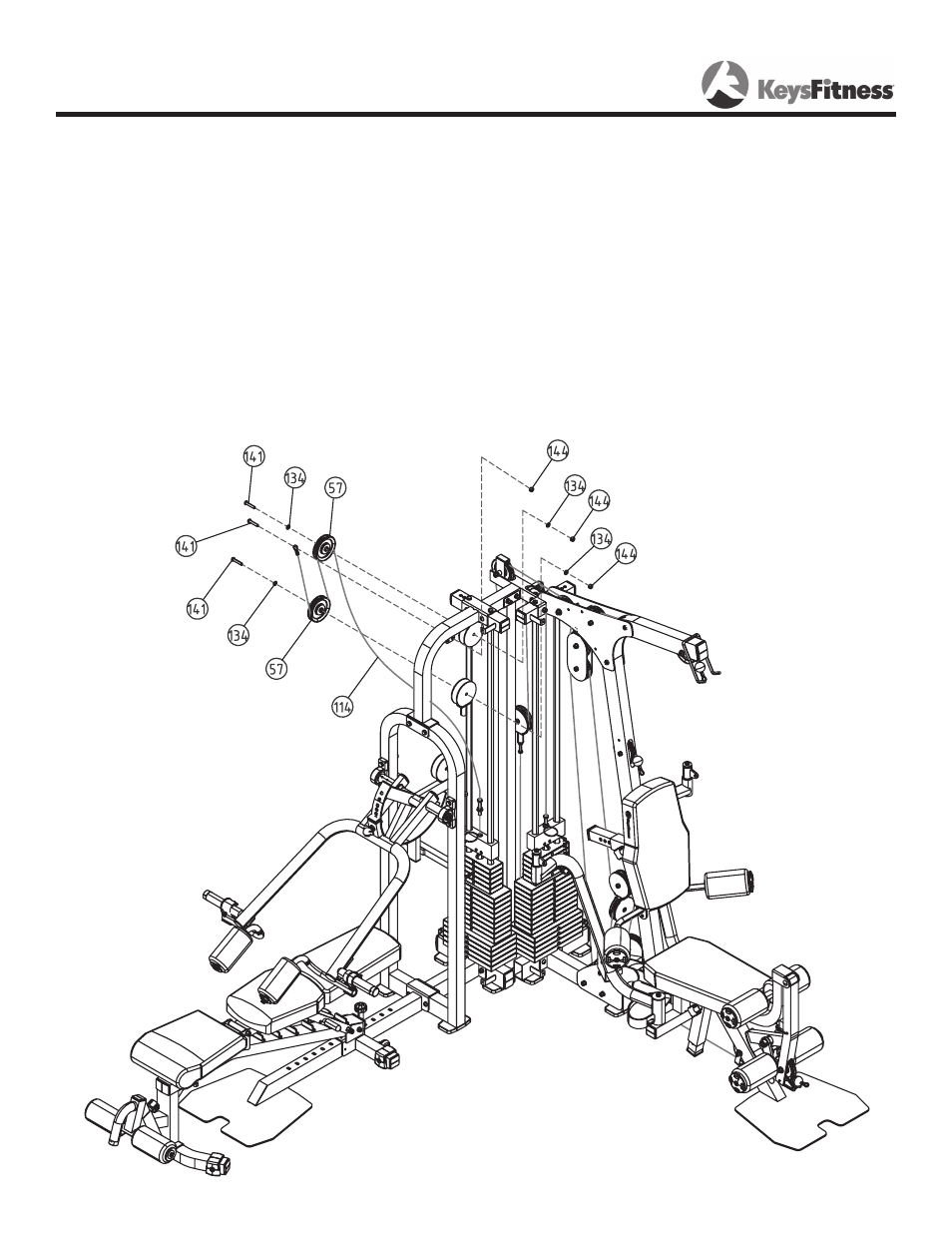

Install Long Chest Cable (114) as detailed in Figure 22. Follow dotted lines to identify exact
location of pulleys. See Page 43 “Cable View” for more detail.
Start by installing cable into the “Press Station” weight stack.
You will need the following for installation:
Pulley (57) - Qty. 2
Cable (114) - Qty. 1
Nut (144) - Qty. 3
Washer (134) - Qty. 4
Bolt (141) - Qty. 3
Figure 22
