Assembly

33

Step 19

Note: This step is only used if you do not have the Leg Press 3 attachment. If you do have
Leg Press 3 attachment, please follow instructions located in that manual. Use the Cable
Adapter (124) in place of the pulley.
Note: Stretch all cables out completely and make sure all twisting is removed before
installing.
Install Leg Press Cable Substitute (113) as detailed in Figure 19. Follow dotted lines to
identify exact location of pulleys.

You will need the following for installation:
Cable Adapter (124) - Qty. 1

Pulley Bracket with Shaft (33) Qty. 1

Cable (113) - Qty. 1

Bolt (139) - Qty. 1

Washers (143) - Qty. 2

Nylon Locknut (143) - Qty. 1

Nut (144) - Qty. 1

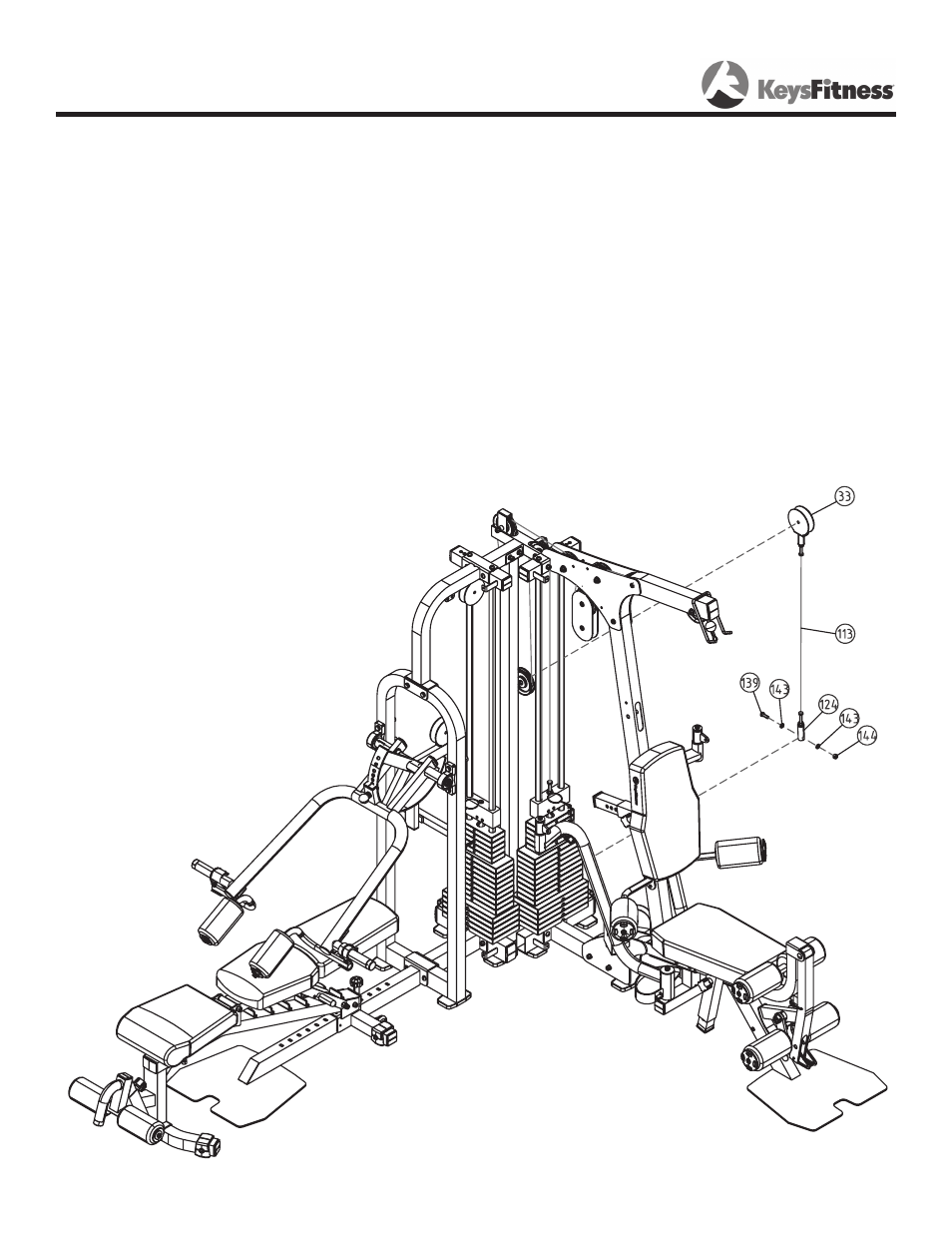

Figure 19
