Step 5, Assembly – Keys Fitness Power System KF-2060 User Manual

Page 19

Text mode
Original mode

Step 5

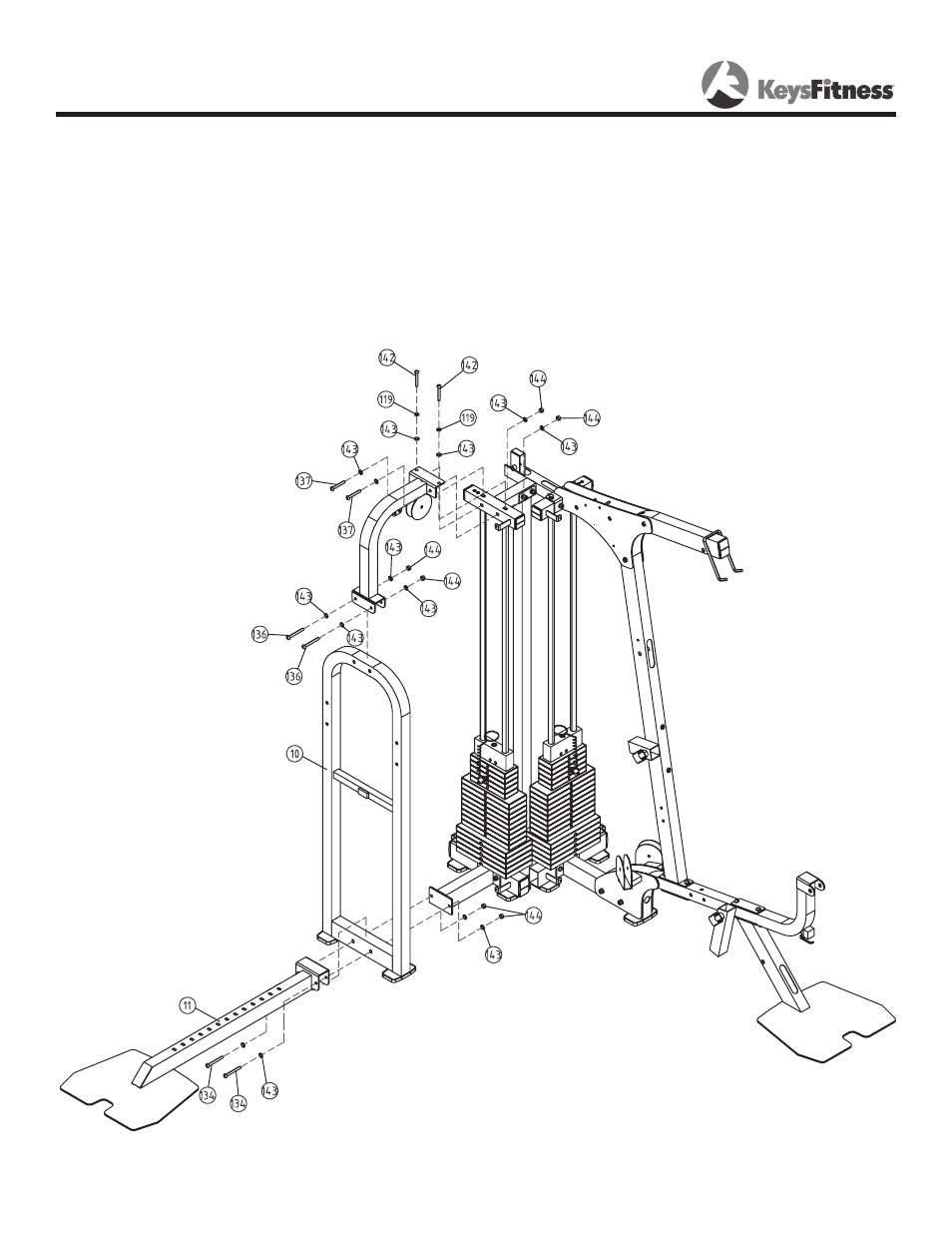

Slide Press Station Base Frame (11) over Press Arm Support (10). Next, attach both pieces
to Base Frame using two Nuts (144), four Washers (143), and two Bolts (134).
Install Left Top Frame over Press Arm Support (10) and Top Frame assembly. Secure top
section using two Nuts (144), four Washers (143), and two Bolts (137). Next, Secure lower
section using two Nuts (144), four Washers (143), and two Bolts (136). Secure top of Guide
Rods (47) using two Washers (143), two Spring Washers (119), and two Bolts (142).

Assembly

Figure 5
