Assembly

26

Step 12

Attach Bench Seat Pad Support (16) to Bench Main Frame using one Nut (126), two Washer

(125), and one Bolt (132).
Insert Bench Seat Pad Adjustment Bar (64) into Bench Main Frame and secure using one
Washer (125) and one Nut (126). Attach Spring (66) to Bench Main Frame and Bench Seat
Pad Adjustment Bar (64).
Note: Make sure adjustment bar is installed into adjustable slots on Bench Seat Pad
Support.

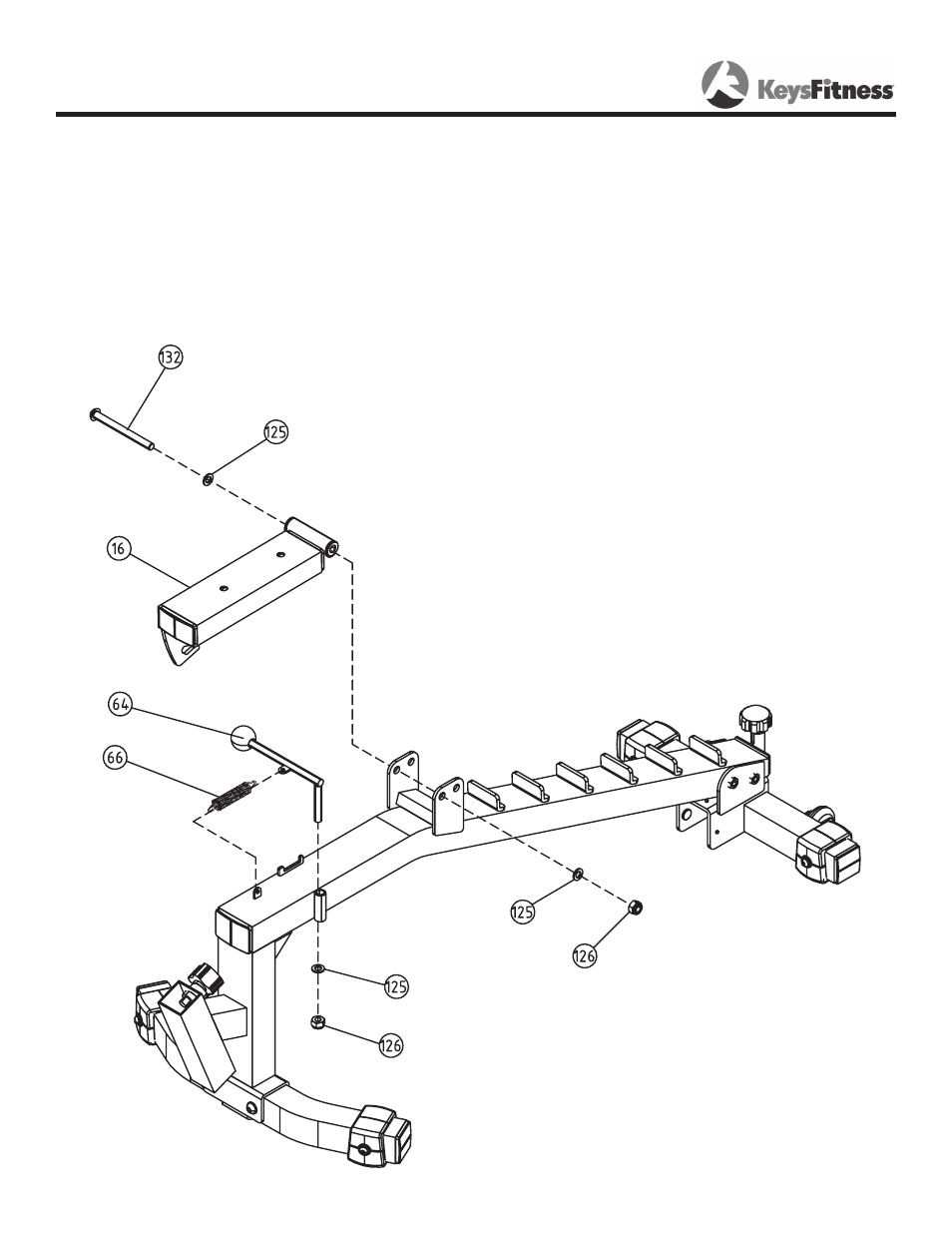

Figure 12
