Step 1
Attach Right Base Frame (4) to Rear Frame (1) using two Nuts (144), four Washers
(143), and two Bolts (137).
Attach Left Base Frame (8) to Rear Frame (1) using two Nuts (144), four Washers
(143), and two Bolts (137).
Insert Guide Rods (47) into Rear Frame (1). Next, slide Weight Stack Bumpers (99)
onto Guide Rods (47).
Attach Rear Upright (3) to Rear Frame (1) using two Nuts (144), four Washers (143),
and two Bolts (136).

Assembly

15

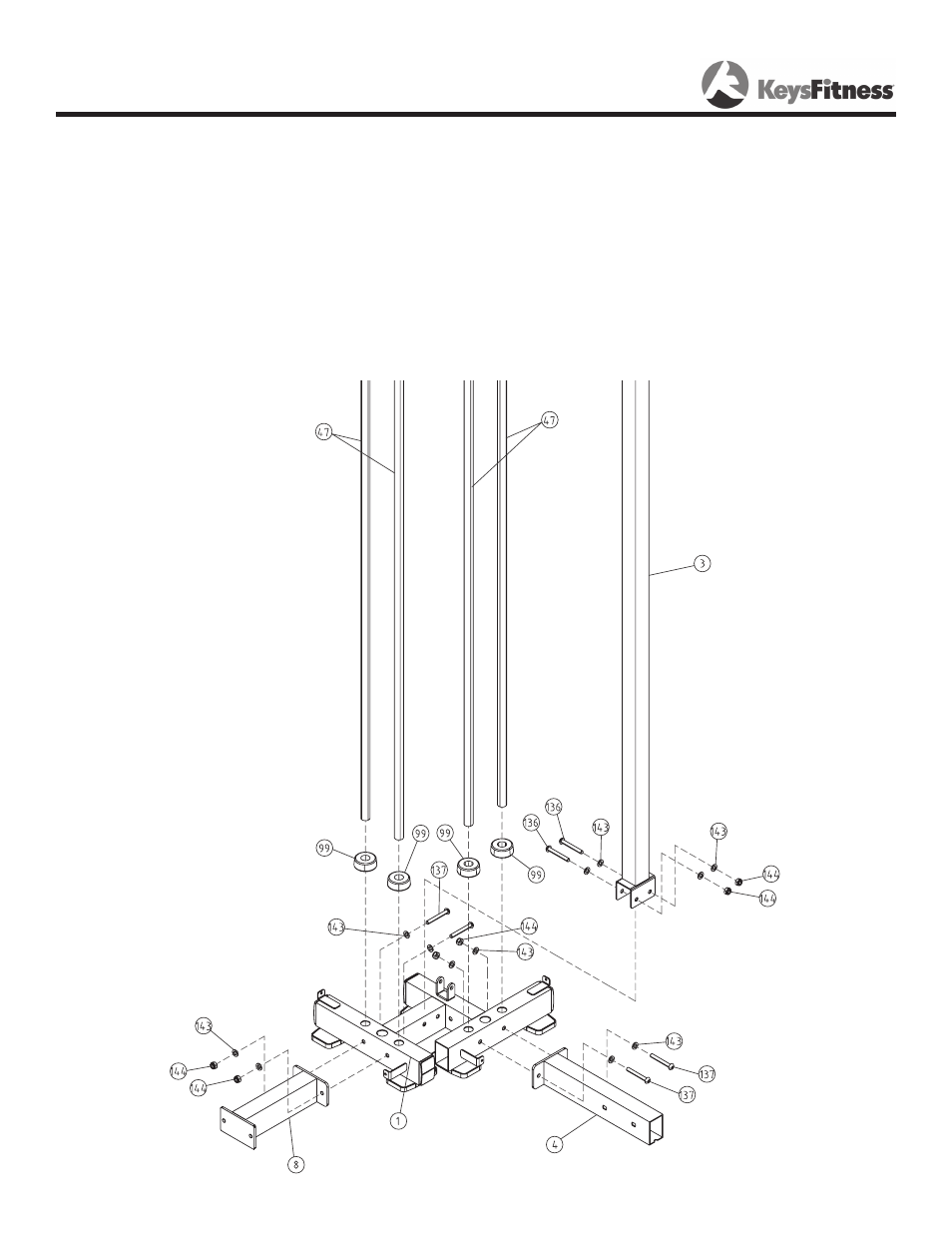

Figure 1
