Preparations
DVT-6200 (EN/K,E,X)
AM loop antenna
FM antenna

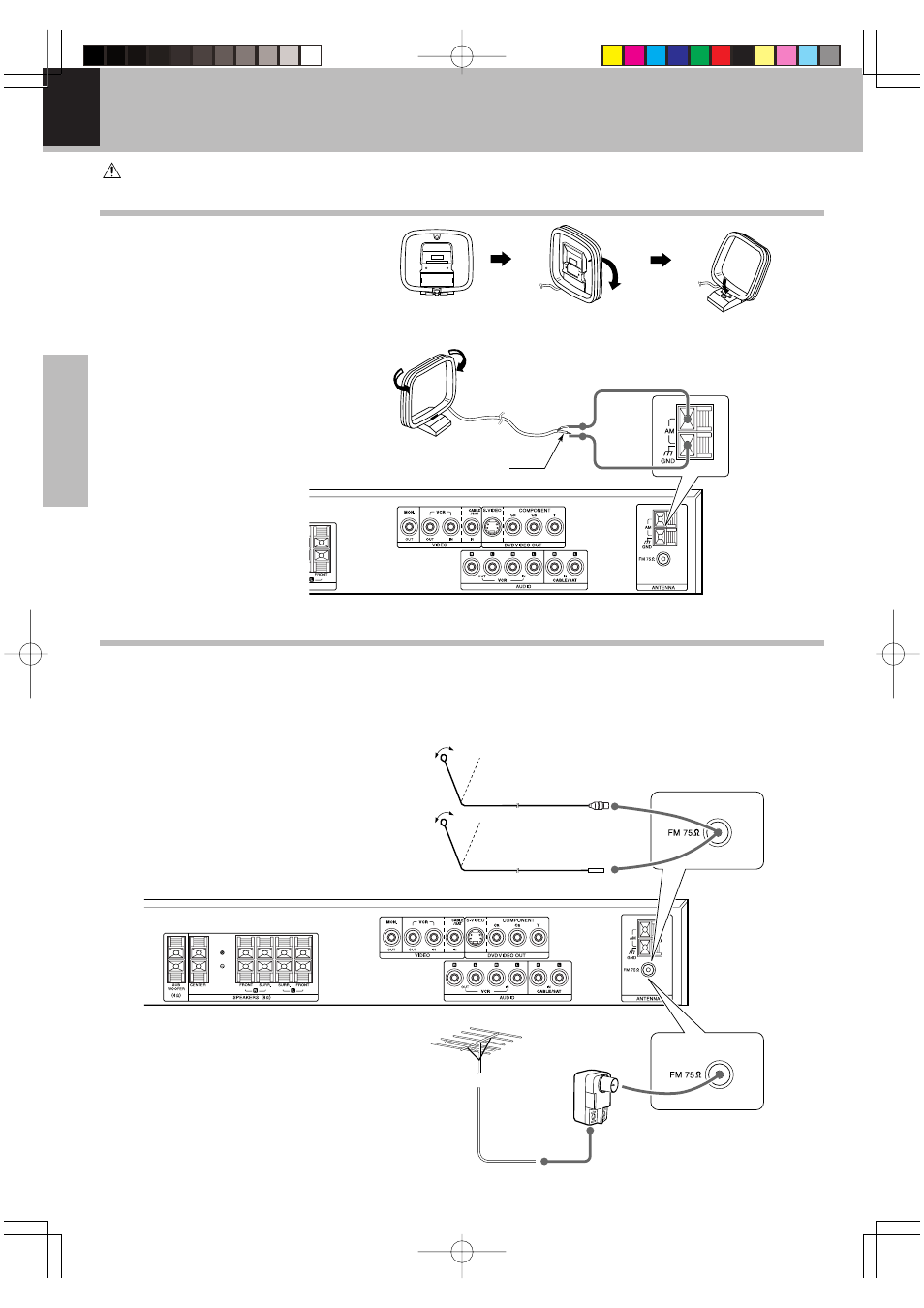

AM loop antenna connection
The supplied antenna is
for indoor use. Place it as
far as possible from the
main system, TV set,
speaker cords and power
cord, and set it to a direc-
tion which provides the
best reception.
FM indoor antenna connection
The accessory antenna is for
temporary indoor use only.
For stable signal reception
we recommend using an out-
door antenna. Remove the
indoor antenna if you con-
nect one outdoors.
1 Connect to the antenna terminal.
2 Locate the position providing good
reception condition.
3 Fix the antenna.
FM outdoor antenna
(commercially available)
Lead the 75 Ω coaxial
cable connected to the
FM outdoor antenna
into the room and con-
nect it to the FM 75 Ω
terminal.
