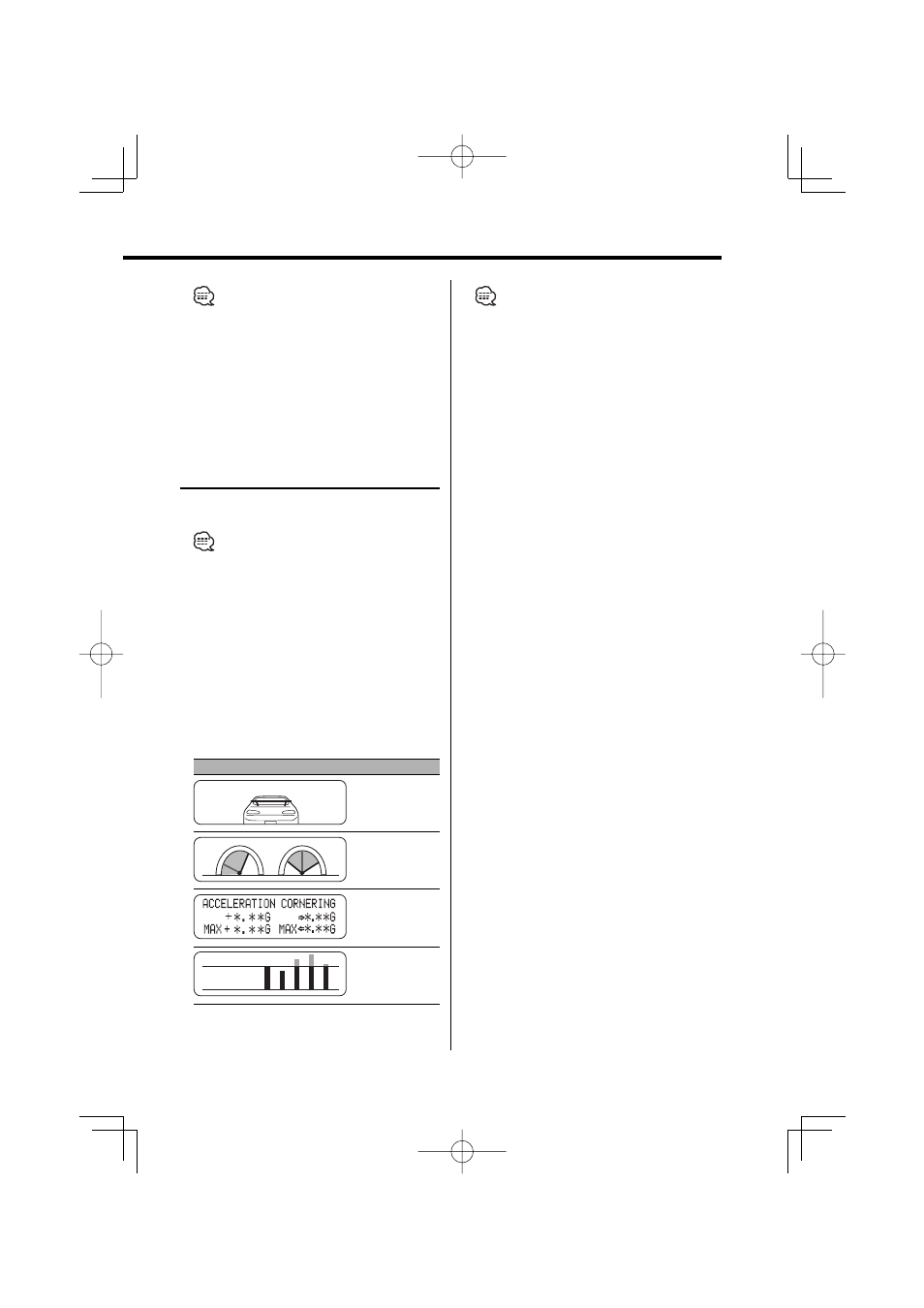

Function of the DPX701
Display Type E
G-Analyzer display Switching
Alternates G-Analyzer display when the Display
type is set to Display Type E. (G: gravity)
• Before alternating G-Analyzer display, you are
required to setup
1
Select the display mode
Press the [DISP] button.
Select the Display Type E.
2
Enter G-Analyzer display select mode
Press the [DISP] button for at least 1 second.
3
Select the G-Analyzer display
Push the Control knob towards [
4] or
[
¢].
G-Force Sensor display
G- Graphic display
G-Meter display
(Graphic)
G-Meter display
(Text)
Point
Time
G-Counter display
• G-Graphic display
Displays the condition of G in horizontal direction
(e.g; when turning the curve) by the graphic.
• G-Meter display (Graphic)
Displays the maximum value of acceleration G, right
direction G, and left direction G by the numerical
value.
• G-Meter display (Text)
The maximum value of acceleration G, right direction
G, and left direction G is displayed by the numerical
value. The value of G is only the reference, so is
different from the actual value.
• G-Counter display
Adds the point of the acceleration level. The point is
determined after a lapse of 1 hr drive or at power off
(ACC Off ), and then it will be displayed by the graph.
Furthermore, the G-Counter displays the average
of the past data by the line. (The scale of graph is
determined along with the largest point among the
past 10 data.)
• The value of G-Meter display and G-Counter display
can be reset by
4
Exit G-Analyzer display select mode
Press the [DISP] button.
