46
Multiple R
ooms
Chapter Four: Setting Up Multiple Rooms
SURROUND
CENTER
SUBWOOFER
DVD/6 CH. INPUT
VIDEO1
DVD
FRONT
R
L
AUDIO
SIGNAL GND
R
L
L
R
L
R
L
R
AUDIO
PRE OUT
PHONO
CD1
REC
OUT
PLAY
IN
MD/
TAPE1
REC
OUT
PLAY
IN
CD-R
VIDEO
AUDIO
CENTER
FRONT
SURROUND
SUB
WOOFER
REC
OUT
PLAY
IN
CD2/
TAPE2
MONITOR
SECOND ROOM
PRE OUT
PLAY
IN
PLAY
IN
PLAY
IN
VIDEO4
VIDEO3
VIDEO2
RECEIVER
2-CHANNEL
POWER
AMPLIFIER
ROOM A
ROOM B
Power Amp
LEFT
SPEAKER
RIGHT
SPEAKER

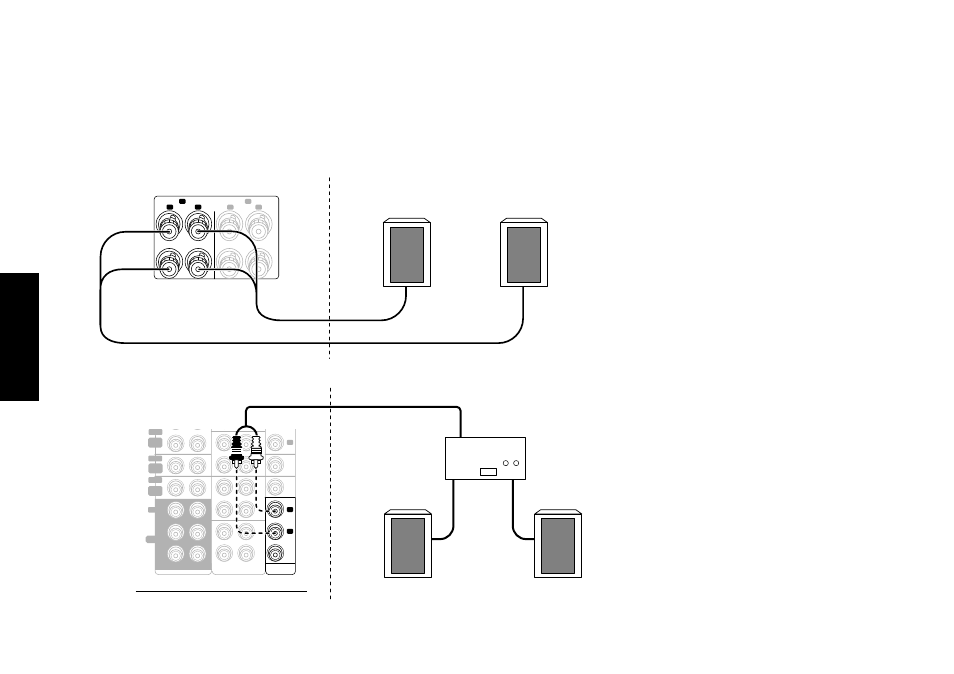

Making Connections
This section describes how to connect speakers in the two
rooms to support the different scenarios. Before you read
this section, Kenwood recommends reading “Connecting
Your Speakers” on page␣ 4 of this guide. In addition, this
section discusses how to connect a second TV/Monitor and
how to connect an IR Receiver, IR Repeaters, Relays, and a
TV On/Off Sensor (for use with Perfect Macro).
Scenario 1: Surround Sound in Room A only or Stereo in Room A and Stereo in Room B (Using the Receiver’s Speaker B Outputs)
The five amplifiers built into the receiver meet your sound
needs for both rooms. The built-in amplifiers allow you to
listen to full surround sound if you are listening in Room A
only, or stereo in Room A if both rooms are active. You will
always hear stereo in Room B. Make the speaker connec-
tions as shown in the illustration under “To Connect Front
and Surround Sound Speakers:” on page␣ 5, being sure to
also connect the Room B speakers to the SPEAKER B bind-
ing post.
You use an additional stereo amplifier for Room B. This
allows you to listen to full surround sound in Room A even
if both rooms are active. You will always hear stereo in Room
B. Make the speaker and amplifier connections as shown in
the illustration.
Scenario 2: Surround Sound in Room A and Stereo in Room B (Using a Stereo Amplifier in Room B)
Both Scenarios: Connecting a Second TV/
Monitor
If you plan to watch movies, or any other visual entertain-
ment activity in Room B, you must connect an additional
TV/Monitor. To do so, connect a standard composite video
cable from the Room B TV to the SECOND ROOM PRE
OUT VIDEO jack.
The above is possible only when the composite signals are
input.
FRONT SPEAKERS
(6 – 16
Ω
)
B
L
R
A
R
L
+
-
ROOM A
ROOM B
LEFT
SPEAKER
RIGHT
SPEAKER
RECEIVER
