28
Chapter One : Connecting Your Devices
Connections

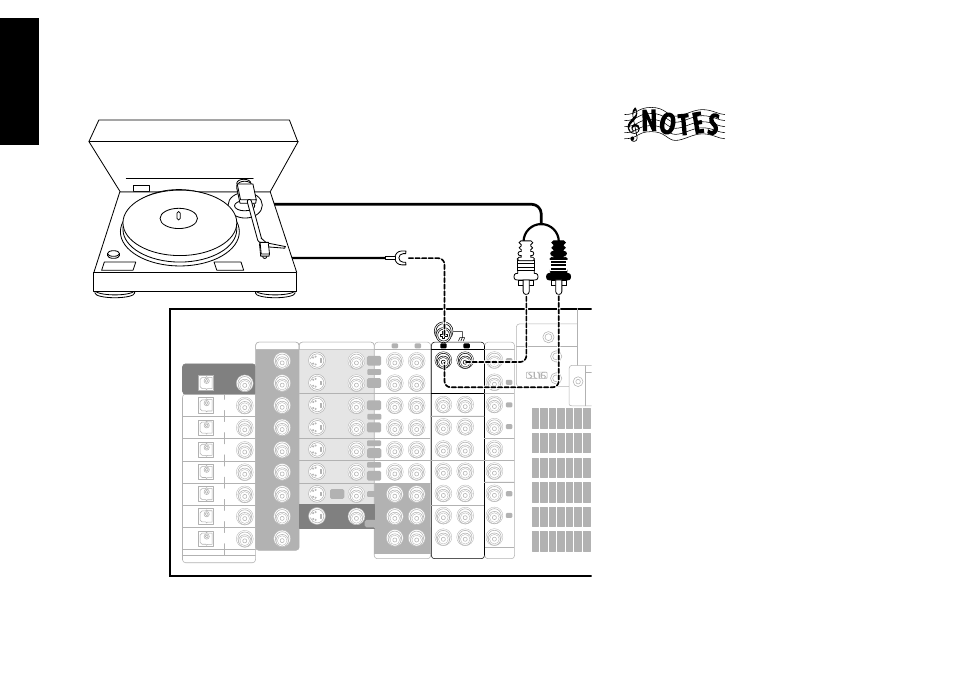

Connecting Your Turntable/Record Player
DIGITAL OUT
DVD
CD1
MD/
TAPE1
CD-R
VIDEO2
VIDEO3
VIDEO4
OPTICAL
DIGITAL IN
COAXIAL
Cr
Cb
Y
Cr
Cb
Y
Cr
VIDEO
4 IN
DVD
IN
MONITOR
OUT
Cb
Y
COMPONENT VIDEO S VIDEO VIDEO
REC
OUT
PLAY
IN
REC
OUT
PLAY
IN
PLAY
IN
PLAY
IN
PLAY
IN
MONITOR
OUT
SURROUND
CENTER SUBWOOFER
DVD/6 CH. INPUT
VIDEO4
VIDEO3
VIDEO2
VIDEO1
DVD
FRONT
R L AUDIO
SIGNAL
GND
R L
L
R
L
R
L
R
AUDIO PRE OUT
RF REMOTE ANTENNA
SYSTEM
CONTROL
PHONO
CD1
REC
OUT
PLAY
IN
MD/
TAPE1
REC
OUT
PLAY
IN
CD-R
VIDEO
AUDIO
CENTER
FRONT
SURROUND
SUB
WOOFER
REC
OUT
PLAY
IN
CD2/
TAPE2
MONITOR
SECOND ROOM
PRE OUT
SL 16
TEXT
RE
DC12
ANTE
AUDIO OUT
GND
Do not plug in the receiver to AC power until you have
connected all your devices.
This section focuses on the connections from your turntable/
record player to the VR-4900/VR-4700/KRF-V9993D. Please
refer to your turntable/record player’s instructions for more
detail about its connection jacks and capabilities.
To Connect a Turntable/Record Player:
1. Connect the audio cables from the turntable audio out-
put jacks to the receiver’s PHONO R and L jacks.
2. If your turntable includes a ground cable, connect the
ground cable to the receiver’s SIGNAL GND jack.
3. Go to “Noting Your Devices” on page␣ 3 and note which
jacks you used to connect your turntable. In addition,
note the brand name and model number of the turn-
table.
