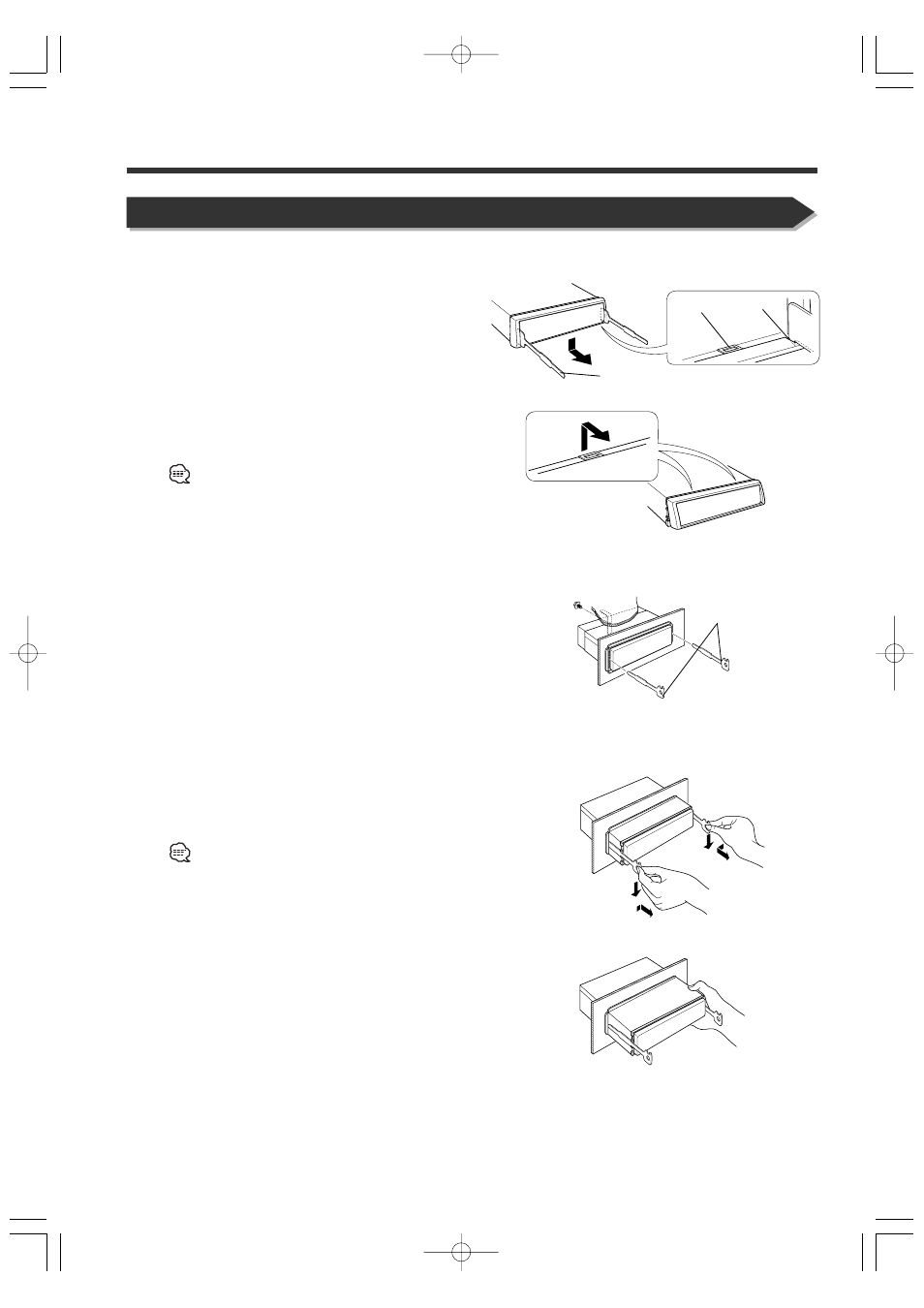

1. Engage the catch pins on the removal tool 7 and
remove the two locks on the lower level.
Lower the frame and pull it forward as shown in the
figure.
2. When the lower level is removed, remove the upper
two locations.
The frame can be removed from the top side in the
same manner.
1. Refer to the section
Frame> and then remove the hard rubber frame.
2. Remove the Hex-head screw with integral washer (M4 ×
6) on the back panel.
3. Insert the two removal tools 7 deeply into the slots on
each side, as shown.
4. Lower the removal tool toward the bottom, and pull out
the unit halfway while pressing towards the inside.
Be careful to avoid injury from the catch pins on the
removal tool.
5. Pull the unit all the way out with your hands, being
careful not to drop it.
Accessory 7
Accessory 7
Catch
Lock
■ Removing the Hard Rubber Frame
■ Removing the Unit
Removing Monitor/Player Unit
Installation
