22 English

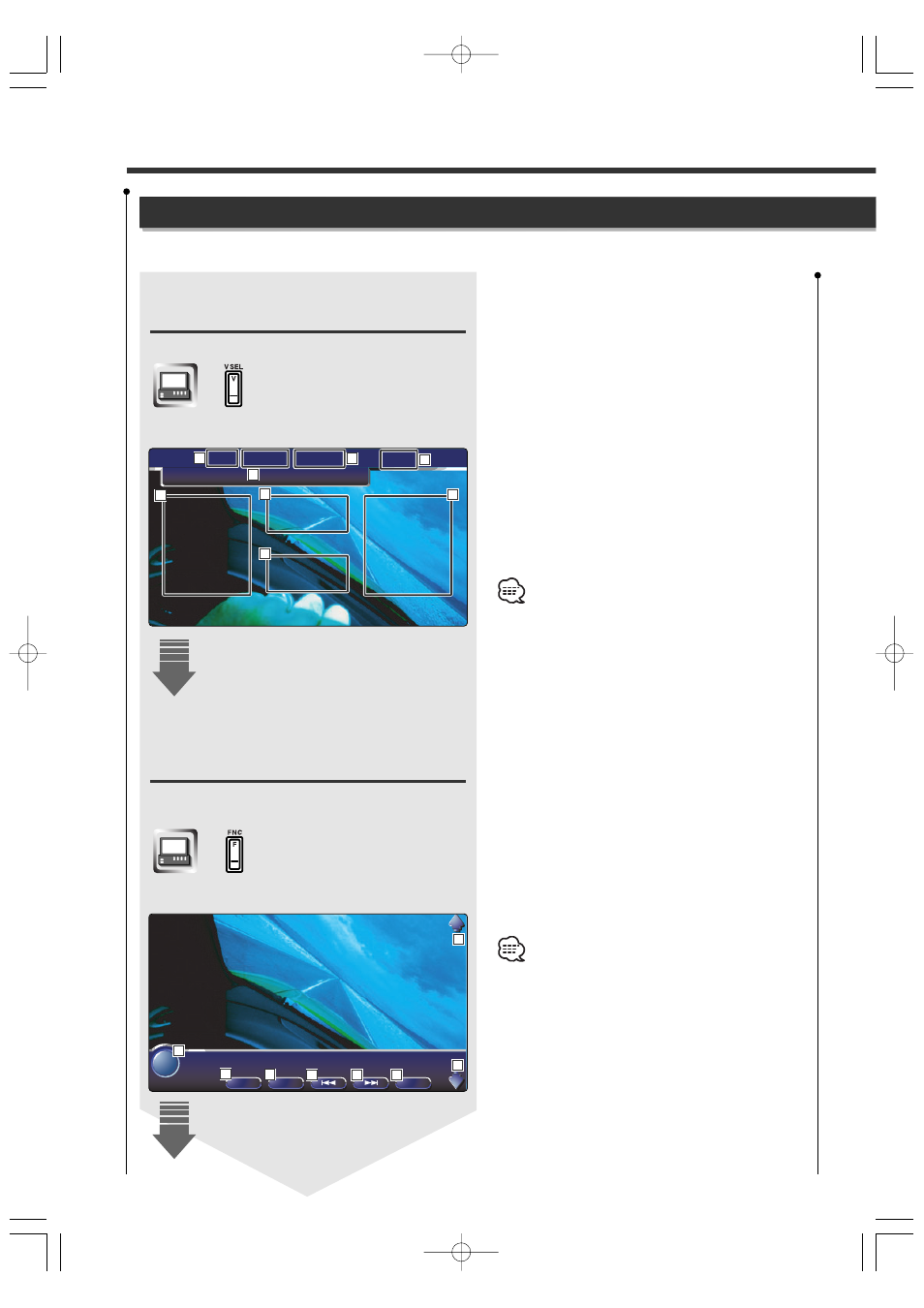

Displaying the TV Picture
screen
Various control screens appear in the TV Source mode.
TV Picture screen
Displaying the Easy Control
Panel
The Control Panel is displayed in a floating position of the
TV picture.
Displaying the Easy Control Panel
1 TV Band Number Display
2 TV Area Group Display (see page 70)
3 Memory Number Display
4 Channel Number Display
5 Channel Up Area
Increase the channel.
6 Channel Down Area
Decrease the channel.
7 Band/Video Switch Area
Switches to TV1, TV2, VIDEO1 or VIDEO2.
8 Information Display Button Area
• For TV picture selection and receiver key
operations, see
(see page 10).
• The information display is cleared automatically
after approximately 5 seconds. Also, the
information can be displayed automatically when
it is updated (see page 64).
9 Adjusts the volume.
p Switches the source.
q Switches to Video (VIDEO1 or VIDEO2).
w Switches the TV band (to TV1 or TV2).
e Calls up a channel.
r Switches the Seek mode.
(see page 24 for the )
The Easy Control Panel display is cleared when you
touch the center of image display area.
TV Control
Various control screens appear in the TV Source mode.
TV Control
Selects the
TV Pictures.
Mode: FULL
AUTO1
AVOUT: TV
1 TV 1 Group Preset 3 2 ch TV
5 6 7
8
1
2
3 4
SRC
SEEK TV VIDEO
TV1 2 ch TV
AUTO1
1 Group Preset 3
9
9
10
11 12 13 13 14
