12

2. Front and rear panel

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

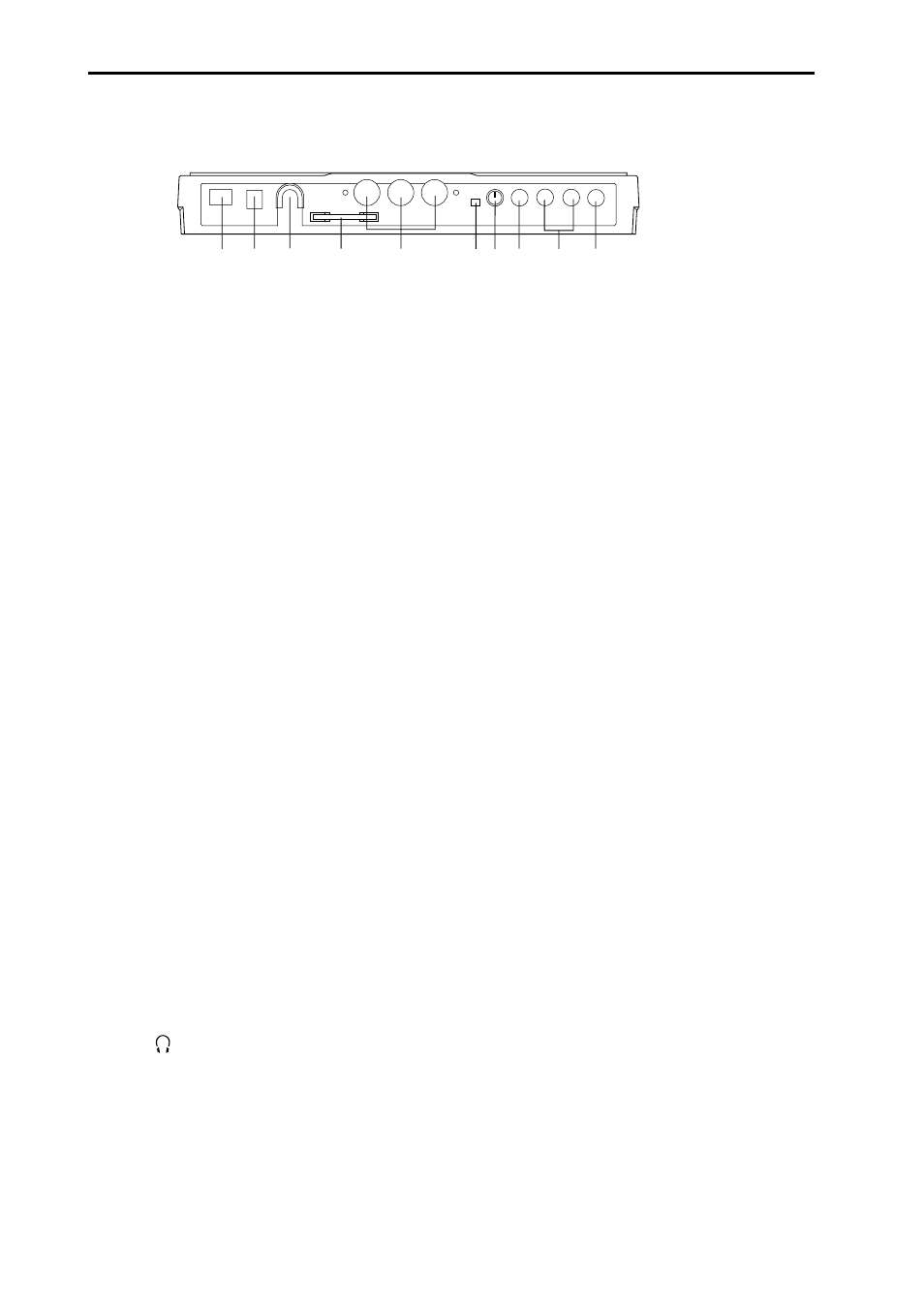

Connector section

1

2

3

4

5

6 7 8

9

10

1. Power switch

This switch turns the power on/off. Each time you press it, the power will alternate
between on or off.

2. DC 9V

Connect the included AC adapter here.

3. Adapter cable holder

Hook the adapter cable around this so that it will not be disconnected accidentally.

4. SmartMedia

TM

slot

A SmartMedia

TM

card can be inserted into this slot. Use this when you wish to save or

load ES-1 data.

5. MIDI connectors

IN

MIDI data is received at this connector to control the ES-1 from an external
MIDI device or to receive a data dump.

OUT

MIDI data is transmitted from this connector to control an external MIDI de
vice or to transmit a data dump.

THRU

MIDI data received at the MIDI IN connector is re-transmitted without change
from this connector. This is used to "daisy-chain" multiple MIDI devices.

6. MIC/LINE (gain select switch)

This switches the input gain of the audio input. When a mic is connected, set this to
the MIC position. Otherwise, set this to the LINE position.

7. LEVEL (input level)

This adjusts the input level of the audio input.

8. ST./MONO (audio in jack)

This jack is used for the audio in part. The sound that is input here will be used as the
sound of the Audio In part select key. If the input source is stereo, use a stereo phone
jack to make connections.

9. L/MONO, R (line output) jacks

Connect your audio cables from these jacks to your mixer or powered monitor system
(powered speakers) etc. If you wish to make monaural connections, connect the L/
MONO

jack.

10. (headphone jack)

A set of stereo headphones fitted with a stereo 1/4” jack plug can be connected here.
