2.3 The Front Panel

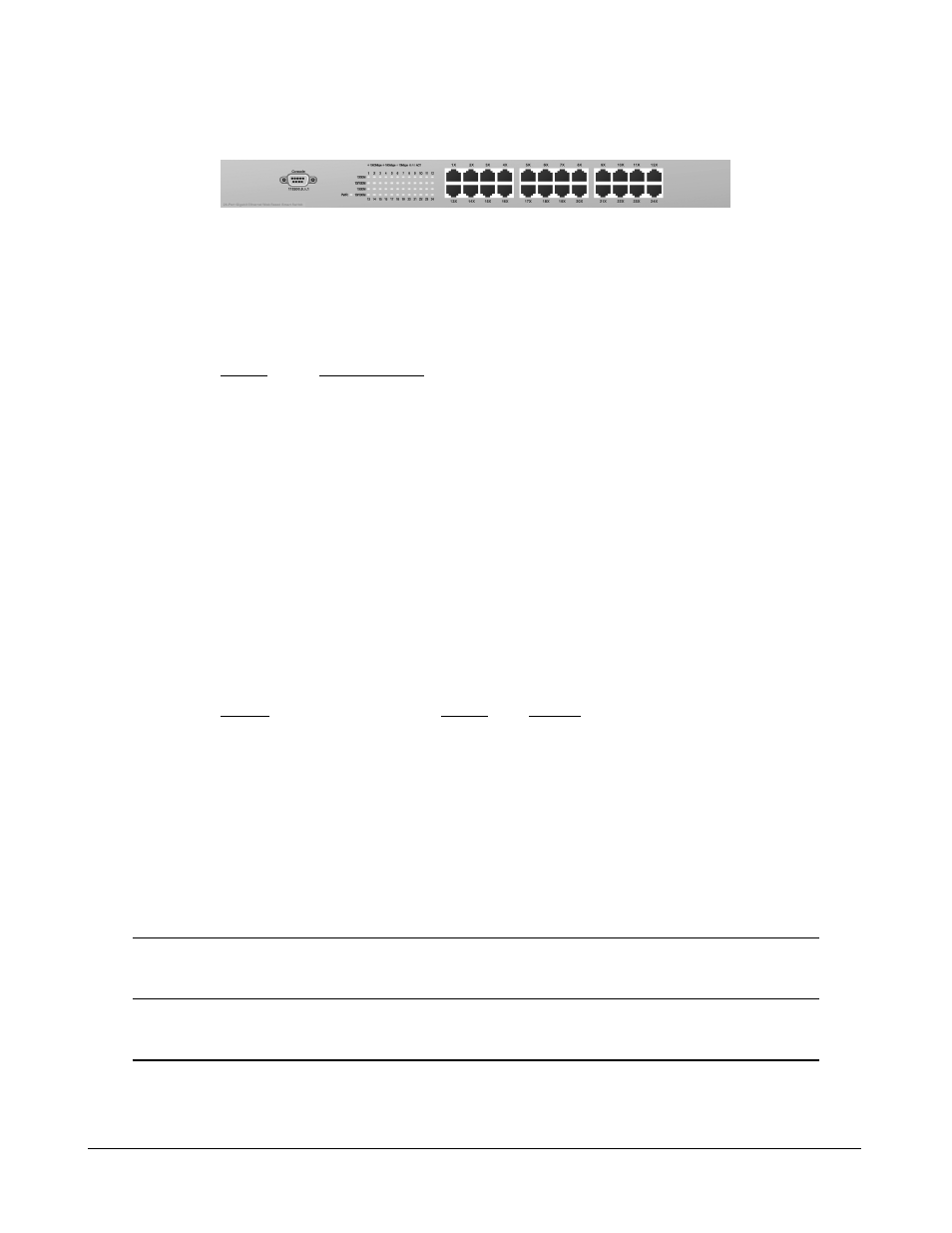

The front panel of the switch is shown as below:
Port Operation
There are 24 * 1000Mbps RJ-45 (copper) ports on the front panel.
The auto-negotiation feature of the switch allows each port of the device running at one of the follow-
ing operation modes:
Speed Duplex Mode
10Mbps Full Duplex
Half Duplex
100Mbps Full Duplex
Half Duplex
1000Mbps Full Duplex
All ports supports MDI/MDI-X auto crossover capability that is the port can connect either the PC or
hub without crossover cable adjustment.
Wiring for 10/100/1000Mbps (Copper)
Following are the summaries of cabling required:
Media Speed Wiring
10/100/1000Mbps copper 10Mbps Category 3,4,5 UTP/STP
100Mbps Category 5 UTP/STP
1000Mbps Category 5,5e UTP/STP
LEDs Definition
The rich diagnostic LEDs on the front panel can provide the operating status of individual port and
whole system.
Power LED This indicator lights green when the switch is receiving power; otherwise, it is
off.
Port LEDs Every RJ-45 port on the front panel relevant two LEDs (10/100M; 1000Mbps)
for indicating the connection speed and activity status.
