-22-

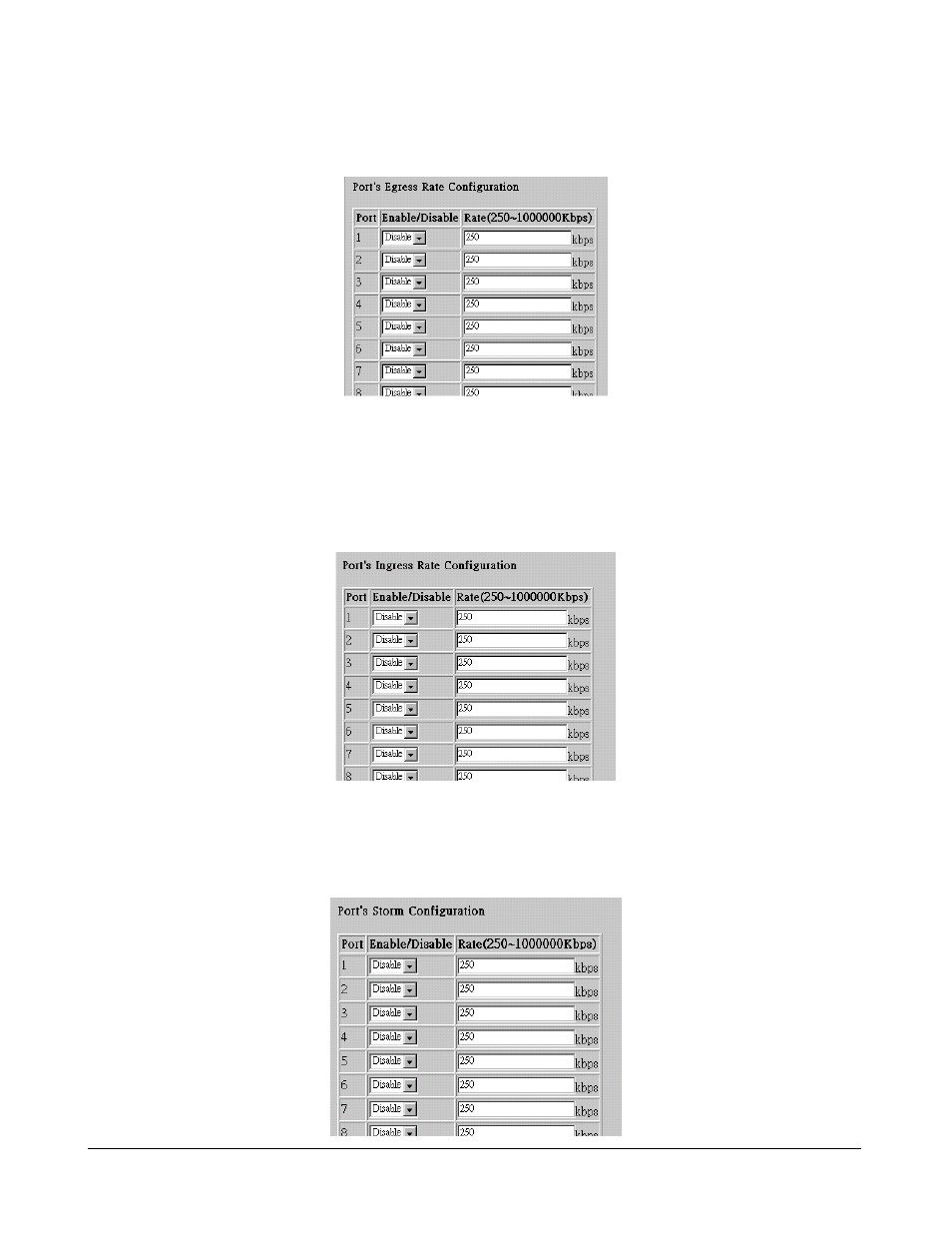

5.2.5.2 QoS Port Egress Rate Control
To limit the out-going packet rate, select [Enable] and enter the value you need from 250~1000000K
bps. The packet rate over the limitation will be discarded. Click [Apply] to save settings.
5.2.5.3 QoS Port Ingress Rate Control
To limit the in-coming packet rate, select [Enable] and enter the value you need from 250~1000000K
bps. If the packet rate is larger than the limitation, the switch will make the connected device on the
port to suspend the frame transmission by using flow control mechanism. Click [Apply] to save set-
tings.
5.2.5.4 QoS Port Broadcast Storm
To prevent the broadcast storm, the switch provides the multicast packet rate control setting. You can
select [Enable] and enter the value, and click [Apply] to save the setting.
