23.5 Example of Kerio VPN configuration: company with a filial office
305

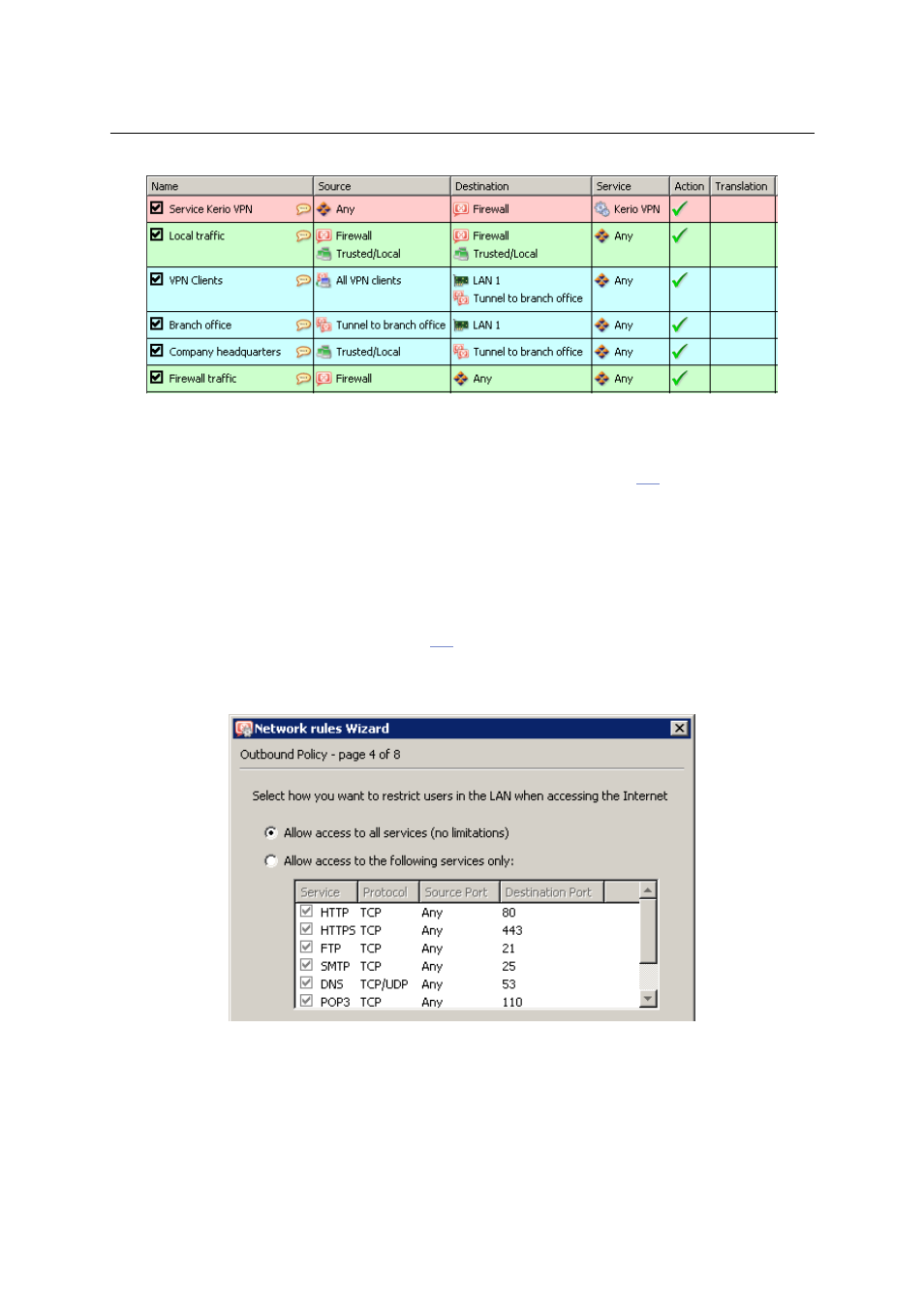

Figure 23.21 Headquarter — final traffic rules
Rules defined this way meet all the restriction requirements. Traffic which will not match
any of these rules will be blocked by the default rule (see chapter 7.3 ).
Configuration of a filial office
1. Install WinRoute (version 6.0.0 or later) at the default gateway of the branch office
(“server”).
2. Use Network Rules Wizard (see chapter 7.1 ) to configure the basic traffic policy in WinRoute.
To keep the example as simple as possible, it is supposed that the access from the local
network to the Internet is not restricted, i.e. that access to all services is allowed in step 4.
Figure 23.22 Filial — no restrictions are applied to accessing the Internet from the LAN
