36 | KDV-3241Y

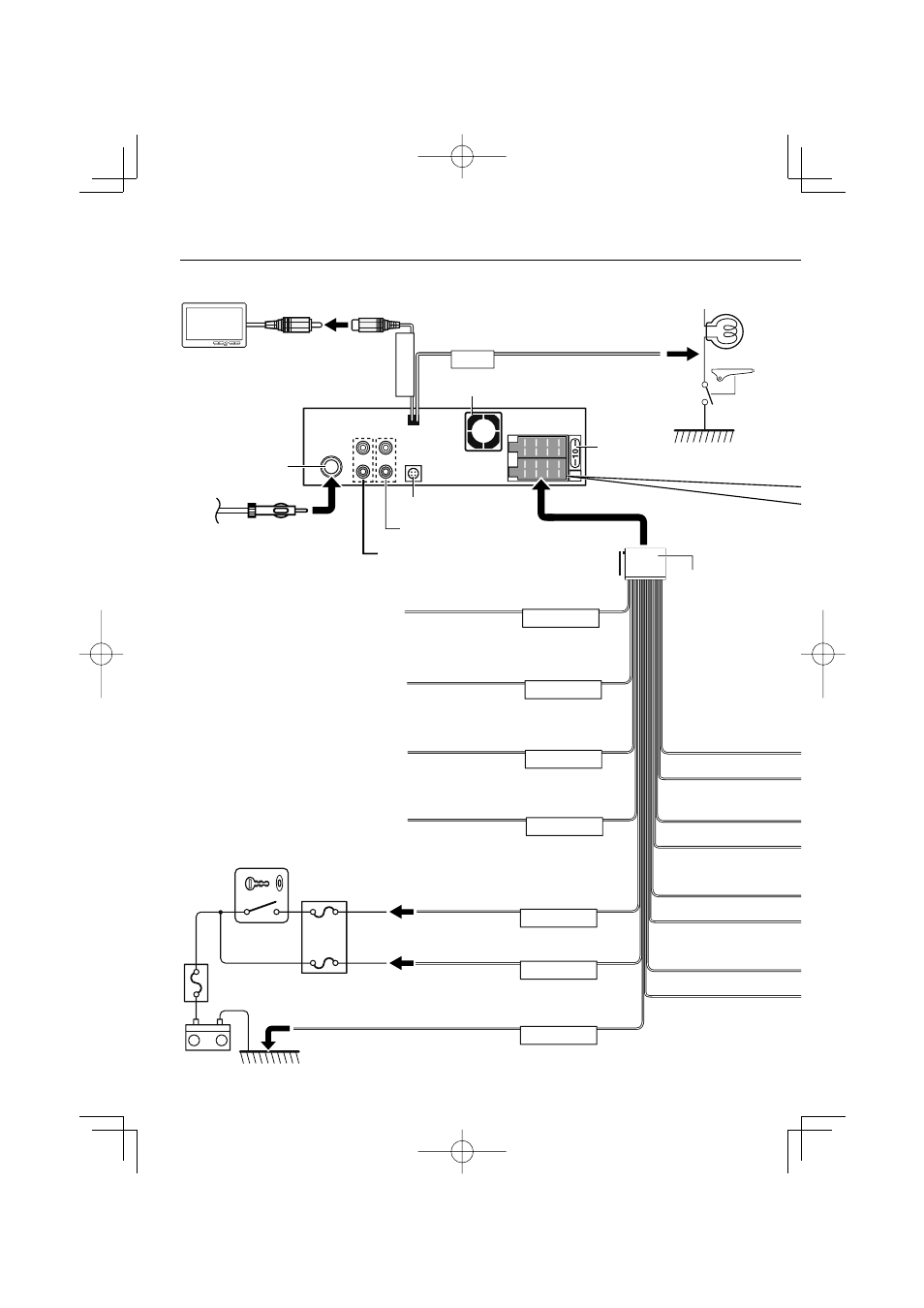

Connecting Wires to Terminals
H.BRK
– +
POWER ANTENNA
PHONE MUTE
DIMMER
TO BATTERY (+)
TO IGNITION
GROUND(–)
REMOTE ON
VIDEO OUTPUT
Ground wire (Black) - (To car chassis)
Battery wire (Yellow)
Ignition wire (Red)
Battery
Car fuse box
(Main fuse)
Ignition key
switch
Car fuse box
ACC
Fuse (10A)
Wiring harness
(Accessory1)
Television monitor, etc
(optional accessory)
For the sake of safety, be
sure to connect the parking
sensor.
Visual output (Yellow)
Parking sensor wire Detection
cable (Light Green)
Rear preout
Subwoofer preout Antenna Cord
FM/AM antenna input (JASO)
Depending on what antenna you are using,
connect either to the control terminal of the motor
antenna, or to the power terminal for the booster
amplifier of the film-type antenna.
Motor antenna control wire (Blue)
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
To car light control switch
Digital optical out
(Do not use)
Cooling fan
Mute wire (Orenge)
Dimmer control wire (Pink)
Connect either to the power control terminal when
using the optional power amplifier.
Power control wire (Blue/White)
