A-61510 January 2005 1-4
Another example of a simultaneous output where all four images are
returned to the host would create the following four files:
• Front grayscale: FG.jpg. This image file represents the contents of
the front side of the document using 8-bits per pixel.
• Front bi-tonal/binary: FB.tif. This image file represents the
contents of the front side of the document using 1-bit per pixel.
• Rear grayscale: RG.jpg. This image file represents the contents of
the rear side of the document using 8-bits per pixel.
• Rear bi-tonal/binary: RB.tif. This image file represents the contents
of the rear side of the document using 1-bit per pixel.
NOTE: Actual file formats are determined by the host application.
These image files can be controlled through the application
independently.

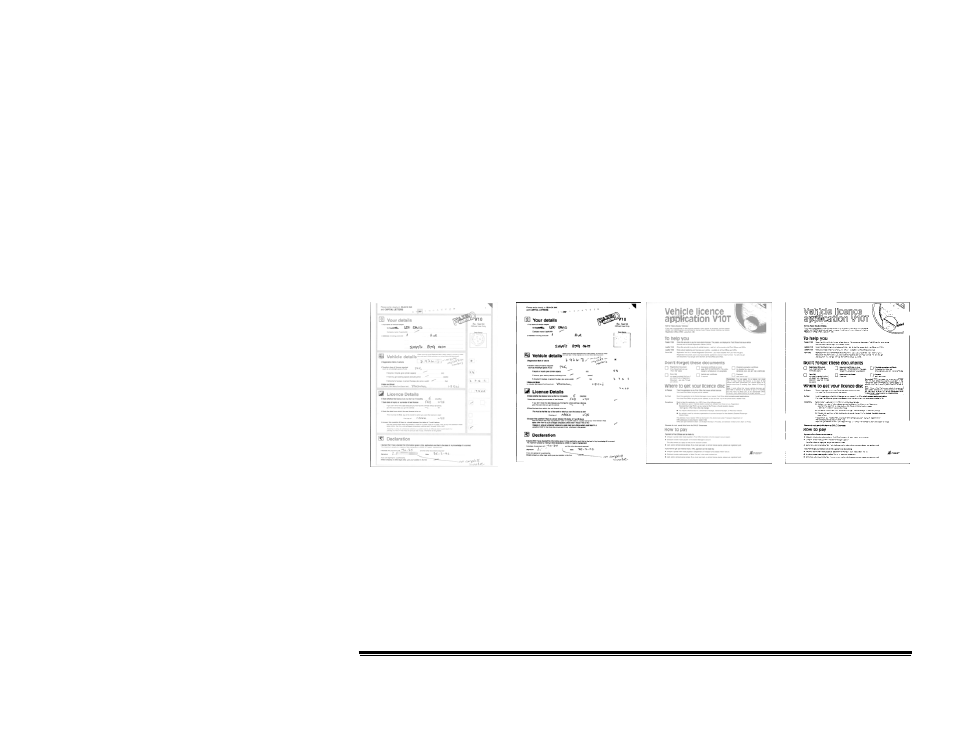

FG.jpg (front
grayscale)
FB.tif (front
bi-tonal/binary)
RG.jpg (rear
grayscale)
RB.tif (rear
bi-tonal/binary)
