J10 VGA Connector
The J10 is a 5x2 pin connector with step =2.54 mm.
J10
VGA

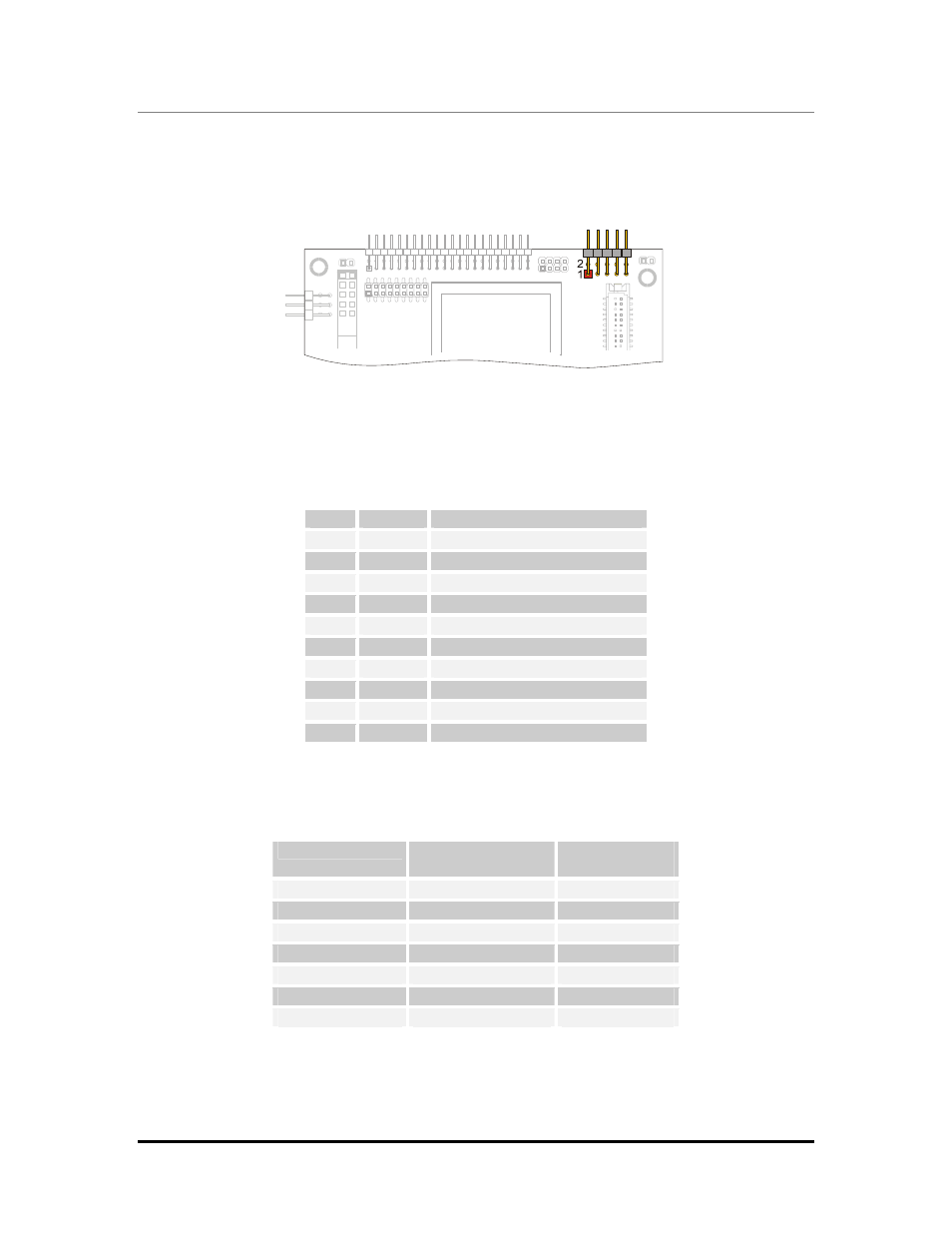

Figure 17. J10 Connector layout
Refer to the following table for the VGA connector assignment.
Table 15. J10 VGA Connector
Pin Signal Function
1 VSYNC Vertical synchronization
2 HSYNC Horizontal synchronization
3 DDC0 Display Data Channel - Data
4 RED Analog RED
5 DDC1 Display Data Channel - Clock
6 GREEN Analog GREEN
7 NC
8 BLUE Analog BLUE
9 GND Analog ground
10 GND Analog Ground
The following table shows the supported CRT-VGA Display Modes
1
Table 16. Table CRT Display Modes 1
Resolution Simultaneous
Colors
Refresh Rate
(Hz)
640x480 8bpp 256 colors 60, 72, 75, 85
640x480 16bpp 64K colors 60, 72, 75, 85
800x600 8bpp 256 colors 60, 72, 75, 85
800x600 16bpp 64K colors 60, 72, 75, 85
1024x768 8bpp 256 colors 60, 70, 75, 85
1024x768 16bpp 64K colors 60, 70, 75, 85
1280x1024 8bpp 256 colors 60, 75, 85
1.- This list is not meant to be a complete list of all the possible supported CRT display modes
