General guide

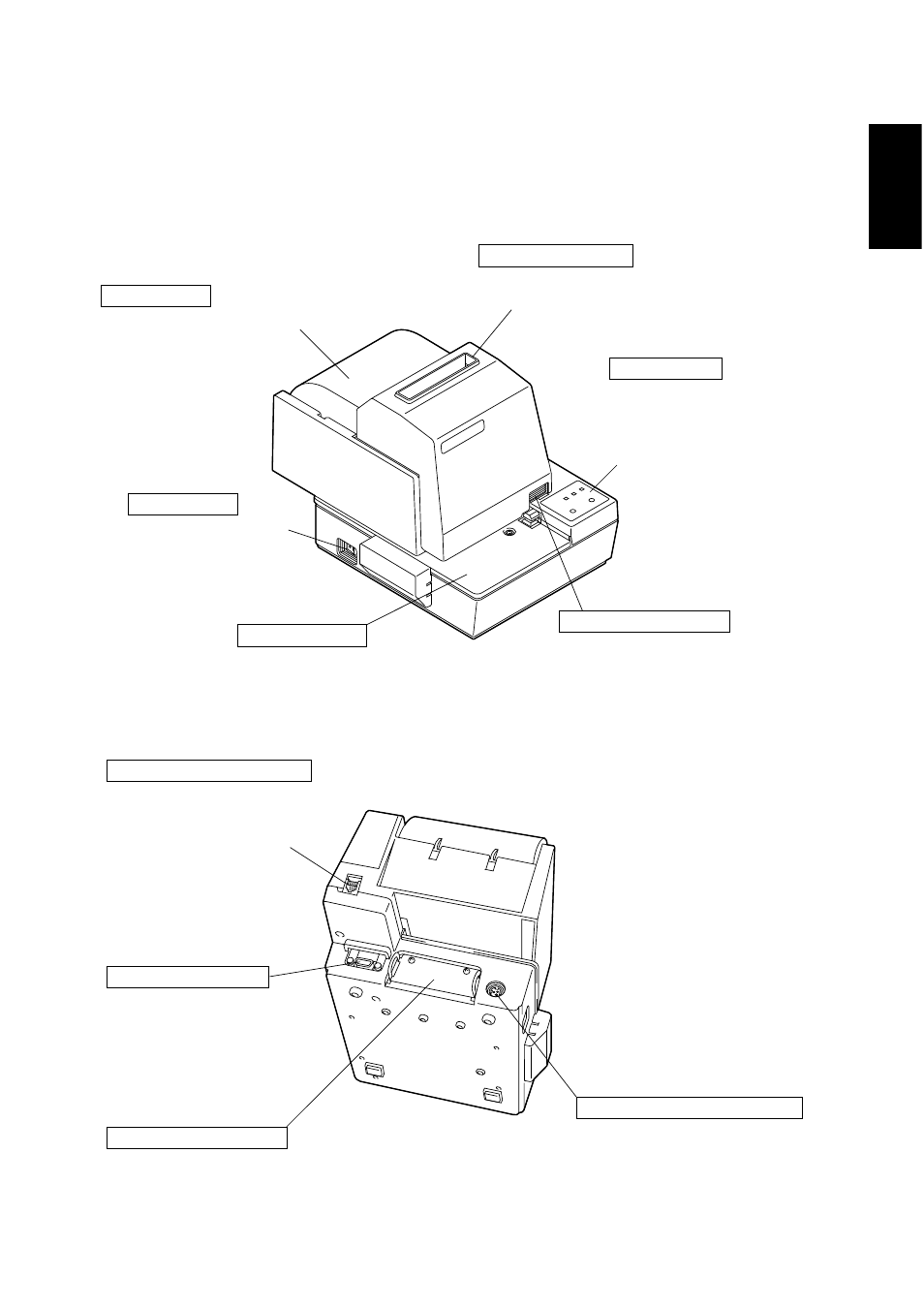

The following illustrations describe the major components, buttons, and
connectors of your printer.
Printer cover
Protects internal components.
Control panel
Three indicators show
the printer status, and two
switches provide control
over printer functions.
Printer cover release
Press here to release the printer
cover when opening it.
Power switch
Turns printer power
on and off.
Document table
Supports slip paper feed
into the slip printer.
Roll paper exit slot
Ejects roll paper after printing
by the receipt printer.
AC adaptor cable connector
For connection of the AC
adaptor. Never unplug the AC
adaptor while the printer is on.
Peripheral unit connector
Modular jack for connection of
cash drawers, etc. Do not
connect a telephone line to
this connector.
Interface connector
For connection to a host
computer.
Optional interface slot
Insert the optional RS-232C serial
interface (D-sub 25 pin) or centronics
parallel interface.
