3.2 Record Setup menu
3.2.1 Record
Type
Users can select either Quad mode or MUX mode for recording type.
MUX Recording records full size recording sequentially from each channel.
Quad recording records 4 channel video signal as one same picture and each channel has
quad sliced size.
Under MUX Recording mode, resolution will be applicable to all channel. Picture quality,
recording time, and recording mode can be selected channel by channel.
Under QUAD Recording mode, Resolution, picture quality, and recording rate will be applied
to all channel equally.
3.2.2 MUX
Type

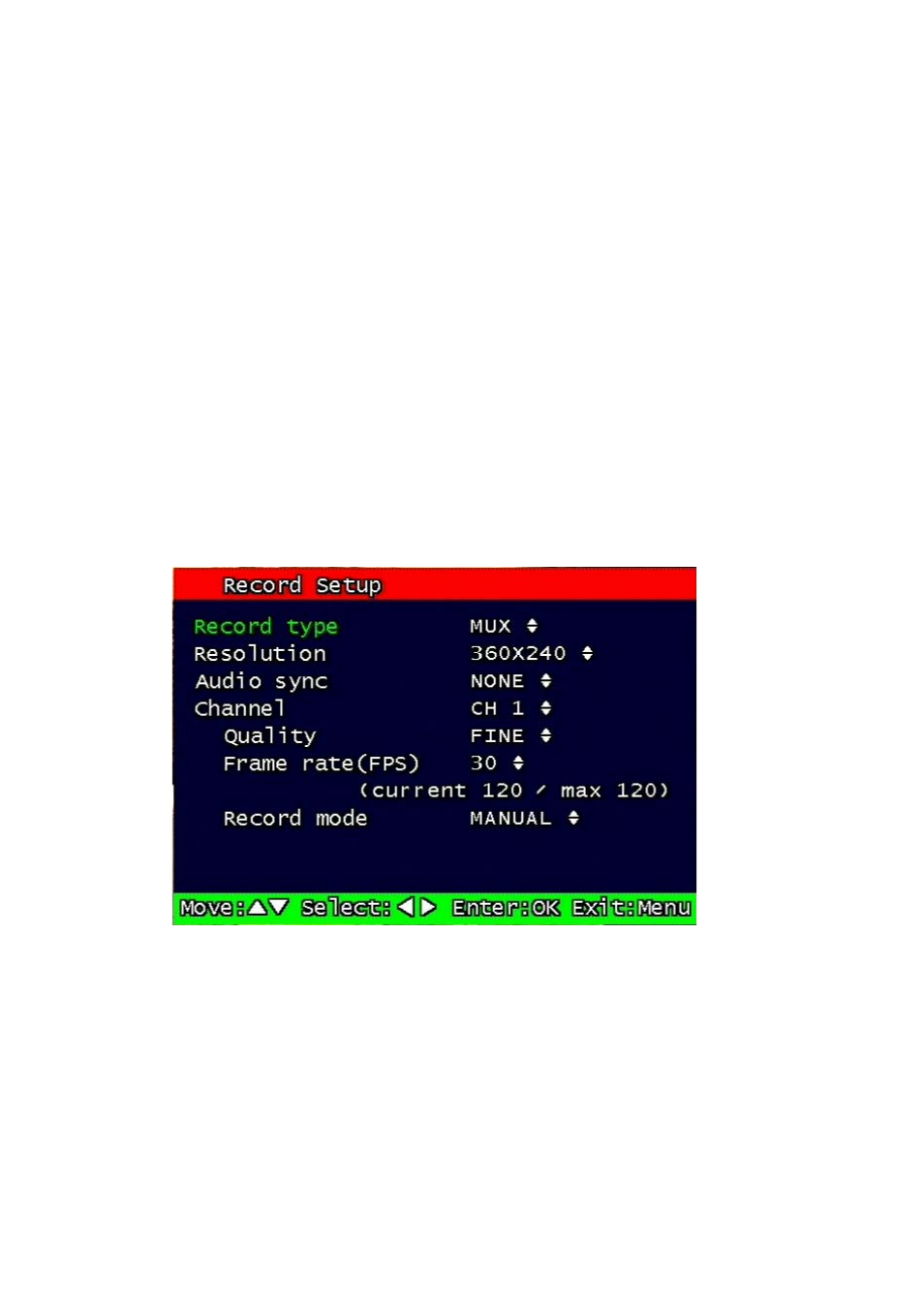

Figure 3-7 MUX Record setup screen
3.2.2.1 Resolution
Under MUX Recording mode, Resolution for NTSC is “360 x 240” or “720 x 480”. PAL is
“360 x 288” or “720 x 576” selectable and selected resolution will be applicable to four
channels simultaneously.
