• 5 •
7. GROUNDING AND AC POWER CORD CONNECTIONS
WARNING RISK OF ELECTRIC SHOCK OR FIRE.
7.1 This battery charger is for use on a nominal 230V, 50 Hz circuit. (See the warning
label on the charger for the correct input voltage.) The plug must be plugged into
an outlet that is properly installed and grounded in accordance with all local codes
and ordinances. The plug pins must fit the receptacle (outlet). Do not use with an
ungrounded system.
7.2
DANGER
Never alter the AC cord or plug provided – if it does not fit the outlet, have
a proper grounded outlet installed by a qualified electrician. An improper connection can
result in a risk of an electric shock or electrocution.
7.3 Recommended minimum AWG size for extension cord:
• 100 feet (30.5 meters) long or less – use a 10 gauge (6 mm 2 ) extension cord.
• Over 100 feet (30.5 meters) long – use an 8 gauge (10 mm 2 ) extension cord.

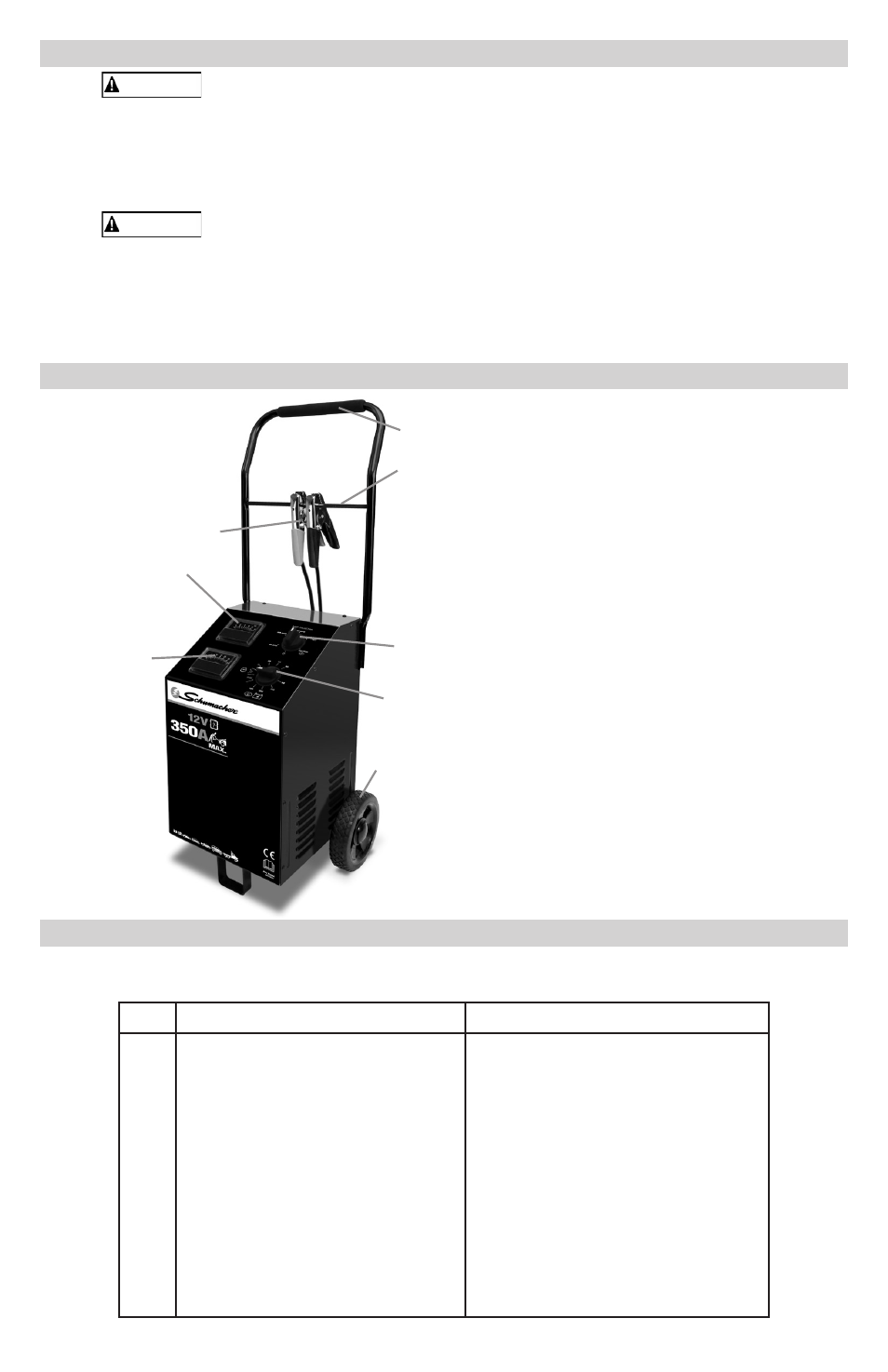

8. FEATURES
1. Ammeter
2. Voltmeter
3. Foam Grip
4. Fiberglass Clamp Rod
5. Battery Clamps
6. Charge Rate Selector Switch
7. Timer
8. Wheel
1
2
3
4
5
6
7
8
9. ASSEMBLY INSTRUCTIONS
It is important to fully assemble your charger before use. Follow these instructions
for assembly.
Item PARTS TOOLS NEEDED
1
2
3
4
5
6
7
8
9
10
11
12
(2) axle brackets
(1) axle with pin holes
(2) wheels
(2) 10-32, thread cutting screws
(2) ¼-20, thread cutting screws
(1) foot
(2) axle caps
(2) hairpin cotter
(4) 8-18 sheet metal screws
(1) handle
(1) fiberglass clamp rod
(1) foam handle grip
3/8" wrench (for mounting foot)
5/16" wrench (for mounting wheels)
1/4" wrench (for mounting handle)
hammer
screwdriver (flat blade)
screwdriver (Phillips)
